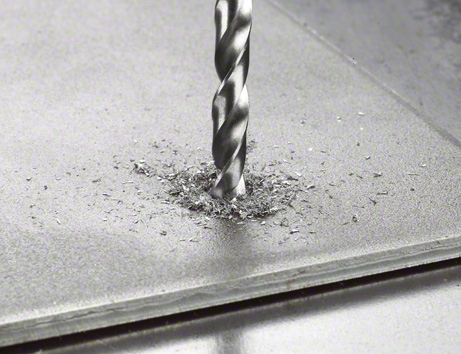

Drill bit making a hole in a metal sheet with metal shavings around the hole.
Bosch HSS-G metal drill bit 10mm DIN 338.
Bosch 10mm HSS-G metal drill bit.
Drill bit making a hole in a metal sheet with metal shavings around the hole.

HSS Twist Drill Bit Ground

For rotary drills/drivers

HSS Twist Drill Bit offers solid drilling for standard usage with metal
  • HSS Twist Drill Bit offers solid drilling for standard usage with metal
  • 135-degree self-centring split-point tip combines active cutting and perfect centring without wandering
  • Precision-ground bit made of HSS enables fast results
  • No need to pre-punch or pilot drill up to 10 mm-diameter
  • Manufactured to DIN 338, drill bit Type N (flute angle) with a 135-degree tip, diameter tolerance h8
  • Cylindrical shank compatible with three-jaw drill chucks
View more View less
Materials
Steel.
Cast iron.
Select options
Diameter (D) mm
Working length mm
Total length mm
Choose a pack size
Select options

Diameter (D) mm 37 options

Working length mm 18 options

Total length mm 18 options

Choose a pack size 2 options

Available product options (44)
HSS Twist Drill Bit Ground

Fits tools of most brands

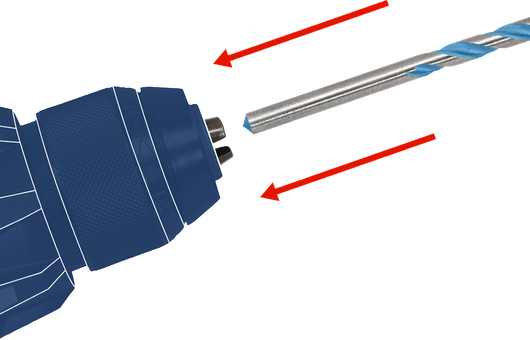

Drill bit being inserted into a power drill chuck.

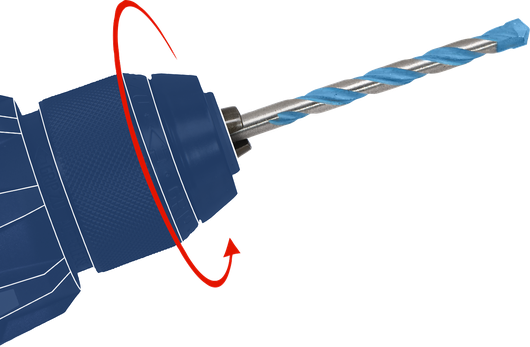

Rotating drill chuck spinning a masonry bit for drilling applications.

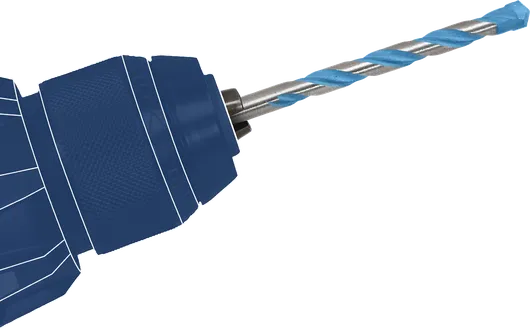

A drill chuck holds a spiral drill bit with a blue tip.

Cylindrical shank compatible with three-jaw drill chucks

Drilling with High Precision

HSS Twist Drill Bit offers solid drilling for standard usage with metal

  • Precision-ground bit made of HSS enables fast results
  • No need to pre-punch or pilot drill up to 10 mm-diameter
  • Manufactured to DIN 338, drill bit Type N (flute angle) with a 135-degree tip, diameter tolerance h8
View more

Product Options

Available product options: 44

Expand Part number Diameter (D) mm Working length mm Total length mm Shank diameter (d) mm Pack quantity Availability

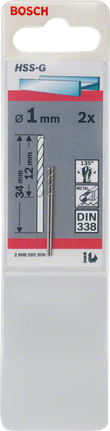

2 608 585 906 1=00 12 34 - 2 Pcs Find a local dealer

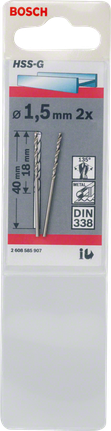

2 608 585 907 1=50 18 40 - 2 Pcs Find a local dealer

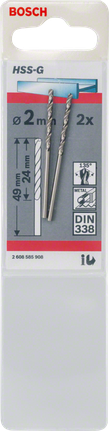

2 608 585 908 2=00 24 49 - 2 Pcs Find a local dealer

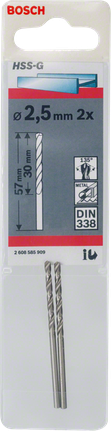

2 608 585 909 2=50 30 57 - 2 Pcs Find a local dealer

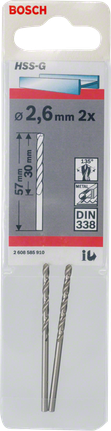

2 608 585 910 2=60 30 57 - 2 Pcs Find a local dealer

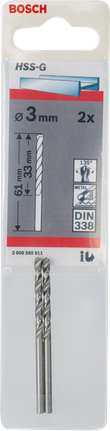

2 608 585 911 3=00 33 61 - 2 Pcs Find a local dealer

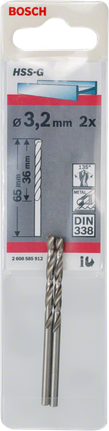

2 608 585 912 3=20 36 65 - 2 Pcs Find a local dealer

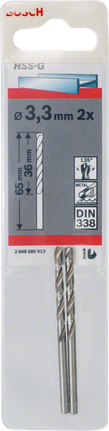

2 608 585 913 3=30 36 65 - 2 Pcs Find a local dealer

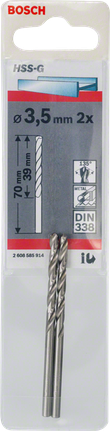

2 608 585 914 3=50 39 70 - 2 Pcs Find a local dealer

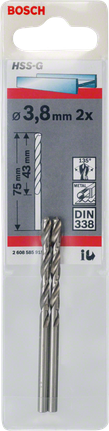

2 608 585 915 3=80 43 75 - 2 Pcs Find a local dealer

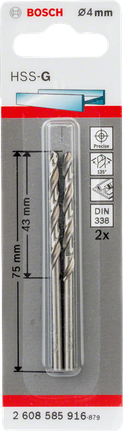

2 608 585 916 4=00 43 75 - 2 Pcs Find a local dealer

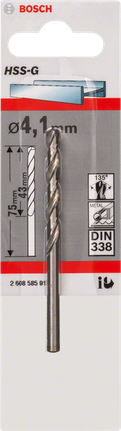

2 608 585 917 4=10 43 75 - 1 Pcs Find a local dealer

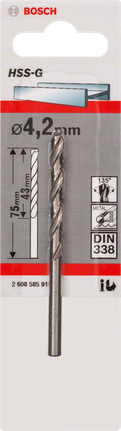

2 608 585 918 4=20 43 75 - 1 Pcs Find a local dealer

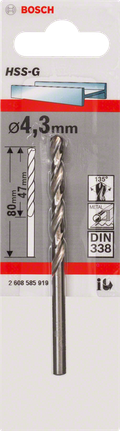

2 608 585 919 4=30 47 80 - 1 Pcs Find a local dealer

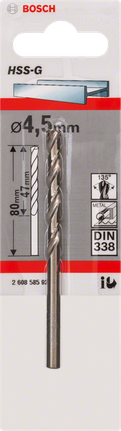

2 608 585 920 4=50 47 80 - 1 Pcs Find a local dealer

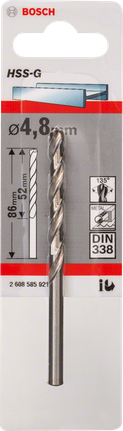

2 608 585 921 4=80 52 86 - 1 Pcs Find a local dealer

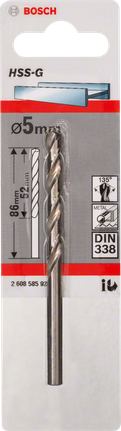

2 608 585 922 5=00 52 86 - 1 Pcs Find a local dealer

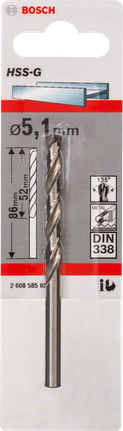

2 608 585 923 5=10 52 86 - 1 Pcs Find a local dealer

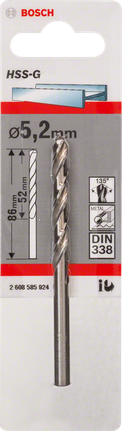

2 608 585 924 5=20 52 86 - 1 Pcs Find a local dealer

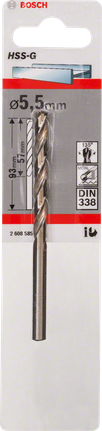

2 608 585 925 5=50 57 93 - 1 Pcs Find a local dealer
2 608 585 926 6=00 57 93 - 1 Pcs Find a local dealer

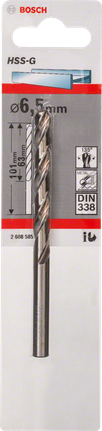

2 608 585 927 6=50 63 101 - 1 Pcs Find a local dealer

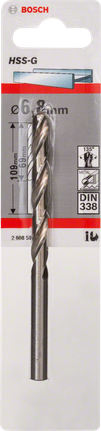

2 608 585 928 6=80 69 109 - 1 Pcs Find a local dealer

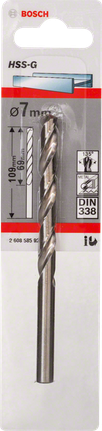

2 608 585 929 7=00 69 109 - 1 Pcs Find a local dealer

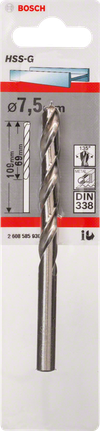

2 608 585 930 7=50 69 109 - 1 Pcs Find a local dealer

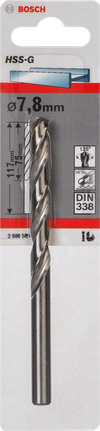

2 608 585 931 7=80 75 117 - 1 Pcs Find a local dealer

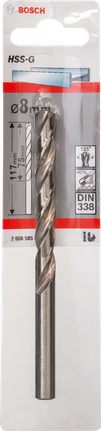

2 608 585 932 8=00 75 117 - 1 Pcs Find a local dealer

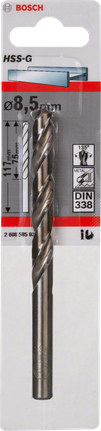

2 608 585 933 8=50 75 117 - 1 Pcs Find a local dealer
2 608 585 934 9=00 81 125 - 1 Pcs Find a local dealer
2 608 585 935 9=50 81 125 - 1 Pcs Find a local dealer

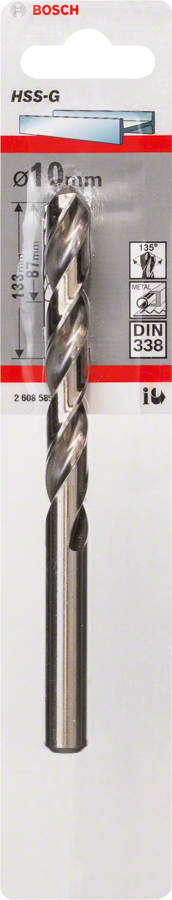

2 608 585 936 10=00 87 133 - 1 Pcs Find a local dealer
2 608 585 937 10=50 87 133 - 1 Pcs Find a local dealer
2 608 585 938 11=00 94 142 - 1 Pcs Find a local dealer
2 608 585 939 11=50 94 142 - 1 Pcs Find a local dealer
2 608 585 940 12=00 101 151 - 1 Pcs Find a local dealer
2 608 585 941 12=50 101 151 - 1 Pcs Find a local dealer
2 608 585 942 13=00 101 151 - 1 Pcs Find a local dealer
2 608 595 024 4=00 43 75 4 1 Pcs Find a local dealer
2 608 595 027 5=00 52 86 5 1 Pcs Find a local dealer
2 608 595 033 6=50 63 101 6=5 1 Pcs Find a local dealer
2 608 595 037 8=00 75 117 8 1 Pcs Find a local dealer
2 608 595 042 10=00 87 133 10 1 Pcs Find a local dealer
2 608 595 048 13=00 101 151 13 1 Pcs Find a local dealer
2 608 595 086 3=00 33 61 3 2 Pcs Find a local dealer
