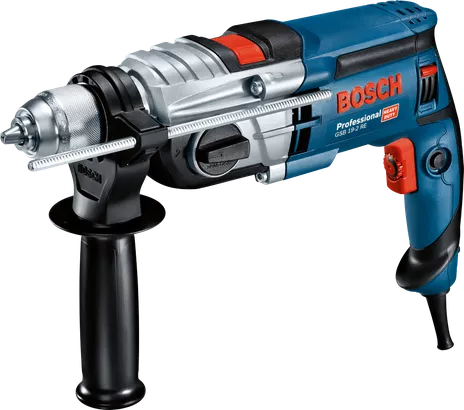

Impact Drill
Your Selection
Order number: 0 601 17B 500

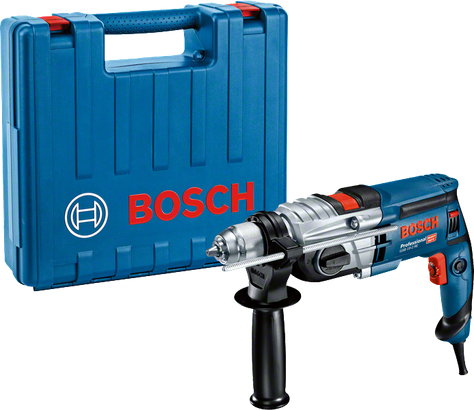

Find a local dealerThis product includes
Show less
Show more
Additional data |
|
---|---|
Rated input power | 850 |
Weight | 2.6 |
No-load speed, 1st gear | 0 – 1.000 rpm |
No-load speed, 2nd gear | 3.000 rpm |
Power output | 430 |
Rated speed | 800 / 2.060 rpm |
Rated torque | 5=2 / 2=0 Nm |
Drill spindle connecting thread | 1/2"-20 UNF |
Chuck capacity, min./max. | 1=5 – 13 mm |
Impact rate at no-load speed | 0 – 17.000 / 51.000 bpm |
Max. torque | 36=0 / 15=5 Nm |
Drilling range |
|
---|---|
Drilling diameter in wood | 40 / 25 mm |
Drilling diameter in steel | 13 / 8 mm |
Drilling dia. in stone | 20 / 15 mm |
Drilling diameter in masonry | 20 / 15 mm |
Total vibration values (Drilling in metal) |
|
---|---|
Vibration emission value ah | 3 |
Uncertainty K | 1.5 |
Total vibration values (Impact drilling in concrete) |
|
---|---|
Vibration emission value ah | 15 |
Uncertainty K | 2 |
Total vibration values (Screwdriving) |
|
---|---|
Vibration emission value ah | 2.5 |
Uncertainty K | 1.5 |
Noise/vibration information |
|
---|---|
Sound pressure level | 99 dB(A) |
Sound power level | 110 dB(A) |
Uncertainty K | 5 dB |
Drilling in metal |
|
---|---|
Vibration emission value ah | 3 m/s² |
Uncertainty K | 1.5 m/s² |
Impact drilling in concrete |
|
---|---|
Vibration emission value ah | 15 m/s² |
Uncertainty K | 2 m/s² |
Screwdriving |
|
---|---|
Vibration emission value ah | 2.5 m/s² |
Uncertainty K | 1.5 m/s² |
Thread cutting |
|
---|---|
Vibration emission value ah | 2.5 m/s² |
Uncertainty K | 1.5 m/s² |
The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.
