Masonry & Concrete Drill Bits

SDS plus-5X Drill Bit

For rotary hammer drills

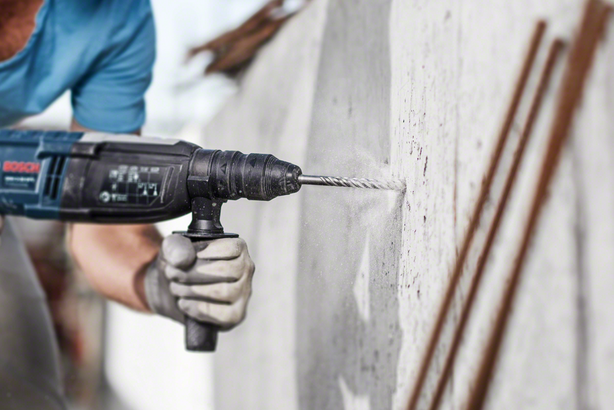

SDS plus-5X Drill Bit offers highly efficient drilling in reinforced concrete

  • Geometrical form of the 4-cutter head prevents jamming and breakage for optimal results
  • “Turn-angle” head and 4-flute design provide fast dust removal for increased drilling speeds and reduced wear
  • Fits all SDS plus rotary hammer drills.

Materials

Reinforced concrete
Concrete
Lime and sand bricks
Solid brick
Hard stone

Select options

Diameter (D) mm

Working length (L1) mm

Total length (L2) mm

Choose a pack size

Select options

Diameter (D) mm 20 options

Working length (L1) mm 8 options

Total length (L2) mm 12 options

Choose a pack size 2 options

Available product options (69)
SDS plus-5X Drill Bit
For rotary hammer drills

Fits tools of most brands

imageAlt
imageAlt
imageAlt

Fits all SDS plus rotary hammer drills.

Efficient Drilling in Reinforced Concrete

SDS plus-5X Drill Bit offers highly efficient drilling in reinforced concrete

  • “Turn-angle” head and 4-flute design provide fast dust removal for increased drilling speeds and reduced wear
  • Centring tip guides drilling from the start for efficient work and exact hole diameters
  • PGM guarantee in compliance with tight tolerances, exactly drilled holes and firm hold of fixings
View more

Product Options

Available product options: 69

Part number Diameter (D) mm Working length (L1) mm Total length (L2) mm Pack quantity
2 608 833 771 5=00 50 110 1 Pcs Find a local dealer
2 608 833 772 5=00 100 160 1 Pcs Find a local dealer
2 608 833 773 5=00 150 210 1 Pcs Find a local dealer
2 608 833 777 6=00 50 110 1 Pcs Find a local dealer
2 608 833 778 6=00 100 160 1 Pcs Find a local dealer
2 608 833 779 6=00 150 210 1 Pcs Find a local dealer
2 608 833 780 6=00 200 260 1 Pcs Find a local dealer
2 608 833 785 7=00 50 110 1 Pcs Find a local dealer
2 608 833 786 7=00 100 160 1 Pcs Find a local dealer
2 608 833 788 8=00 50 110 1 Pcs Find a local dealer
2 608 833 789 8=00 100 160 1 Pcs Find a local dealer
2 608 833 790 8=00 150 210 1 Pcs Find a local dealer
2 608 833 791 8=00 200 260 1 Pcs Find a local dealer
2 608 833 792 8=00 250 310 1 Pcs Find a local dealer
2 608 833 793 8=00 300 360 1 Pcs Find a local dealer
2 608 833 794 8=00 400 460 1 Pcs Find a local dealer
2 608 833 795 9=00 100 160 1 Pcs Find a local dealer
2 608 833 797 10=00 50 110 1 Pcs Find a local dealer
2 608 833 798 10=00 100 160 1 Pcs Find a local dealer
2 608 833 799 10=00 150 210 1 Pcs Find a local dealer
2 608 833 800 10=00 200 260 1 Pcs Find a local dealer
2 608 833 801 10=00 250 310 1 Pcs Find a local dealer
2 608 833 802 10=00 300 360 1 Pcs Find a local dealer
2 608 833 803 10=00 400 460 1 Pcs Find a local dealer
2 608 833 804 11=00 100 160 1 Pcs Find a local dealer
2 608 833 807 12=00 100 160 1 Pcs Find a local dealer
2 608 833 808 12=00 150 210 1 Pcs Find a local dealer
2 608 833 809 12=00 200 260 1 Pcs Find a local dealer
2 608 833 812 12=00 400 460 1 Pcs Find a local dealer
2 608 833 813 13=00 100 160 1 Pcs Find a local dealer
2 608 833 816 14=00 100 160 1 Pcs Find a local dealer
2 608 833 817 14=00 150 210 1 Pcs Find a local dealer
2 608 833 818 14=00 200 260 1 Pcs Find a local dealer
2 608 833 819 14=00 250 310 1 Pcs Find a local dealer
2 608 833 820 14=00 300 360 1 Pcs Find a local dealer
2 608 833 821 14=00 400 460 1 Pcs Find a local dealer
2 608 833 822 15=00 100 160 1 Pcs Find a local dealer
2 608 833 823 15=00 200 260 1 Pcs Find a local dealer
2 608 833 825 16=00 150 210 1 Pcs Find a local dealer
2 608 833 826 16=00 200 260 1 Pcs Find a local dealer
2 608 833 827 16=00 250 310 1 Pcs Find a local dealer
2 608 833 828 16=00 300 360 1 Pcs Find a local dealer
2 608 833 829 16=00 400 460 1 Pcs Find a local dealer
2 608 833 889 5=00 50 110 10 Pcs Find a local dealer
2 608 833 891 6=00 50 110 10 Pcs Find a local dealer
2 608 833 892 6=00 100 160 10 Pcs Find a local dealer
2 608 833 899 8=00 100 160 10 Pcs Find a local dealer
2 608 833 902 10=00 100 160 10 Pcs Find a local dealer
2 608 833 903 10=00 150 210 10 Pcs Find a local dealer
2 608 833 905 12=00 100 160 10 Pcs Find a local dealer
2 608 833 906 12=00 150 210 10 Pcs Find a local dealer
2 608 836 628 17=00 150 210 1 Pcs Find a local dealer
2 608 836 629 17=00 250 310 1 Pcs Find a local dealer
2 608 836 631 18=00 150 200 1 Pcs Find a local dealer
2 608 836 632 18=00 250 300 1 Pcs Find a local dealer
2 608 836 633 18=00 400 450 1 Pcs Find a local dealer
2 608 836 634 18=00 550 600 1 Pcs Find a local dealer
2 608 836 637 19=00 250 300 1 Pcs Find a local dealer
2 608 836 639 20=00 150 200 1 Pcs Find a local dealer
2 608 836 640 20=00 250 300 1 Pcs Find a local dealer
2 608 836 641 20=00 400 450 1 Pcs Find a local dealer
2 608 836 644 22=00 200 250 1 Pcs Find a local dealer
2 608 836 645 22=00 400 450 1 Pcs Find a local dealer
2 608 836 647 24=00 200 250 1 Pcs Find a local dealer
2 608 836 648 24=00 400 450 1 Pcs Find a local dealer
2 608 836 649 25=00 200 250 1 Pcs Find a local dealer
2 608 836 650 25=00 400 450 1 Pcs Find a local dealer
2 608 836 651 26=00 200 250 1 Pcs Find a local dealer
2 608 836 652 26=00 400 450 1 Pcs Find a local dealer

out of products
