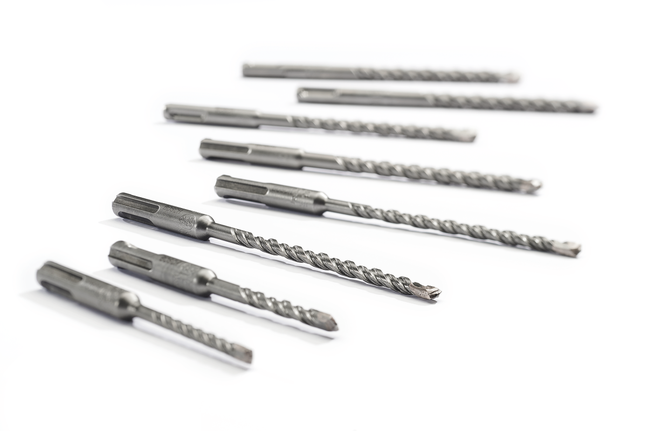

SDS plus-5 Drill Bit

For rotary hammers

Effortless Drilling in Concrete
  • SDS plus-5 Drill Bit allows for effortless drilling
  • Grooved carbide plate for smooth work without jamming
  • Activeteq centring tip offers drill guidance for easy starts without jarring or wandering
  • AWB brazing and hardening technology reduces vibration and strain on the user
  • Wear mark for accurate drill hole diameter. PGM-certified quality. Made in Germany
  • Fits all SDS plus rotary hammers
View more
Materials
Concrete
Lime and sand bricks
Solid brick
Concrete building block
Hard stone

Select options

Diameter (D) mm

Working length mm

Total length mm

Choose a pack size

Selected variant

Available product options(34)
SDS plus-5 Drill Bit

Fits tools of most brands

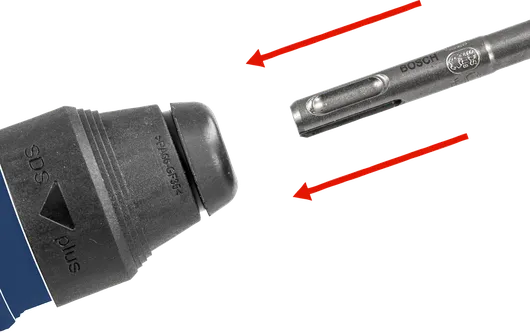

Drill bit positioned near a power tool chuck, ready for attachment.

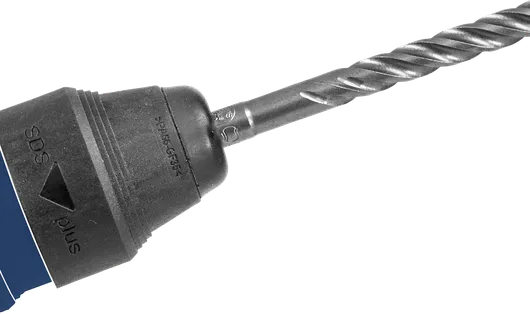

Rotary hammer drill bit attached to a chuck for heavy-duty drilling tasks.
Rotary hammer drill with a spiral bit fitted in the chuck.

Fits all SDS plus rotary hammers

Product Options

Available product options: 34

Expand Part number Diameter (D) mm Working length mm Total length mm Pack quantity Price Availability
1 618 596 164 5.00 50 115 1 Pcs Find a local dealer
1 618 596 166 6.00 50 115 1 Pcs Find a local dealer
1 618 596 167 6.00 100 165 1 Pcs Find a local dealer
1 618 596 170 7.00 50 115 1 Pcs Find a local dealer
1 618 596 172 8.00 50 115 1 Pcs Find a local dealer
1 618 596 173 8.00 100 165 1 Pcs Find a local dealer
1 618 596 174 8.00 150 215 1 Pcs Find a local dealer
1 618 596 176 10.00 50 115 1 Pcs Find a local dealer
1 618 596 177 10.00 100 165 1 Pcs Find a local dealer
1 618 596 178 10.00 200 265 1 Pcs Find a local dealer
1 618 596 181 12.00 100 165 1 Pcs Find a local dealer
1 618 596 182 12.00 200 265 1 Pcs Find a local dealer
1 618 596 185 14.00 100 165 1 Pcs Find a local dealer
1 618 596 186 14.00 200 265 1 Pcs Find a local dealer
1 618 596 204 18.00 150 200 1 Pcs Find a local dealer
1 618 596 207 20.00 150 200 1 Pcs Find a local dealer
1 618 596 231 4.00 50 115 1 Pcs Find a local dealer
1 618 596 232 22.00 200 250 1 Pcs Find a local dealer
1 618 596 236 24.00 200 250 1 Pcs Find a local dealer
1 618 596 238 25.00 200 250 1 Pcs Find a local dealer
1 618 596 262 20.00 250 300 1 Pcs Find a local dealer
1 618 596 265 10.00 150 215 1 Pcs Find a local dealer
1 618 596 268 12.00 150 215 1 Pcs Find a local dealer
1 618 596 269 12.00 400 465 1 Pcs Find a local dealer
1 618 596 270 14.00 150 215 1 Pcs Find a local dealer
1 618 596 315 10.00 250 315 1 Pcs Find a local dealer
1 618 596 319 18.00 250 300 1 Pcs Find a local dealer
2 608 585 617 6.00 100 165 10 Pcs Find a local dealer
2 608 585 623 8.00 100 165 10 Pcs Find a local dealer
2 608 585 626 10.00 100 165 10 Pcs Find a local dealer
2 608 585 629 12.00 100 165 10 Pcs Find a local dealer
2 608 596 115 6.00 150 215 1 Pcs Find a local dealer
2 608 596 185 16.00 150 215 1 Pcs Find a local dealer
2 608 596 186 16.00 250 315 1 Pcs Find a local dealer
