PRO Multi Material Circular Saw Blade
For corded handheld circular saws
Order number 2 608 642 197
- Long Life cutting various materials
- Ground and sharpened fine carbide teeth for strength, durability and precision
- Expansion slots reduce heat for a longer lifetime
- Bore works with or without reduction rings to fit different sizes

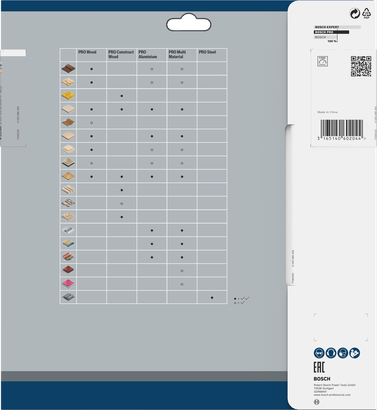

Materials
Select options
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size

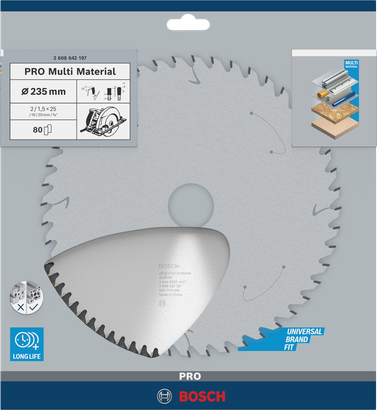

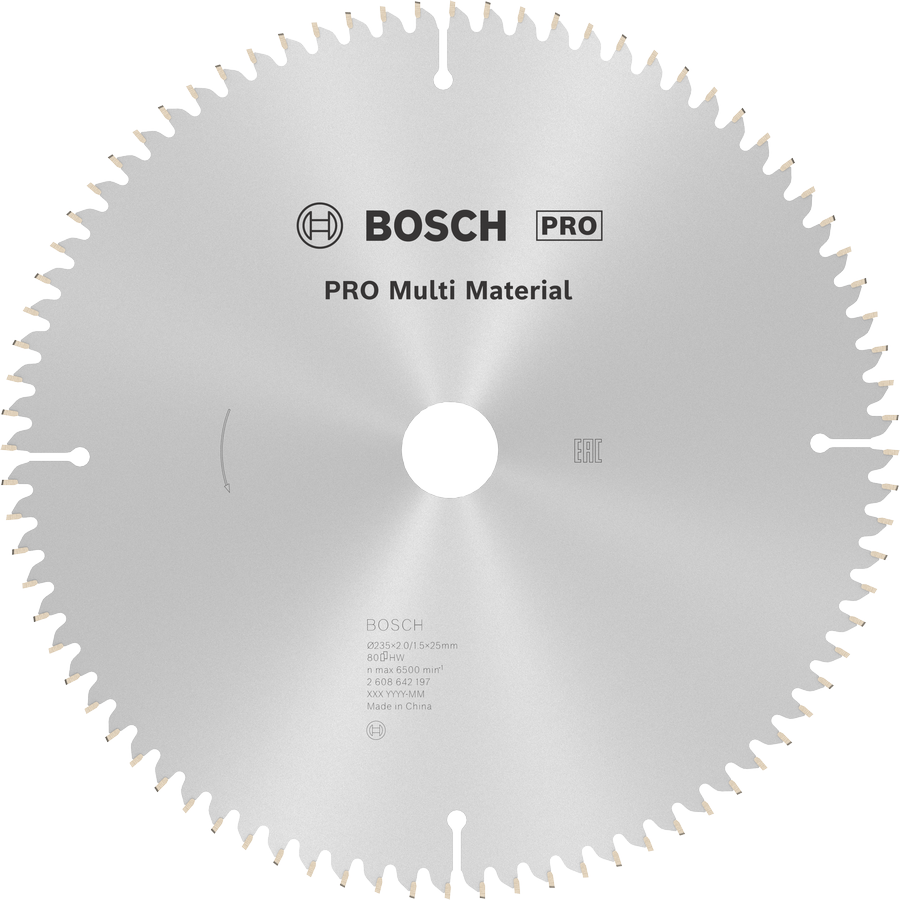

PRO Multi Material Circular Saw Blade, 235 x 2 x 25 mm
2 608 642 197
-
1
Ground and sharpened fine carbide teeth for strength, durability and precision
-
2
Expansion slots reduce heat for a longer lifetime
Advantage

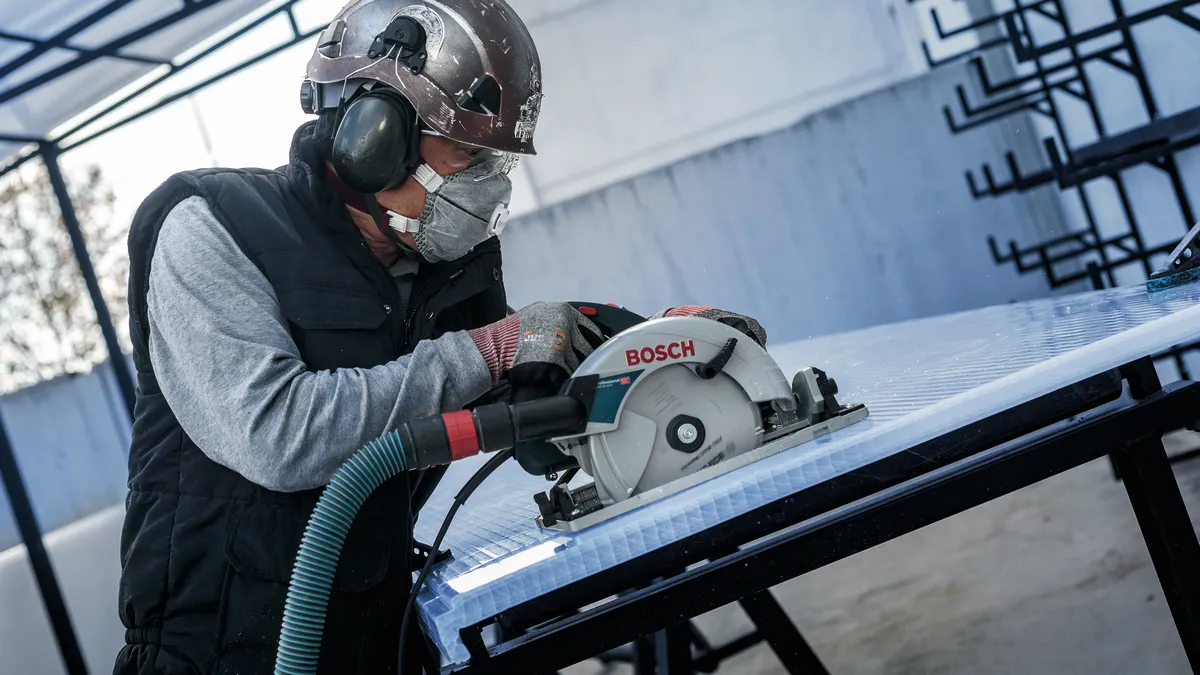

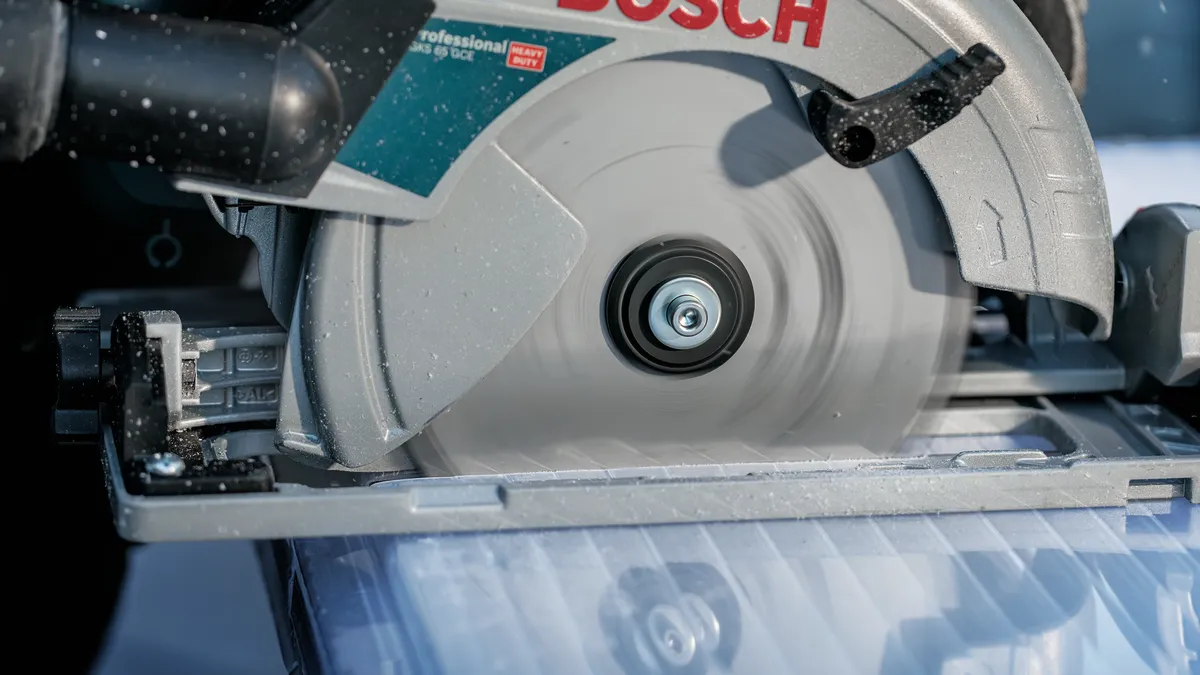

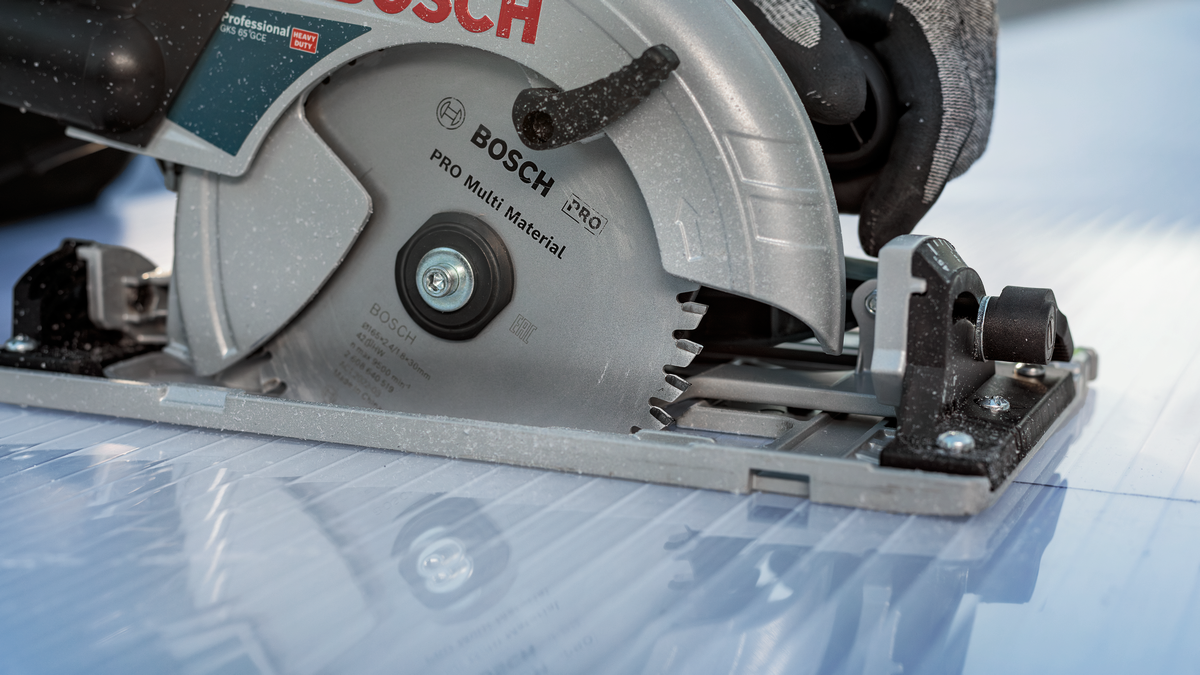

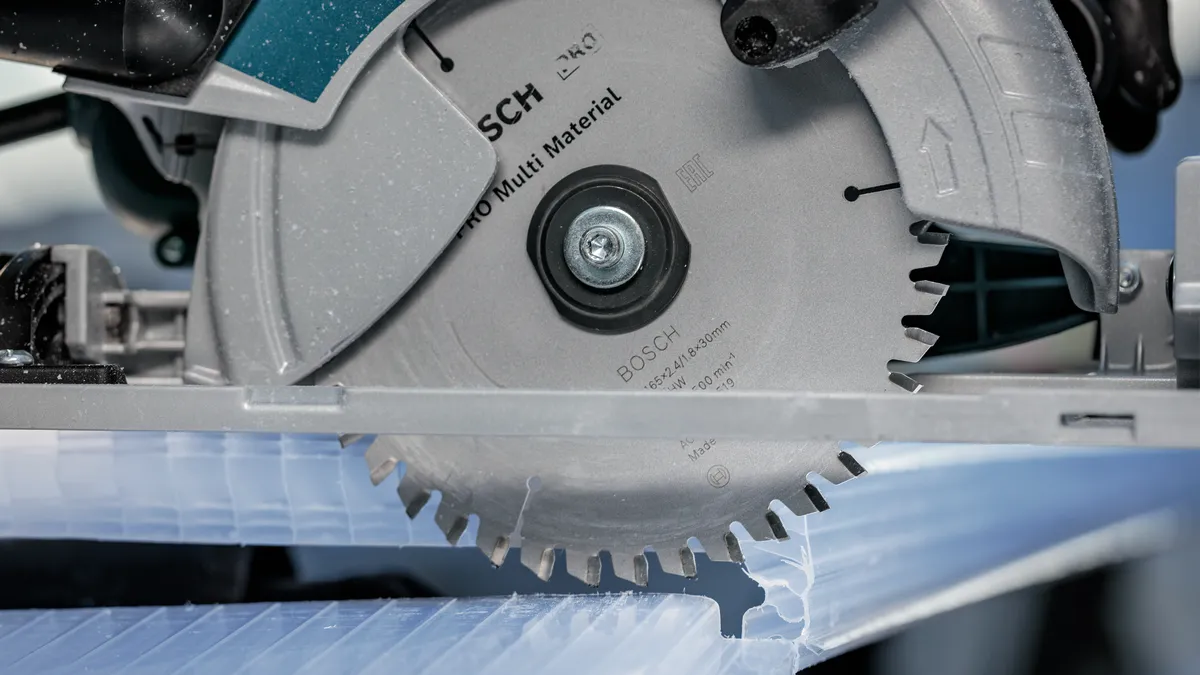

PRO Multi Material for Long Life Cutting Various Materials
PRO Multi Material for Long Life Cutting Various Materials
Product Options
Available product options: 10
Expand
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Bore with reduction ring mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Pack quantity
|
Availability
|
|---|---|---|---|---|---|---|---|
| 2 608 640 503 | 160 | 20 | 16 | 2.4/1.8 | 1 Pcs | Find a local dealer | |
| 2 608 640 507 | 180 | 30 | 20 | 2.4/1.8 | 1 Pcs | Find a local dealer | |
| 2 608 640 508 | 190 | 20 | 16 | 2.4/1.8 | 1 Pcs | Find a local dealer | |
| 2 608 640 509 | 190 | 30 | - | 2.4/1.8 | 1 Pcs | Find a local dealer | |
| 2 608 640 510 | 200 | 30 | - | 2.4/1.8 | 1 Pcs | Find a local dealer | |
| 2 608 640 511 | 210 | 30 | - | 2.4/1.8 | 1 Pcs | Find a local dealer | |
| 2 608 640 513 | 230 | 30 | - | 2.4/1.8 | 1 Pcs | Find a local dealer | |
| 2 608 640 514 | 235 | 30 | 25 | 2.4/1.8 | 1 Pcs | Find a local dealer | |
| 2 608 642 193 | 184 | 20 | 16 | 2/1.5 | 1 Pcs | Find a local dealer | |
| 2 608 642 197 | 235 | 25 | 16; 20 | 2/1.5 | 1 Pcs | Find a local dealer |
out of products
PRO Multi Material Circular Saw Blade, 160 x 2.4 x 20 mm
Part number 2608640503
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
160
Bore size mm
20
Bore with reduction ring mm
16
Width of cut (b1) mm / Base bl. thickness (b2) mm
2.4/1.8
Number of teeth
42
Tooth shape
HLTCG
Max. rotation speed (RPM)
9500
Cutting result
Fine Cut
Hook angle ° α
-5
Relief angle ° β
15
PRO Multi Material Circular Saw Blade, 180 x 2.4 x 30 mm
Part number 2608640507
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
180
Bore size mm
30
Bore with reduction ring mm
20
Width of cut (b1) mm / Base bl. thickness (b2) mm
2.4/1.8
Number of teeth
48
Tooth shape
HLTCG
Max. rotation speed (RPM)
8500
Cutting result
Fine Cut
Hook angle ° α
-5
Relief angle ° β
15
PRO Multi Material Circular Saw Blade, 190 x 2.4 x 20 mm
Part number 2608640508
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
190
Bore size mm
20
Bore with reduction ring mm
16
Width of cut (b1) mm / Base bl. thickness (b2) mm
2.4/1.8
Number of teeth
54
Tooth shape
HLTCG
Max. rotation speed (RPM)
8000
Cutting result
Fine Cut
Hook angle ° α
-5
Relief angle ° β
15
Outer diameter inch
7 1/2
PRO Multi Material Circular Saw Blade, 190 x 2.4 x 30 mm
Part number 2608640509
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
190
Bore size mm
30
Bore with reduction ring mm
-
Width of cut (b1) mm / Base bl. thickness (b2) mm
2.4/1.8
Number of teeth
54
Tooth shape
HLTCG
Max. rotation speed (RPM)
8000
Cutting result
Fine Cut
Hook angle ° α
-5
Relief angle ° β
15
Outer diameter inch
7 1/2
PRO Multi Material Circular Saw Blade, 200 x 2.4 x 30 mm
Part number 2608640510
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
200
Bore size mm
30
Bore with reduction ring mm
-
Width of cut (b1) mm / Base bl. thickness (b2) mm
2.4/1.8
Number of teeth
54
Tooth shape
HLTCG
Max. rotation speed (RPM)
7500
Cutting result
Fine Cut
Hook angle ° α
-5
Relief angle ° β
15
PRO Multi Material Circular Saw Blade, 210 x 2.4 x 30 mm
Part number 2608640511
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
210
Bore size mm
30
Bore with reduction ring mm
-
Width of cut (b1) mm / Base bl. thickness (b2) mm
2.4/1.8
Number of teeth
54
Tooth shape
HLTCG
Max. rotation speed (RPM)
7000
Cutting result
Fine Cut
Hook angle ° α
-5
Relief angle ° β
15
Outer diameter inch
8 1/4
PRO Multi Material Circular Saw Blade, 230 x 2.4 x 30 mm
Part number 2608640513
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
230
Bore size mm
30
Bore with reduction ring mm
-
Width of cut (b1) mm / Base bl. thickness (b2) mm
2.4/1.8
Number of teeth
64
Tooth shape
HLTCG
Max. rotation speed (RPM)
6500
Cutting result
Fine Cut
Hook angle ° α
-5
Relief angle ° β
15
Outer diameter inch
9
PRO Multi Material Circular Saw Blade, 235 x 2.4 x 30 mm
Part number 2608640514
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
235
Bore size mm
30
Bore with reduction ring mm
25
Width of cut (b1) mm / Base bl. thickness (b2) mm
2.4/1.8
Number of teeth
64
Tooth shape
HLTCG
Max. rotation speed (RPM)
6500
Cutting result
Fine Cut
Hook angle ° α
-5
Relief angle ° β
15
Outer diameter inch
9 1/4
PRO Multi Material Circular Saw Blade, 184 x 2 x 20 mm
Part number 2608642193
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
184
Bore size mm
20
Bore with reduction ring mm
16
Width of cut (b1) mm / Base bl. thickness (b2) mm
2/1.5
Number of teeth
60
Tooth shape
TCG
Max. rotation speed (RPM)
8000
Cutting result
Fine Cut
Hook angle ° α
-5
Relief angle ° β
15
Outer diameter inch
7 1/4
Bore with reduction ring inch
5/8

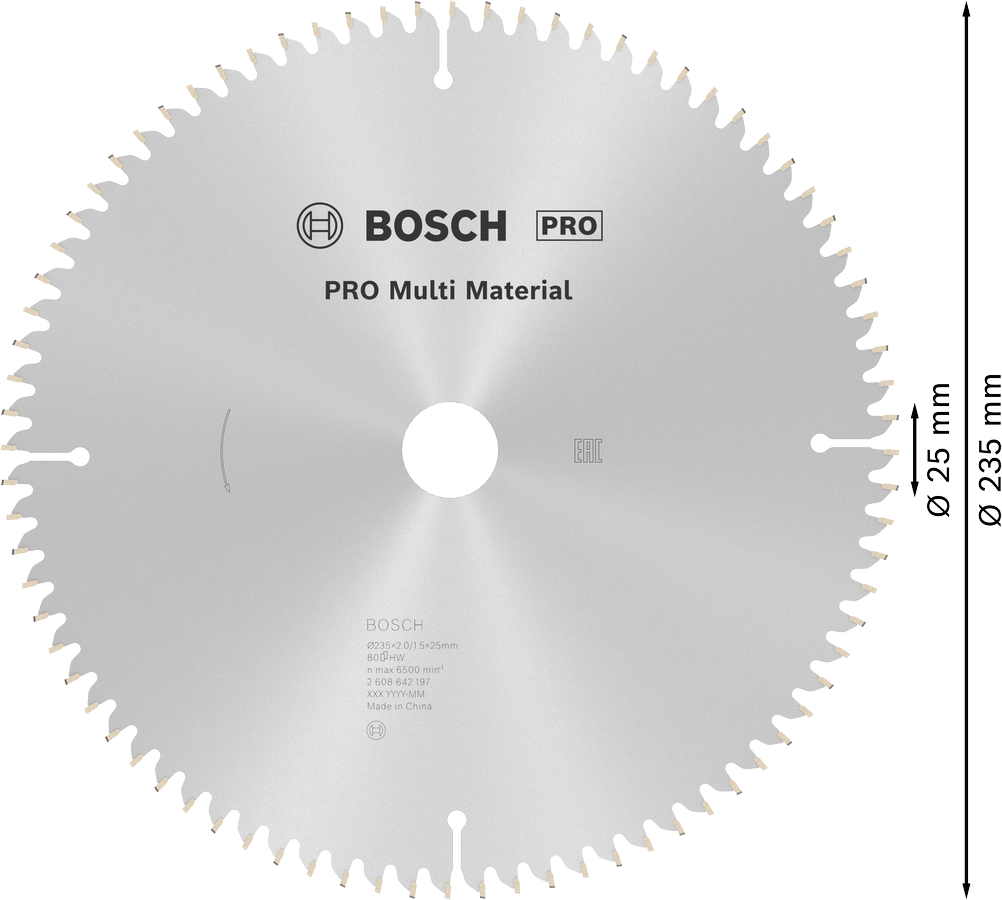

PRO Multi Material Circular Saw Blade, 235 x 2 x 25 mm
Part number 2608642197
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
235
Bore size mm
25
Bore with reduction ring mm
16 / 20
Width of cut (b1) mm / Base bl. thickness (b2) mm
2/1.5
Number of teeth
80
Tooth shape
TCG
Max. rotation speed (RPM)
6500
Cutting result
Fine Cut
Hook angle ° α
-5
Relief angle ° β
15
Outer diameter inch
9 1/4
Bore with reduction ring inch
5/8
