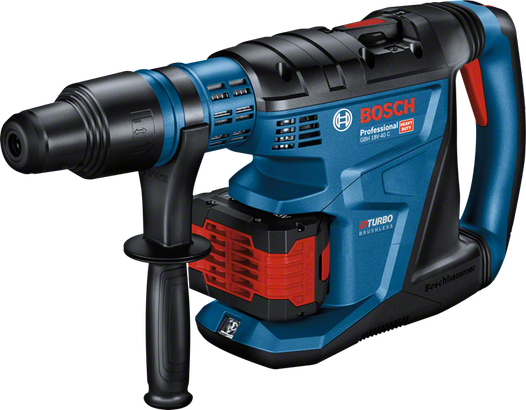

GBH 18V-40 C Professional

Name: GBH 18V-40 C
Brand: Bosch power tools
SKU: 0611917120
Availability: InStock

Cordless Rotary Hammer BITURBO with SDS max

Cordless freedom with corded performance - SDS-max all-rounder for concrete chiselling and drilling up to 40mm

BITURBO Brushless technology with ProCORE18V for corded performance providing powerful 9.0 J impact energy
Optimal power-to-weight ratio due to an improved impact mechanism and highly capable drive train
Minimised hand and arm injuries by instantly shutting down the rotary hammer thanks to KickBack Control

Functions & key features

Your Selection

in XL-BOXX with accessory set

Show variant

Check availability on location

Find a local dealer

Your Selected Variant

in XL-BOXX with accessory set 0 611 917 120

Find a local dealer

GBH 18V-40 C Professional

Your Selection

in XL-BOXX with accessory set

Order number: 0 611 917 120

Find a local dealer

Included in this variant

XL-BOXX

Order number: 1 605 438 1JH
Grease tube (spare part number 1 615 430 010)
Machine cloth

Your selection

Technical data

Additional data
Battery voltage	18.0 V
Impact energy (according to EPTA 05/2016)	9 J
Impact rate at rated speed	0 – 3,130 bpm
Rated speed	0 – 360 rpm
Weight excl. battery	7 kg
Tool holder	SDS max

Drilling range
Drilling dia. in concrete with hammer drill bits	12 – 40 mm
Opt. app. range in concrete with hammer drill bits	18 – 32 mm

Total vibration values (Hammer drilling in concrete)
Vibration emission value ah	7.5 m/s²
Uncertainty K	1.5 m/s²

Total vibration values (Chiselling in concrete)
Vibration emission value ah	7 m/s²
Uncertainty K	1.5 m/s²

Noise/vibration information
Sound pressure level	93 dB(A)
Sound power level	104 dB(A)
Uncertainty K	4 dB

Hammer drilling in concrete
Vibration emission value ah	7.5 m/s²
Uncertainty K	1.5 m/s²

Chiselling in concrete
Vibration emission value ah	7 m/s²
Uncertainty K	1.5 m/s²

GBH 18V-40 C Professional: Further information

Product Highlights

The GBH 18V-40 C Professional offers corded performance thanks to its BITURBO Brushless technology providing powerful 9.0 J impact energy. Cordless freedom with ProCORE18V batteries allows fast drilling up to 40 mm chisel works even in tough environments. It provides an optimal power-to-weight ratio due to an improved impact mechanism and highly capable drive train. In addition to the overload clutch the GBH 18V-40 C offers KickBack Control, which senses sudden loss of tool control. In case of e.g. a canted drill it instantly shuts the cordless rotary hammer down in order to minimise hand and arm injuries.

Equipment & Application

The GBH 18V-40 C Professional is compatible with all Bosch Professional 18V batteries and chargers (Professional 18V system). To reach the maximum power in concrete, stone, and masonry, choose a ProCORE18V battery ≥ 5.5 Ah.
