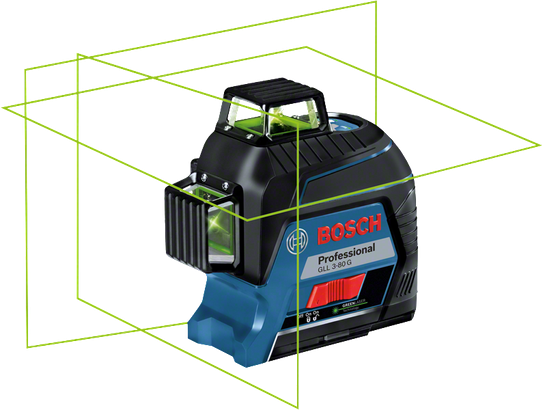

Line Laser GLL 3-80 G Professional

3 x 360° bold green lines for optimal visibility

Technical data
Additional data
Working range* up to 30   m
Working range with receiver* up to 120 m
Accuracy* +/- 0.3 mm/m*/** (*for the four horizontal intersection points ; **plus use-dependent deviation)
Operating temperature -10 – 40   °C
Storage temperature -20 – 70   °C
Laser class 2
Self-levelling range ± 4°
Levelling time 4   s
Power supply 4 x 1.5 V LR6 (AA)
Tripod thread 1/4",5/8"
Weight, approx. 0.82   kg
Colour of laser line green
Projection 3 x 360° line

* Highlighted Data

Advantages

3 x 360° bold green lines for optimal visibility

  • Bright green lines provide up to four times better visibility than red lines
  • Perfect for simultaneous horizontal and vertical levelling applications thanks to three lines, for highly efficient work
  • Intuitive user interface makes it easy to operate

Functions

Icon
Icon
Icon
Icon
Icon
Icon
Icon

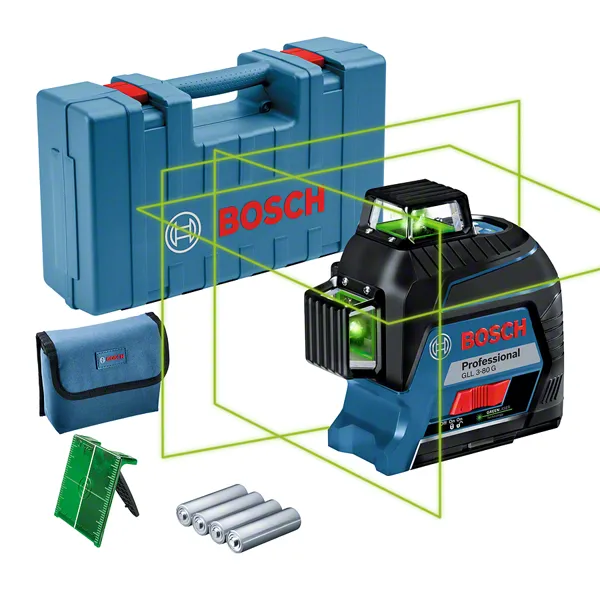

What’s Included in this Package
in carrying case with 4 x battery (AA), laser target plate
in carrying case with 4 x battery (AA), laser target plate
Order number: 0 601 063 Y00
  • 4 x 1.5 V LR6 battery (AA)
  • Laser target plate
  • Pouch
  • Carrying case
The GLL 3-80 G in action!
