Expert for Laminated Panel Table Circular Saw Blades
For vertical panel sizing saws, For corded table saws
- Perfect Reliable Cuts in Laminate Panels
- Extra Hard Dura Technology teeth are produced in-house by Bosch from highly durable carbide grains for high performance
- Anti-vibration slots for particularly smooth cutting, considerably less noise and significantly reduced vibration
- Saw blade has HLTCG teeth for robustness in abrasive materials
- Bore works with or without reduction rings to fit different sizes
Materials
Select options
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Expert for Laminated Panel Table Circular Saw Blades
Product Options
Available product options: 2
Expand
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Number of teeth
|
Pack quantity
|
Price
|
Availability
|
|---|---|---|---|---|---|---|---|---|
| 2 608 642 516 | 250 | 30 | 3.2/2.2 | 80 | 1 Pcs | Find a local dealer | ||
| 2 608 642 517 | 300 | 30 | 3.2/2.2 | 96 | 1 Pcs | Find a local dealer |
out of products

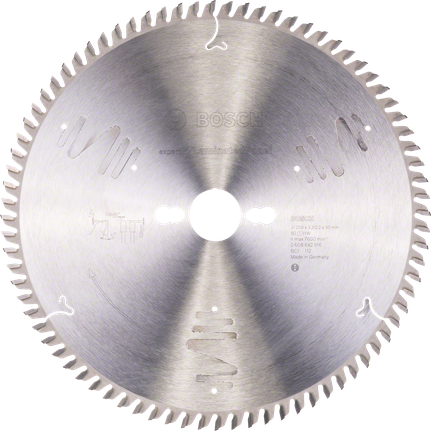

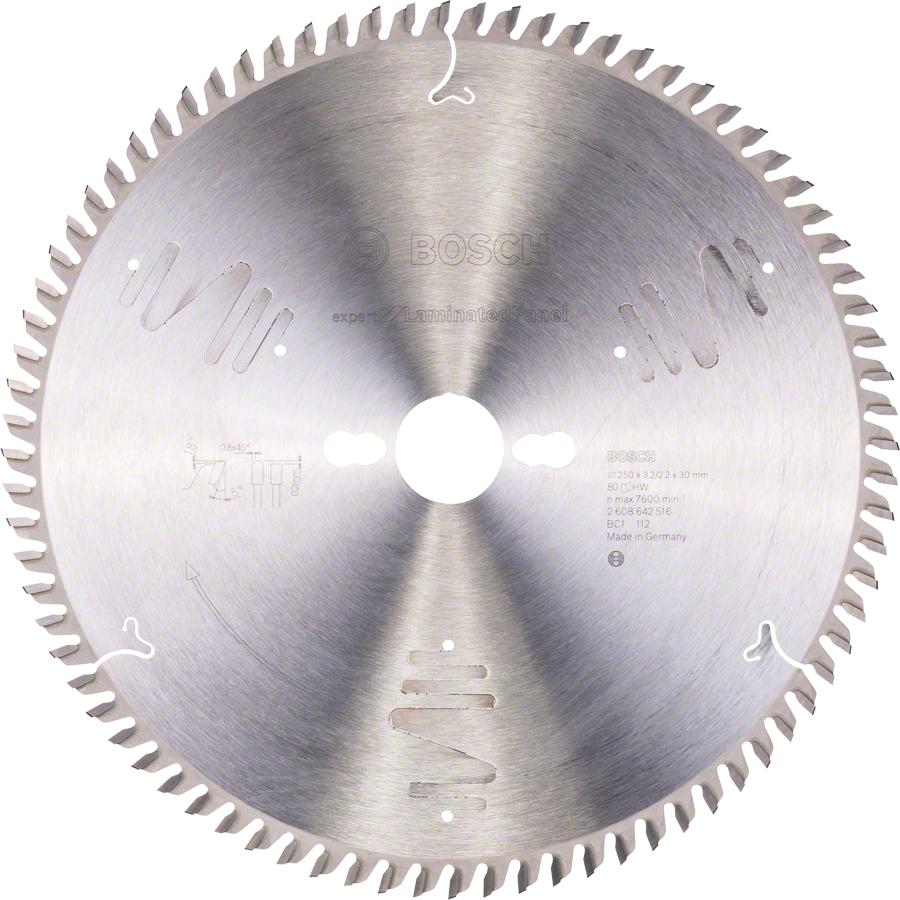

Expert for Laminated Panel circular saw blade
Part number 2608642516
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
250
Bore size mm
30
Width of cut (b1) mm / Base bl. thickness (b2) mm
3.2/2.2
Number of teeth
80
Tooth shape
HLTCG
Max. rotation speed (RPM)
7600
Cutting result
Fine Cut
Pin hole/Pitch circle diameter
2/7/42 / 2/9/46.4 / 2/10/60
Hook angle ° α
5
Relief angle ° β
18

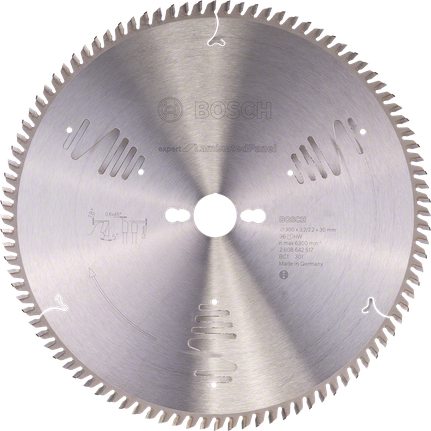

Expert for Laminated Panel circular saw blade
Part number 2608642517
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
300
Bore size mm
30
Width of cut (b1) mm / Base bl. thickness (b2) mm
3.2/2.2
Number of teeth
96
Tooth shape
HLTCG
Max. rotation speed (RPM)
6300
Cutting result
Fine Cut
Pin hole/Pitch circle diameter
2/7/42 / 2/9/46.4 / 2/10/60
Hook angle ° α
5
Relief angle ° β
18
