For table saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 3 options
Number of teeth 3 options
Width of cut (b1) mm 2 options
Choose a pack size 1 Pcs
Ground and sharpened fine carbide teeth for strength, durability and precision

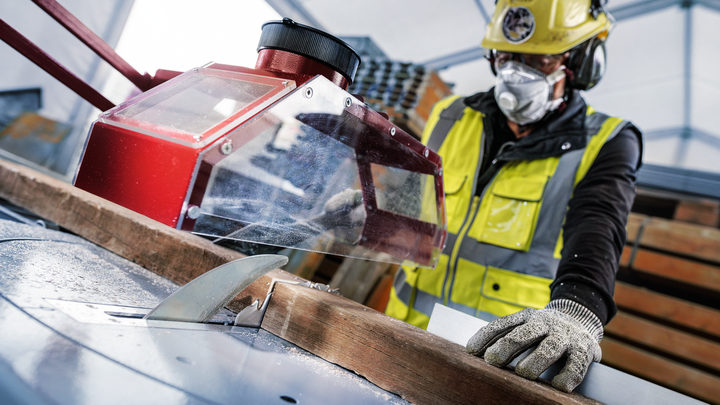

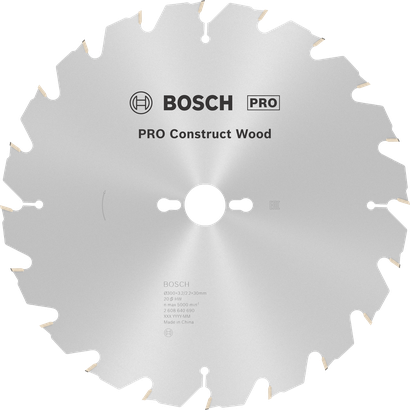

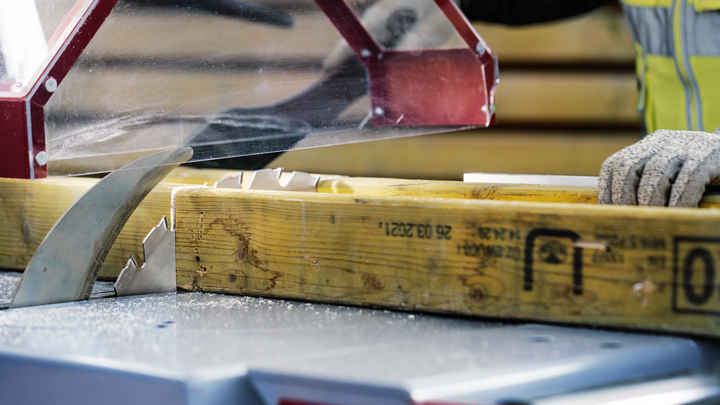

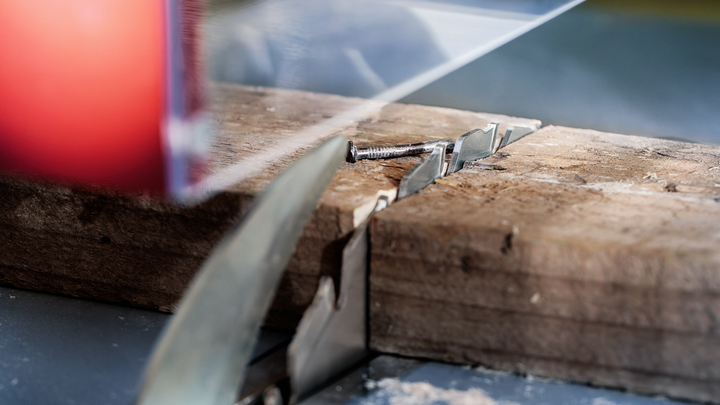

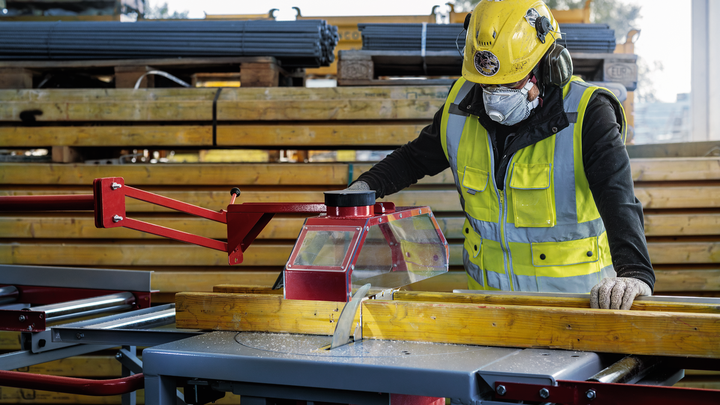

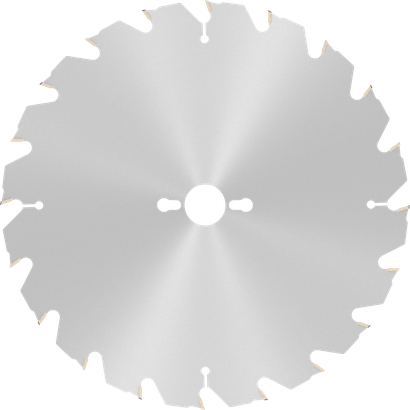

Looking for a robust circular saw blade to cut construction wood with your table saw? A blade that won’t stop when you hit a nail or concrete residue? Try the PRO Construct Wood Circular Saw Blade. We made it strong, durable, and accurate. Use it to tackle heavy-duty cutting tasks.
Available product options: 3
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Number of teeth
|
Pack quantity
|
Price
|
|
|---|---|---|---|---|---|---|---|---|
| 2 608 640 693 | 400 | 30 | 3.5/2.5 | 28 | 1 Pcs | Find a local dealer | ||
| 2 608 640 694 | 450 | 30 | 3.8/2.8 | 32 | 1 Pcs | Find a local dealer | ||
| 2 608 640 695 | 500 | 30 | 3.8/2.8 | 36 | 1 Pcs | Find a local dealer |
out of products
| Part number 2608640693 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 400 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.5/2.5 |
| Number of teeth | 28 |
| Tooth shape | HB |
| Max. rotation speed (RPM) | 4000 |
| Cutting result | Very coarse cut |
| Pin hole/Pitch circle diameter | 10/60 |
| Hook angle ° α | 15 |
| Relief angle ° β | 10 |
| Part number 2608640694 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 450 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.8/2.8 |
| Number of teeth | 32 |
| Tooth shape | HB |
| Max. rotation speed (RPM) | 3500 |
| Cutting result | Very coarse cut |
| Pin hole/Pitch circle diameter | 10/60 |
| Hook angle ° α | 14 |
| Relief angle ° β | 10 |
| Part number 2608640695 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 500 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.8/2.8 |
| Number of teeth | 36 |
| Tooth shape | HB |
| Max. rotation speed (RPM) | 3000 |
| Cutting result | Very coarse cut |
| Pin hole/Pitch circle diameter | 10/60 |
| Hook angle ° α | 14 |
| Relief angle ° β | 10 |
