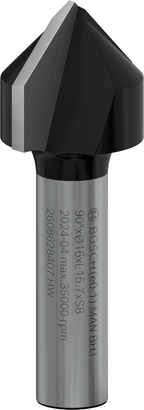

Bosch PRO Router Bit V-Groove 90°, 8 mm shank.

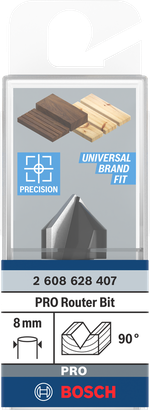

Bosch PRO Router Bit 8 mm 90°.
Bosch PRO Router Bit V-Groove 90°, 16 mm diameter.
Bosch PRO router bit V-groove 90° Ø16 8mm shank.
Router bit carving into a wooden surface on a workshop table.
Chamfer router bit standing upright on a workbench in front of a wooden block.
Person wearing safety equipment adjusts a router bit on a power tool.
Person wearing safety equipment trims wood with a power router.
Chamfer router bit resting on a wooden surface in a workshop.
Person using a router to shape the edge of a wooden board.
Wood router trimming the edge of a wooden board.

PRO Router Bit V-Groove

For hand-held routers, For trim routers

Precision.

Designed for routing wood

Test results
  • Precision cutting V-shaped grooves in wood
  • High-quality carbide cutters deliver clean and precise cuts
  • Laser markings with technical details and the minimum insertion depth indicator for easier router bit installation
  • Improved geometry of the cutting edge prevents kickback
  • Cylindrical shank compatible with routers
View more View less
Materials
Soft wood.
Hard wood.
Plywood.
Chipboard.
Select options
Angle degrees
Working length (L) mm
Shank mm
Choose a pack size
Select options

Angle degrees 90

Working length (L) mm 15.7

Shank mm 8

Choose a pack size 1 Pcs

Available product options (5)
Check availability on location Find a local dealer Check availability on location

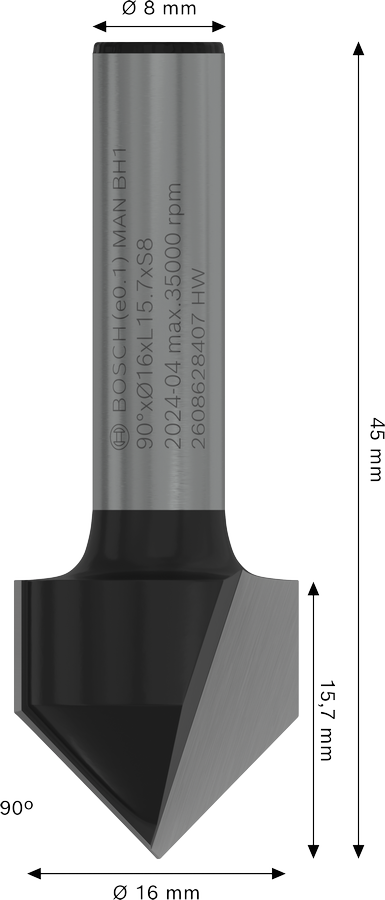

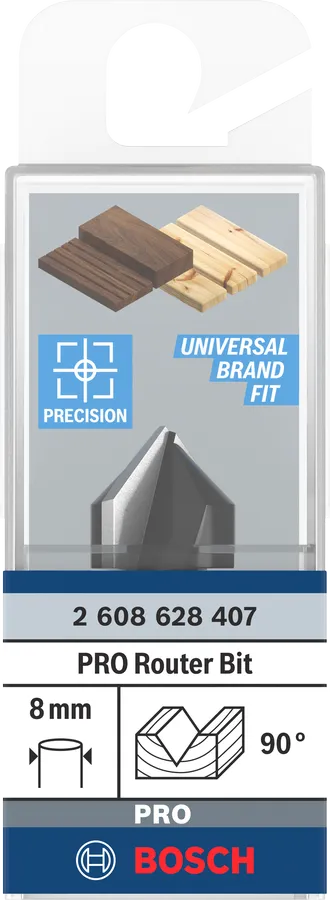

PRO Router Bit V-Groove, 90° x Ø 16, Shank 8 mm 2 608 628 407
Find a local dealer

Precision cutting V-shaped grooves in wood

Bosch countersink cutter for wood and metal.
  • 1

    High-quality carbide cutters deliver clean and precise cuts

  • 2

    Laser markings with technical details and the minimum insertion depth indicator for easier router bit installation

  • 3

    Improved geometry of the cutting edge prevents kickback

PRO Router Bit for Precision cutting V-shaped grooves in wood

When you need to cut V-shaped grooves and engraving in wood, having a sharp and long-lasting surface forming router bit makes all the difference. We made the PRO Router Bit for cabinet makers, joiners, carpenters, and other professionals working with routers to help them get precise, clean cuts in softwood, hardwood, and wood composites.

Product Options

Available product options: 5

Expand Part number Shank mm Angle degrees Diameter (D) mm Working length (L) mm Pack quantity Price Availability
2 608 628 406 8 60 11 13.7 1 Pcs Find a local dealer
2 608 628 407 8 90 16 15.7 1 Pcs Find a local dealer
2 608 628 445 6 90 6.4 9.2 1 Pcs Find a local dealer
2 608 628 446 6 90 9.5 12.4 1 Pcs Find a local dealer
2 608 628 447 6 90 12.7 12.4 1 Pcs Find a local dealer
