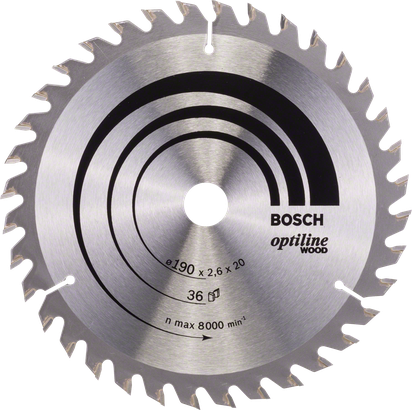

Optiline Wood Circular Saw Blade

Precise Quality Cuts in All Types of Wood

Optiline Wood Circular Saw Blade delivers precise quality cuts in all types of wood

Base blade made of dimensionally stable SK5 hardened steel (> 40 HRC) ensures accuracy
Expansion slots lower vibration during use, which dampens noise and reduces heat development
Optiline Wood Circular Saw Blades have ATB tooth geometry: high tooth count for clean results, low tooth count for solid

Available product options: 6

Part number	Outer diameter mm	Bore size mm	Width of cut (b1) mm / Base bl. thickness (b2) mm	Number of teeth	Pack quantity	Price
2 608 643 071	85	15	1.1/0.7	20	1 Pcs	3.00 OMR	Find a local dealer
2 608 640 839	110	20	2.4/1.5	20	1 Pcs	2.40 OMR	Find a local dealer
2 608 640 853	184	20	2.5/1.5	40	1 Pcs	4.20 OMR	Find a local dealer
2 608 640 854	184	20	2.5/1.5	60	1 Pcs	5.20 OMR	Find a local dealer
2 608 640 894	235	35	2.5/1.8	40	1 Pcs	6.60 OMR	Find a local dealer
2 608 640 895	235	35	2.5/1.8	60	1 Pcs	8.10 OMR	Find a local dealer

out of products

Part number 2608643071
Packaging type	Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity	1 Pcs

Details
Outer diameter mm	85
Bore size mm	15
Width of cut (b1) mm / Base bl. thickness (b2) mm	1.1/0.7
Number of teeth	20
Tooth shape	ATB
Max. rotation speed (RPM)	18000
Cutting result	Fine Cut
Hook angle ° α	15
Relief angle ° β	13

3.00 OMR Recommended retail price excluding VAT

Find a local dealer

Part number 2608640839
Packaging type	Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity	1 Pcs

Details
Outer diameter mm	110
Bore size mm	20
Width of cut (b1) mm / Base bl. thickness (b2) mm	2.4/1.5
Number of teeth	20
Tooth shape	ATB
Max. rotation speed (RPM)	13500
Cutting result	Coarse cut
Hook angle ° α	20
Relief angle ° β	10
Outer diameter inch	4 1/4
Bore with reduction ring mm	16

2.40 OMR Recommended retail price excluding VAT

Find a local dealer

Part number 2608640853
Packaging type	Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity	1 Pcs

Details
Outer diameter mm	184
Bore size mm	20
Width of cut (b1) mm / Base bl. thickness (b2) mm	2.5/1.5
Number of teeth	40
Tooth shape	ATB
Max. rotation speed (RPM)	8000
Cutting result	Fine Cut
Hook angle ° α	18
Relief angle ° β	12
Outer diameter inch	7 1/4
Bore with reduction ring mm	16 / 15.875
Bore with reduction ring inch	5/8

4.20 OMR Recommended retail price excluding VAT

Find a local dealer

Part number 2608640854
Packaging type	Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity	1 Pcs

Details
Outer diameter mm	184
Bore size mm	20
Width of cut (b1) mm / Base bl. thickness (b2) mm	2.5/1.5
Number of teeth	60
Tooth shape	ATB
Max. rotation speed (RPM)	8000
Cutting result	Fine Cut
Hook angle ° α	16
Relief angle ° β	14
Outer diameter inch	7 1/4
Bore with reduction ring mm	16 / 15.875
Bore with reduction ring inch	5/8

5.20 OMR Recommended retail price excluding VAT

Find a local dealer

Part number 2608640894
Packaging type	Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity	1 Pcs

Details
Outer diameter mm	235
Bore size mm	35
Width of cut (b1) mm / Base bl. thickness (b2) mm	2.5/1.8
Number of teeth	40
Tooth shape	ATB
Max. rotation speed (RPM)	6500
Cutting result	Fine Cut
Hook angle ° α	15
Relief angle ° β	15
Outer diameter inch	9 1/4
Bore with reduction ring mm	30 / 25.4 / 25

6.60 OMR Recommended retail price excluding VAT

Find a local dealer

Part number 2608640895
Packaging type	Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity	1 Pcs

Details
Outer diameter mm	235
Bore size mm	35
Width of cut (b1) mm / Base bl. thickness (b2) mm	2.5/1.8
Number of teeth	60
Tooth shape	ATB
Max. rotation speed (RPM)	6500
Cutting result	Fine Cut
Hook angle ° α	15
Relief angle ° β	15
Outer diameter inch	9 1/4
Bore with reduction ring mm	30 / 25.4 / 25

8.10 OMR Recommended retail price excluding VAT

Find a local dealer
