Circular Saw Blades
PRO
1/11

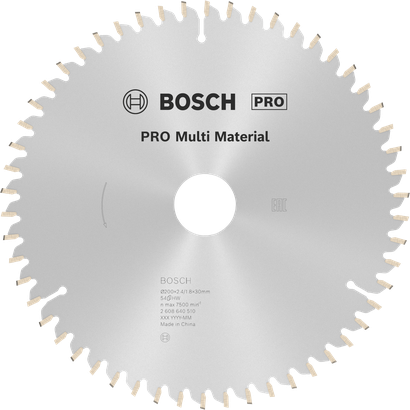

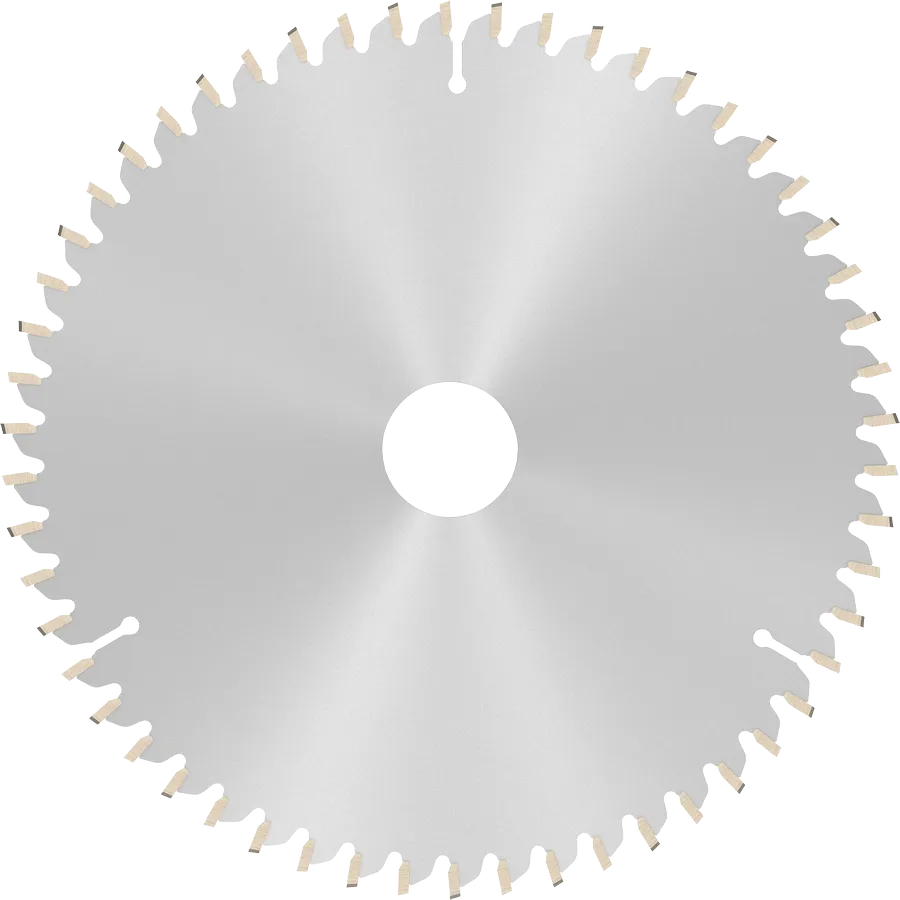

PRO Multi Material Circular Saw Blade
For corded handheld circular saws
Designed for cutting various materials
- Long Life cutting various materials
- Ground and sharpened fine carbide teeth for strength, durability and precision
- Bore works with or without reduction rings to fit different sizes
Materials
Select options
Outer diameter mm
Select one option from the listed items below
Number of teeth
Select one option from the listed items below
Width of cut (b1) mm
Select one option from the listed items below
Choose a pack size
Select one option from the listed items below
Select options
Outer diameter mm 8 options
Number of teeth 6 options
Width of cut (b1) mm 2 options
Choose a pack size 1 Pcs
PRO Multi Material Circular Saw Blade
-
1

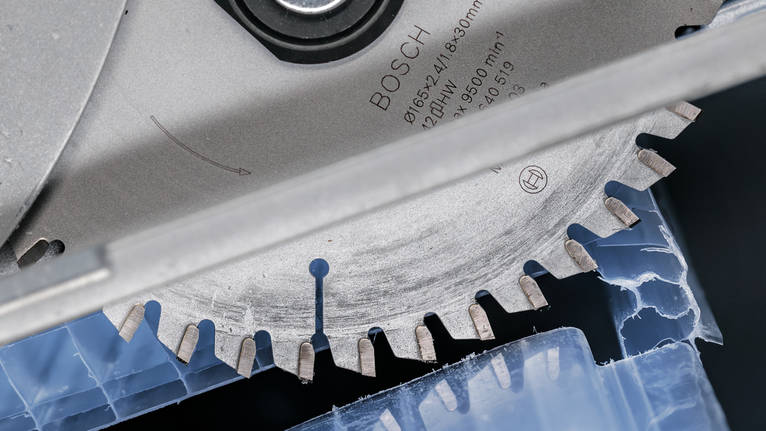

Ground and sharpened fine carbide teeth for strength, durability and precision
-
2
Expansion slots reduce heat for a longer lifetime
PRO
Advantage
PRO Multi Material for Long Life Cutting Various Materials
PRO Multi Material for Long Life Cutting Various Materials

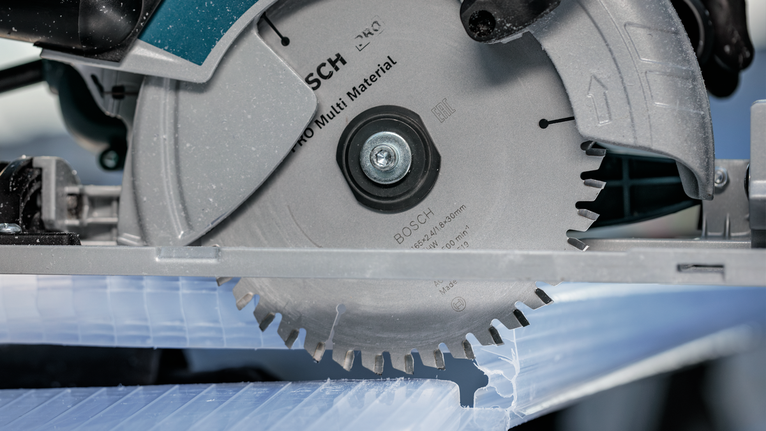

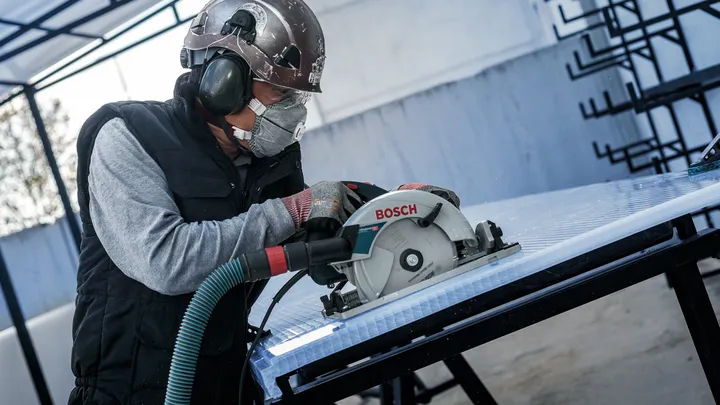

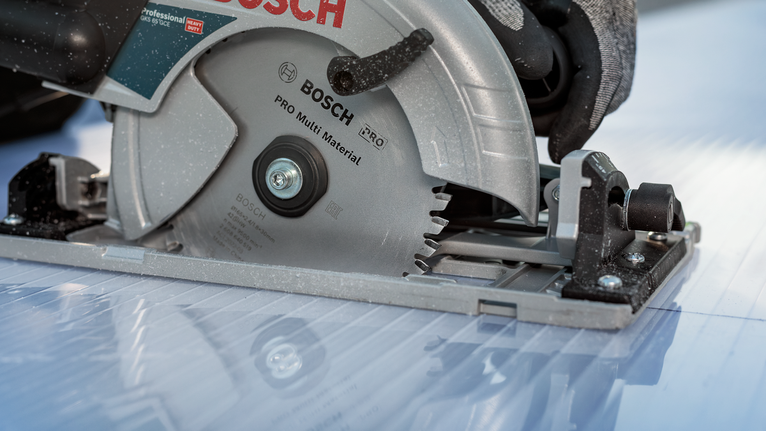

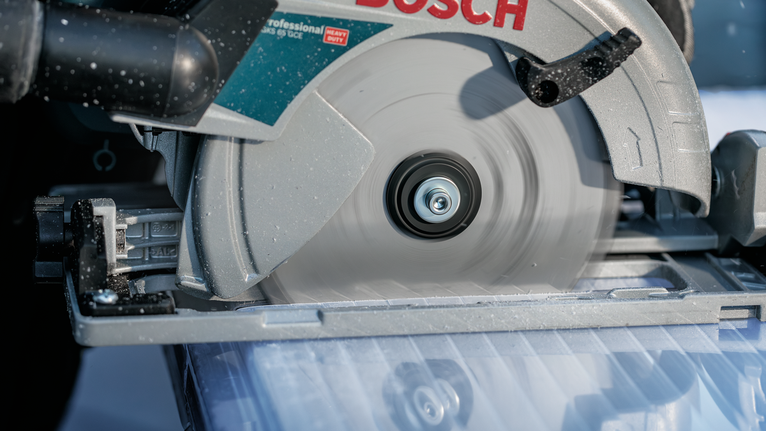

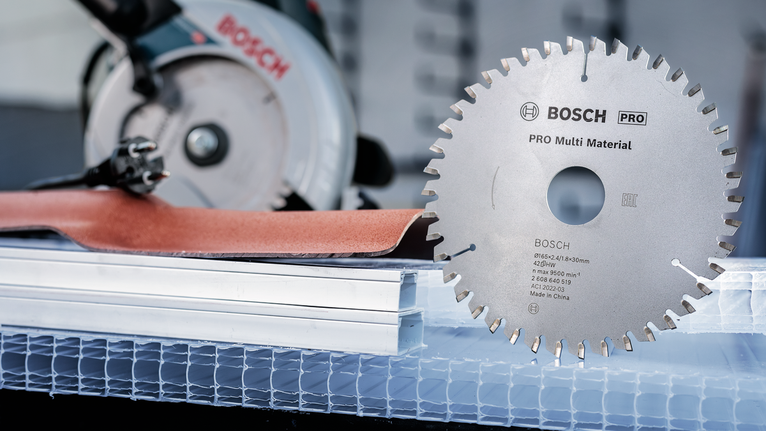

Installing window frames often means you need to cut various materials. You want a circular saw blade that cuts aluminium and other metals as well as plastics, wooden chipboards, and MDF. Try the PRO Multi Material Circular Saw Blade: it will help you get the job done.
View more
Product Options
Available product options: 10
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Bore with reduction ring mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Pack quantity
|
|
|---|---|---|---|---|---|---|---|
| 2 608 640 503 | 160 | 20 | 16 | 2.4/1.8 | 1 Pcs | Find a local dealer | |
| 2 608 640 507 | 180 | 30 | 20 | 2.4/1.8 | 1 Pcs | Find a local dealer | |
| 2 608 640 508 | 190 | 20 | 16 | 2.4/1.8 | 1 Pcs | Find a local dealer | |
| 2 608 640 509 | 190 | 30 | - | 2.4/1.8 | 1 Pcs | Find a local dealer | |
| 2 608 640 510 | 200 | 30 | - | 2.4/1.8 | 1 Pcs | Find a local dealer | |
| 2 608 640 511 | 210 | 30 | - | 2.4/1.8 | 1 Pcs | Find a local dealer | |
| 2 608 640 513 | 230 | 30 | - | 2.4/1.8 | 1 Pcs | Find a local dealer | |
| 2 608 640 514 | 235 | 30 | 25 | 2.4/1.8 | 1 Pcs | Find a local dealer | |
| 2 608 642 193 | 184 | 20 | 16 | 2/1.5 | 1 Pcs | Find a local dealer | |
| 2 608 642 197 | 235 | 25 | 16; 20 | 2/1.5 | 1 Pcs | Find a local dealer |
out of products

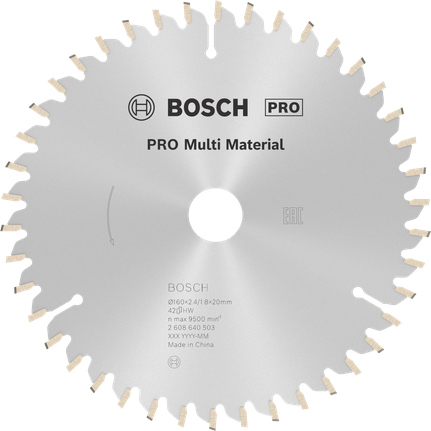

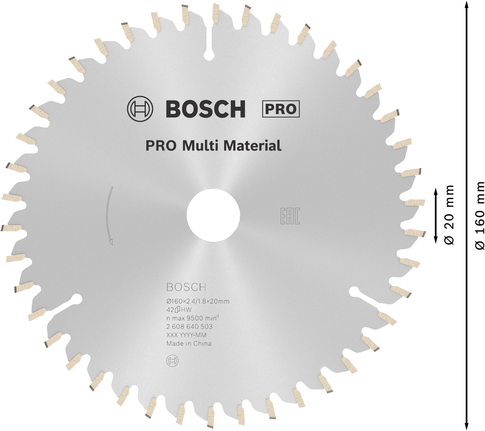

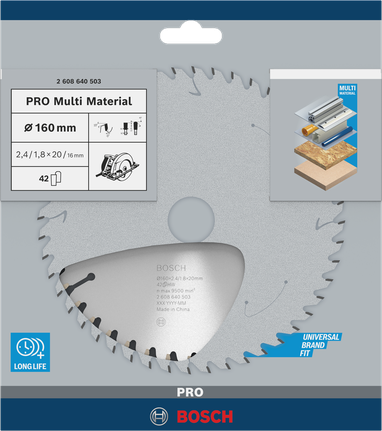

PRO Multi Material Circular Saw Blade, 160 x 2.4 x 20 mm
Part number 2608640503
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
160
Bore size mm
20
Bore with reduction ring mm
16
Width of cut (b1) mm / Base bl. thickness (b2) mm
2.4/1.8
Number of teeth
42
Tooth shape
HLTCG
Max. rotation speed (RPM)
9500
Cutting result
Fine Cut
Hook angle ° α
-5
Relief angle ° β
15

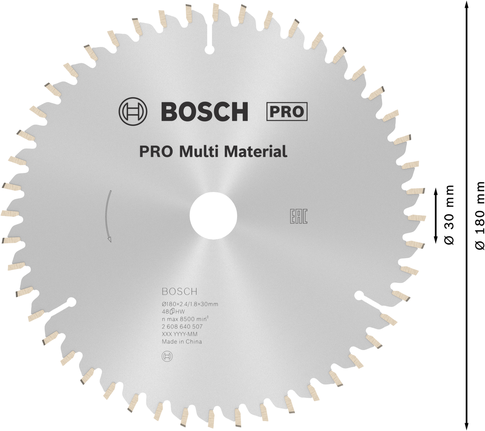

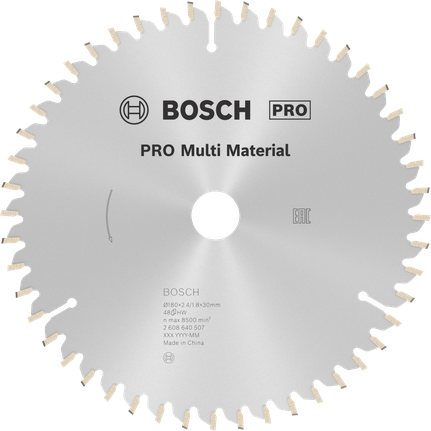

PRO Multi Material Circular Saw Blade, 180 x 2.4 x 30 mm
Part number 2608640507
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
180
Bore size mm
30
Bore with reduction ring mm
20
Width of cut (b1) mm / Base bl. thickness (b2) mm
2.4/1.8
Number of teeth
48
Tooth shape
HLTCG
Max. rotation speed (RPM)
8500
Cutting result
Fine Cut
Hook angle ° α
-5
Relief angle ° β
15

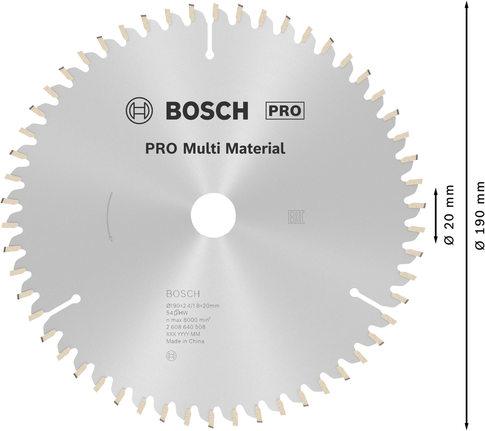

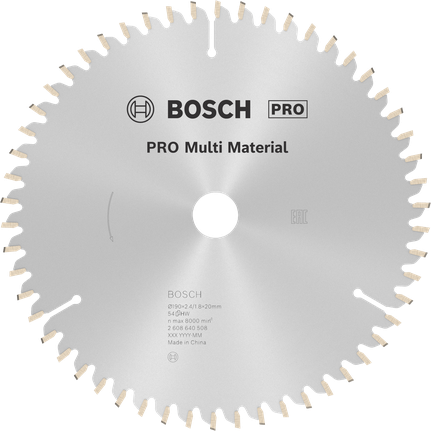

PRO Multi Material Circular Saw Blade, 190 x 2.4 x 20 mm
Part number 2608640508
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
190
Bore size mm
20
Bore with reduction ring mm
16
Width of cut (b1) mm / Base bl. thickness (b2) mm
2.4/1.8
Number of teeth
54
Tooth shape
HLTCG
Max. rotation speed (RPM)
8000
Cutting result
Fine Cut
Hook angle ° α
-5
Relief angle ° β
15
Outer diameter inch
7 1/2

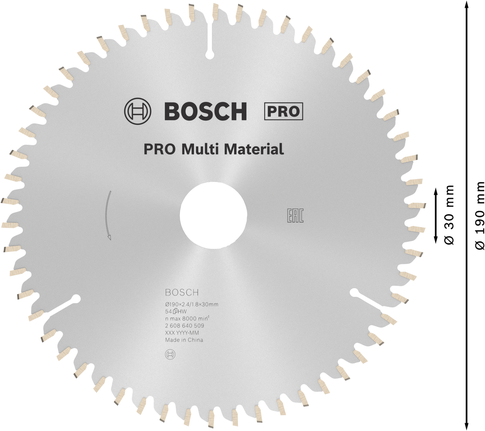

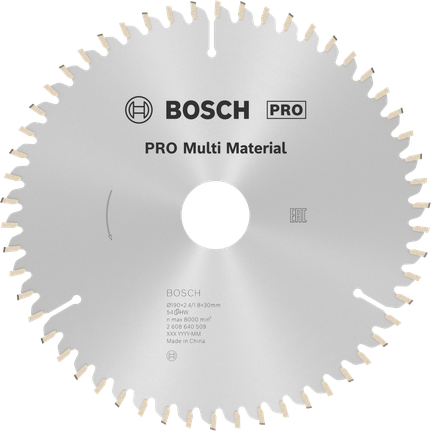

PRO Multi Material Circular Saw Blade, 190 x 2.4 x 30 mm
Part number 2608640509
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
190
Bore size mm
30
Bore with reduction ring mm
-
Width of cut (b1) mm / Base bl. thickness (b2) mm
2.4/1.8
Number of teeth
54
Tooth shape
HLTCG
Max. rotation speed (RPM)
8000
Cutting result
Fine Cut
Hook angle ° α
-5
Relief angle ° β
15
Outer diameter inch
7 1/2

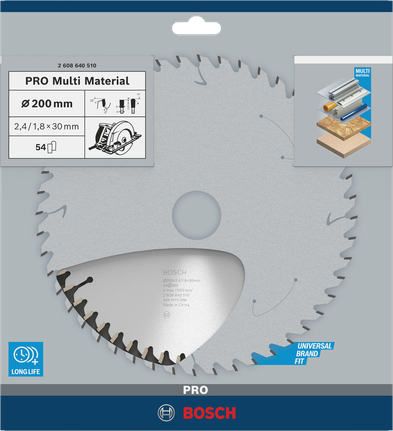

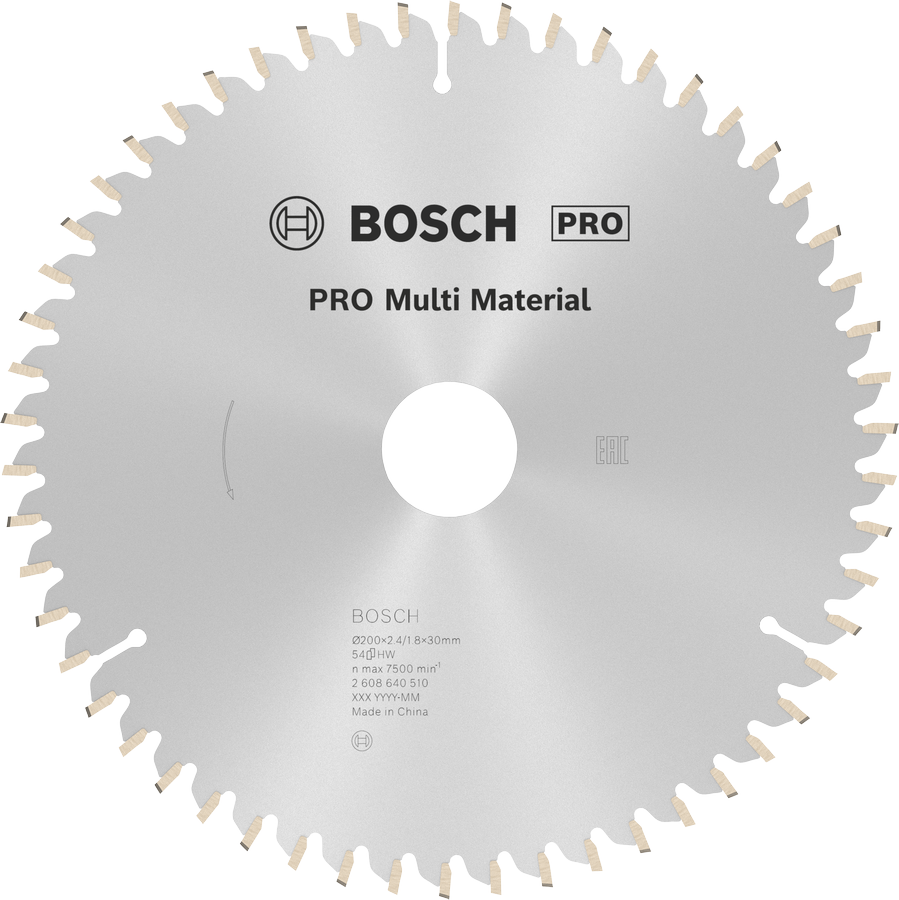

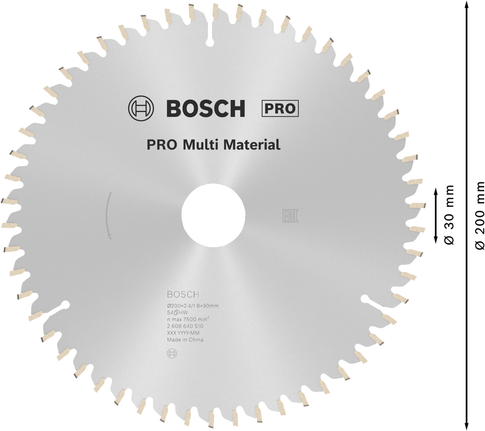

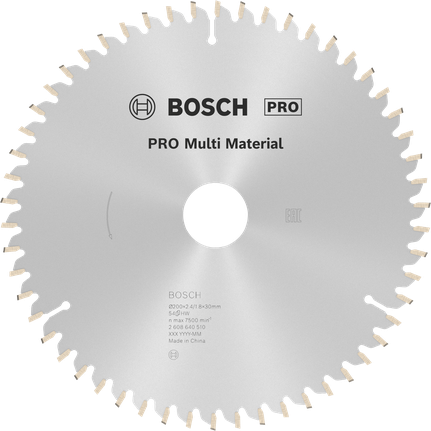

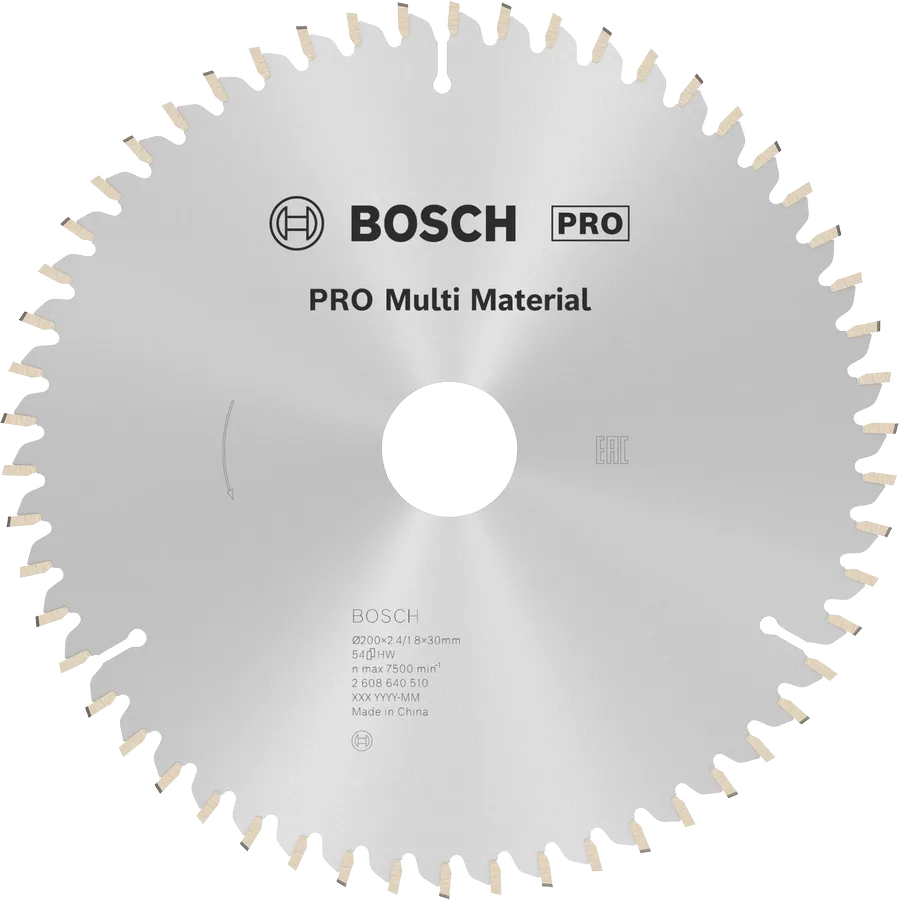

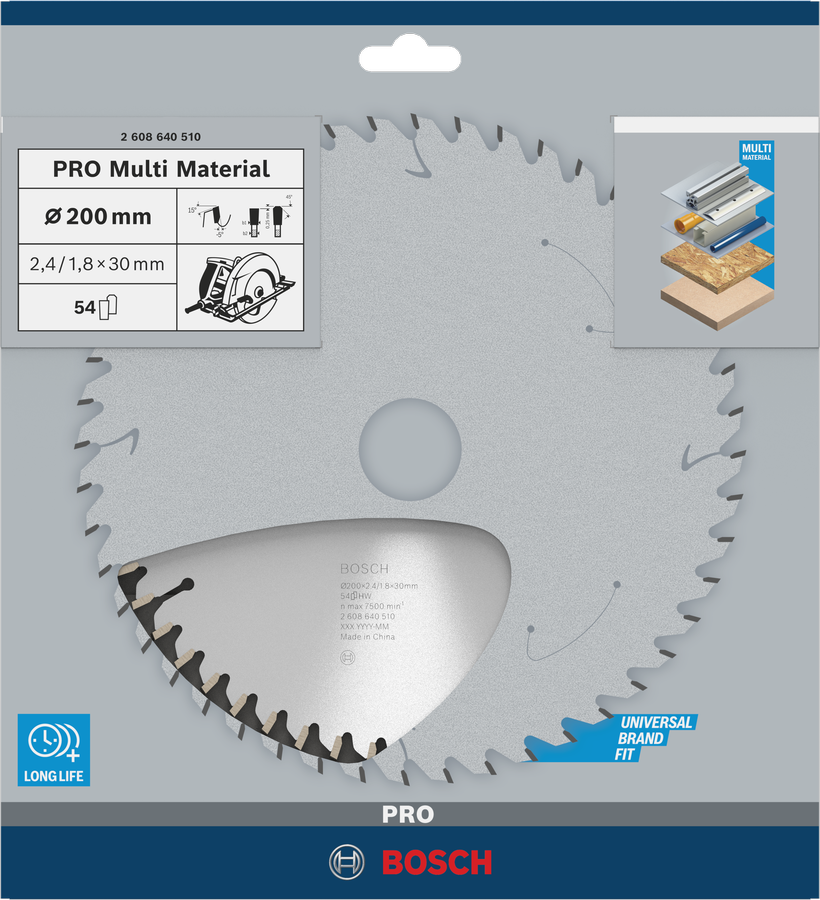

PRO Multi Material Circular Saw Blade, 200 x 2.4 x 30 mm
Part number 2608640510
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
200
Bore size mm
30
Bore with reduction ring mm
-
Width of cut (b1) mm / Base bl. thickness (b2) mm
2.4/1.8
Number of teeth
54
Tooth shape
HLTCG
Max. rotation speed (RPM)
7500
Cutting result
Fine Cut
Hook angle ° α
-5
Relief angle ° β
15

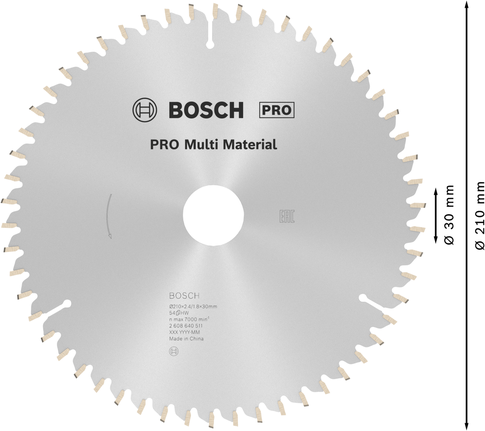

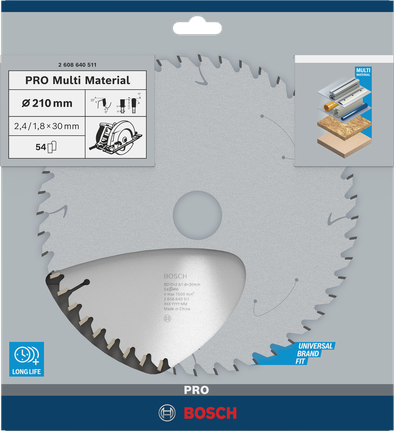

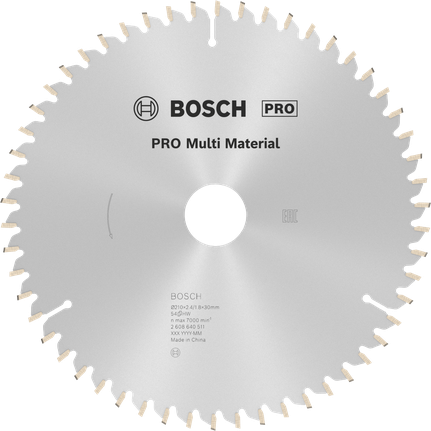

PRO Multi Material Circular Saw Blade, 210 x 2.4 x 30 mm
Part number 2608640511
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
210
Bore size mm
30
Bore with reduction ring mm
-
Width of cut (b1) mm / Base bl. thickness (b2) mm
2.4/1.8
Number of teeth
54
Tooth shape
HLTCG
Max. rotation speed (RPM)
7000
Cutting result
Fine Cut
Hook angle ° α
-5
Relief angle ° β
15
Outer diameter inch
8 1/4
PRO Multi Material Circular Saw Blade, 230 x 2.4 x 30 mm
Part number 2608640513
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
230
Bore size mm
30
Bore with reduction ring mm
-
Width of cut (b1) mm / Base bl. thickness (b2) mm
2.4/1.8
Number of teeth
64
Tooth shape
HLTCG
Max. rotation speed (RPM)
6500
Cutting result
Fine Cut
Hook angle ° α
-5
Relief angle ° β
15
Outer diameter inch
9

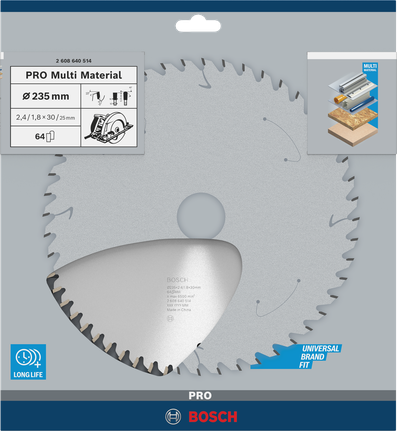

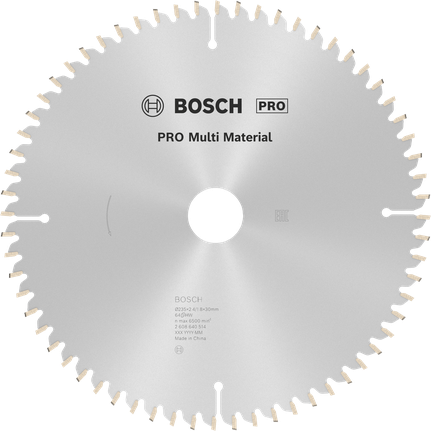

PRO Multi Material Circular Saw Blade, 235 x 2.4 x 30 mm
Part number 2608640514
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
235
Bore size mm
30
Bore with reduction ring mm
25
Width of cut (b1) mm / Base bl. thickness (b2) mm
2.4/1.8
Number of teeth
64
Tooth shape
HLTCG
Max. rotation speed (RPM)
6500
Cutting result
Fine Cut
Hook angle ° α
-5
Relief angle ° β
15
Outer diameter inch
9 1/4

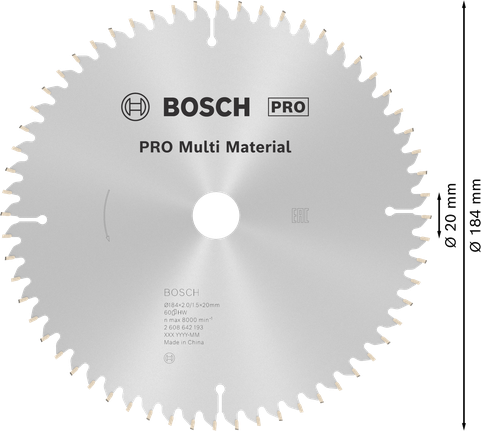

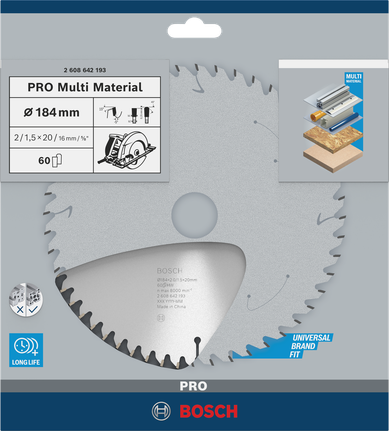

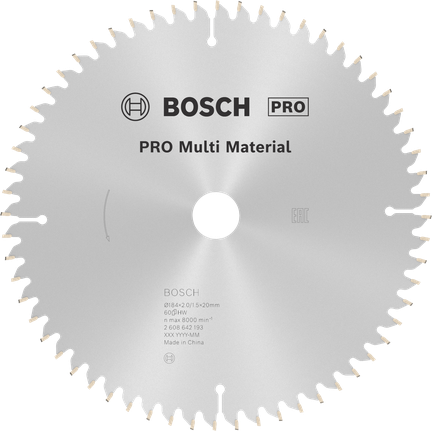

PRO Multi Material Circular Saw Blade, 184 x 2 x 20 mm
Part number 2608642193
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
184
Bore size mm
20
Bore with reduction ring mm
16
Width of cut (b1) mm / Base bl. thickness (b2) mm
2/1.5
Number of teeth
60
Tooth shape
TCG
Max. rotation speed (RPM)
8000
Cutting result
Fine Cut
Hook angle ° α
-5
Relief angle ° β
15
Outer diameter inch
7 1/4
Bore with reduction ring inch
5/8

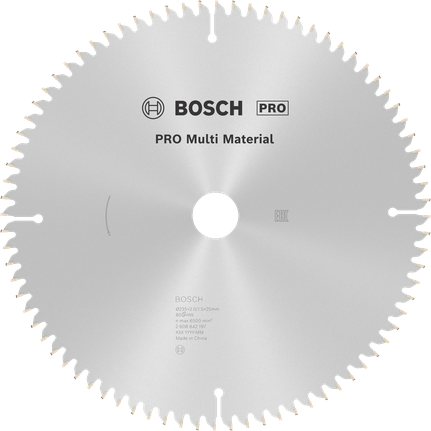

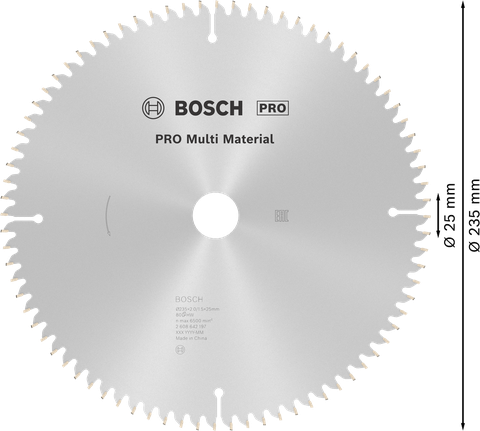

PRO Multi Material Circular Saw Blade, 235 x 2 x 25 mm
Part number 2608642197
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
235
Bore size mm
25
Bore with reduction ring mm
16 / 20
Width of cut (b1) mm / Base bl. thickness (b2) mm
2/1.5
Number of teeth
80
Tooth shape
TCG
Max. rotation speed (RPM)
6500
Cutting result
Fine Cut
Hook angle ° α
-5
Relief angle ° β
15
Outer diameter inch
9 1/4
Bore with reduction ring inch
5/8
