Technical data
| Additional data | |
|---|---|
| Mitre setting* | 47 ° L / 47 ° R |
| Saw blade diameter* | 216 mm |
| Bevel setting* | 45 ° L / 0 ° R |
| Battery voltage | 18 V |
| Weight | 14.7 kg |
| Cutting capacity, 0° | 70 x 270 mm |
| Cutting capacity, 45° mitre | 70 x 190 mm |
| Cutting capacity, 45° bevel | 45 x 270 mm |
| Tool dimensions (width x length x height) | 520 x770 x630 mm |
| No-load speed | 4,600 rpm |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level 95 dB(A); Sound power level 104 dB(A). Uncertainty K= 3 dB.
Advantages

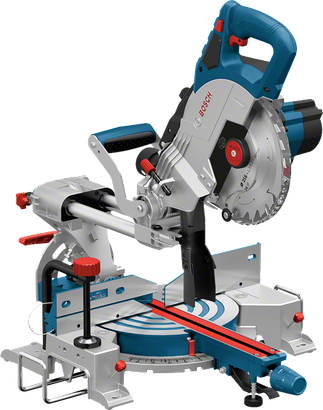

Powerful but compact: New cordless mitre saw with 1,600W comparable corded power at most compact size
- Corded performance: Fully equal to a corded 1,600W mitre saw due to new BITURBO Brushless technology
- Mobility at its best: Light weight and great ergonomics as the saw is operated by one 18V battery only
- Unmatched application range: Sets a new standard with a cutting depth of 70mm
Functions
What’s Included in this Package
in cardboard box
Order number:
0 601 B41 000
- 1 x circular saw blade, Standard for Wood, 216 x 30 x 1.7 mm, 24 2 608 837 721
- Dustbag (spare part number 1 609 B05 010)
- SDS saw blade lock (spare part number 1 609 B05 323)
- Insert plate (spare part number 1 609 B03 717)
- Cardboard box
