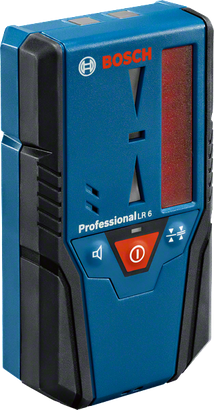

Laser Receiver LR 6 Professional

Easy-to-operate laser receiver with a compact design

Technical data
Additional data
Range of 5 – 50   m
Power supply 2 x 1.5 V LR03 (AAA)
Dust and splash protection IP 54
Remote control -
Receiver -
Measuring accuracy (fine/rough) ± 1 mm/± 3 mm
Weight, approx. 120   g
Tool dimensions (width) 69   mm
Tool dimensions (length) 123   mm
Tool dimensions (height) 28   mm
Type of receiver Combi- and line lasers

Advantages

Easy-to-operate laser receiver with a compact design

  • Handy receiver for ranges of up to 50 m
  • Alignment of the laser beam plane, visual and audible signals, for working in various lighting conditions

Functions

Red beam detection
Reception area 50 mm
Easy attachment due to magnets on the top of the receiver
IP54 dust and splash water protection

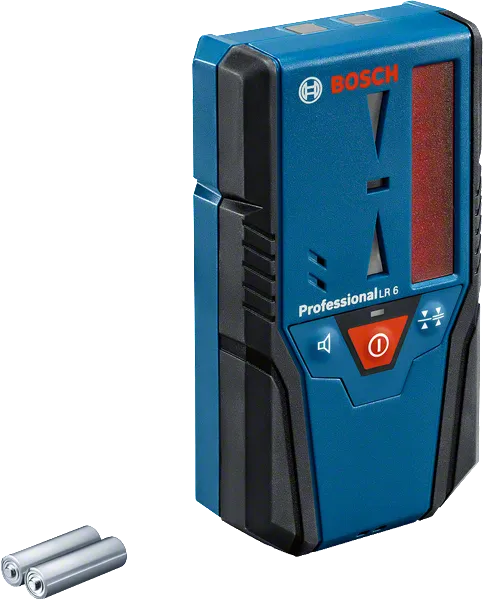

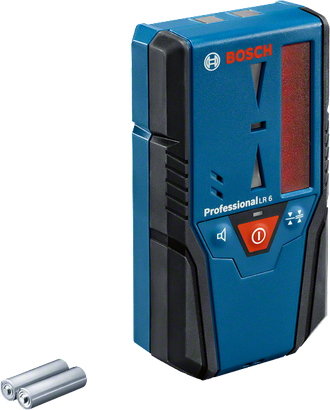

What’s Included in this Package
with 2 x battery (AAA)
with 2 x battery (AAA)
Order number: 0 601 069 H00
  • 2 x 1.5 V LR03 battery (AAA)
