For mitre saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 3 options
Number of teeth 5 options
Width of cut (b1) mm 3 options
Choose a pack size 1 Pcs

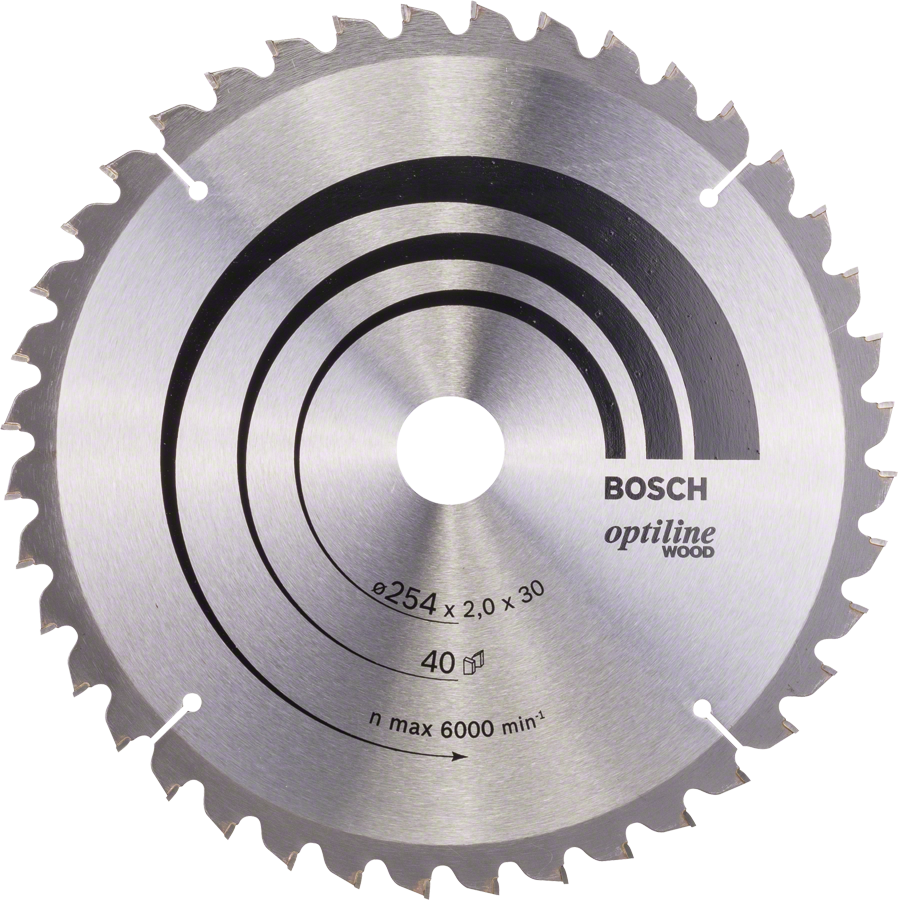

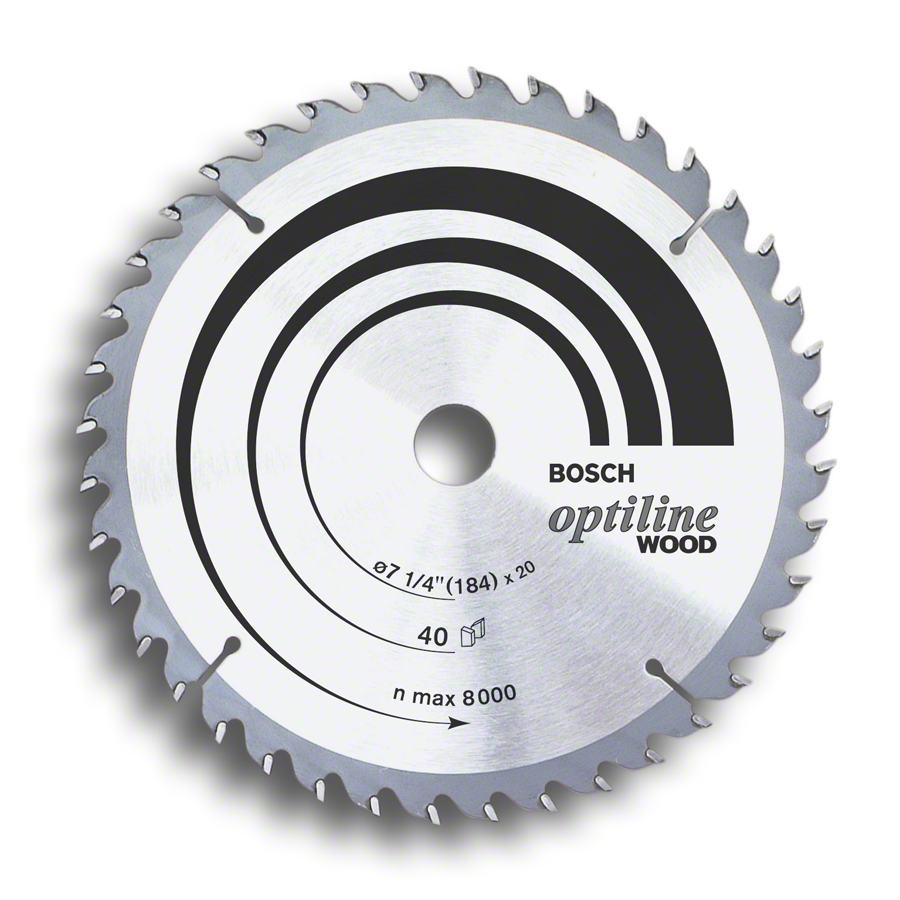

Optiline Wood Circular Saw Blade delivers precise quality cuts in all types of wood
Available product variations: 6
| Part number | Outer diameter mm | Bore size mm | Width of cut (b1) mm / Base bl. thickness (b2) mm | Number of teeth | Pack quantity | ||
|---|---|---|---|---|---|---|---|
| 2 608 640 431 | 216 | 30 | 2/1=4 | 24 | 1 Pcs | Find a local dealer | |
| 2 608 640 437 | 254 | 30 | 2=5/1=8 | 80 | 1 Pcs | Find a local dealer | |
| 2 608 640 444 | 254 | 30 | 2=8/1=8 | 60 | 1 Pcs | Find a local dealer | |
| 2 608 640 440 | 305 | 30 | 2=5/1=8 | 40 | 1 Pcs | Find a local dealer | |
| 2 608 640 441 | 305 | 30 | 2=5/1=8 | 60 | 1 Pcs | Find a local dealer | |
| 2 608 640 442 | 305 | 30 | 2=5/1=8 | 96 | 1 Pcs | Find a local dealer |
out of products
| Part number 2608640431 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 216 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1=4 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 7000 |
| Cutting result | Very coarse cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Part number 2608640437 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 254 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2=5/1=8 |
| Number of teeth | 80 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 6000 |
| Cutting result | Fine Cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Part number 2608640444 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 254 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2=8/1=8 |
| Number of teeth | 60 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 6000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 19 |
| Relief angle ° β | 10 |
| Part number 2608640440 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 305 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2=5/1=8 |
| Number of teeth | 40 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 5000 |
| Cutting result | Coarse cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Outer diameter inch | 12 |
| Part number 2608640441 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 305 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2=5/1=8 |
| Number of teeth | 60 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 5000 |
| Cutting result | Fine Cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Outer diameter inch | 12 |
| Part number 2608640442 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 305 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2=5/1=8 |
| Number of teeth | 96 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 5000 |
| Cutting result | Fine Cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Outer diameter inch | 12 |
