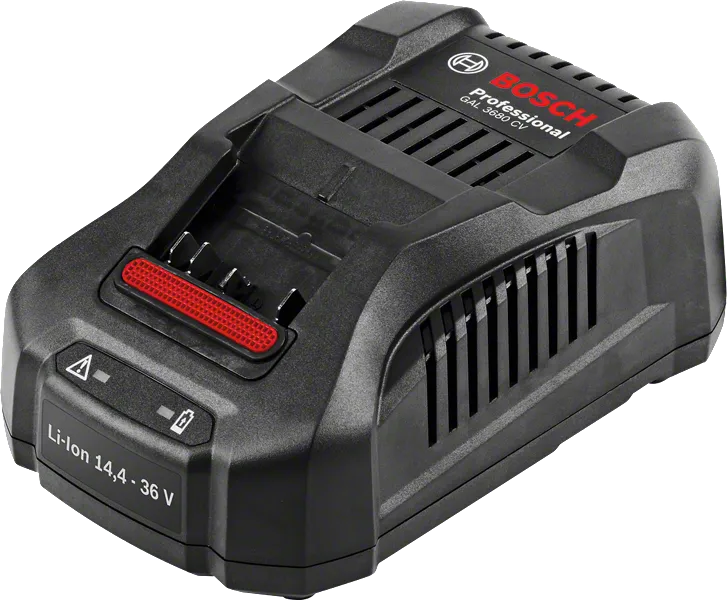

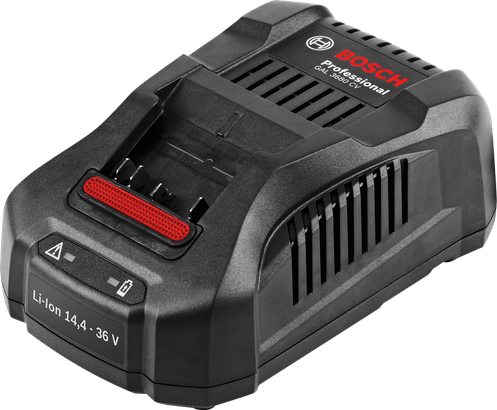

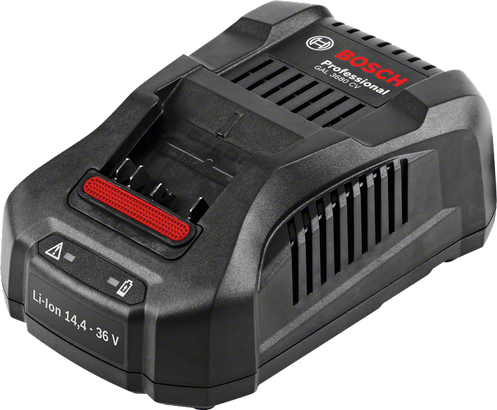

Bosch GAL 3680 CV battery charger for Li-Ion 14.4-36V.
Bosch GAL 3680 CV battery charger for Li-Ion 14.4-36V.
GAL 3680 CV

GAL 3680 CV Professional

Charger

The multi-volt quick charger for all Li-Ion batteries from 14.4 to 36 volts

  • 100% faster charging of the batteries (compared to AL 3640 CV)
  • Quick-charge mode: 4.0 Ah battery is ready to use with 80% of its capacity after only 25 mins
  • Active Air Cooling for longer lifetime of the batteries

Functions & key features

8.0 ampere
Active air cooling
Cable winding
GAL 3680 CV 4.0 Ah 80 percent charge 25 minutes
I-beam steel

Your Selection

  • in cardboard box with quick charger
Show variant Find a local dealer

in cardboard box with quick charger 1 600 A00 4ZS

GAL 3680 CV Professional

Your Selection

Bosch GAL 3680 CV battery charger for Li-Ion 14.4-36V.
in cardboard box with quick charger

Order number: 1 600 A00 4ZS

Find a local dealer

Included in this variant

  • Cardboard box
  • Quick charger GAL 3680 CV
    Order number: 2 607 225 899

Technical data

Additional data

Battery charging voltage
14=4 – 36 V
Charge current
8 A
Weight
0.9 kg
Charg. time at bat. cap. 1.5 Ah (80%/100%) approx.
10/25 min
Charg. time at bat. cap. 2.0 Ah (80%/100%) approx.
15/30 min
Charg. time at bat. cap. 3.0 Ah (80%/100%) approx.
20/35 min
Charg. time at bat. cap. 4.0 Ah (80%/100%) approx.
25/35 min
Charg. time at bat. cap. 5.0 Ah (80%/100%) approx.
35/45 min
Charg. time at bat. cap. 6.0 Ah (80%/100%) approx.
35/55 min
Charg. time at bat. cap. 6.3 Ah (80%/100%) approx.
41/55 min
Charg. time ProCORE18V 4.0 Ah (80%/100%) approx.
32/51 min
Charg. time ProCORE18V 8.0 Ah (80%/100%) approx.
68/79 min
Charg. time ProCORE18V 12.0 Ah (80%/100%) approx.
113/126 min

* You can find more information about the deviations in the following link: Technical features of products
