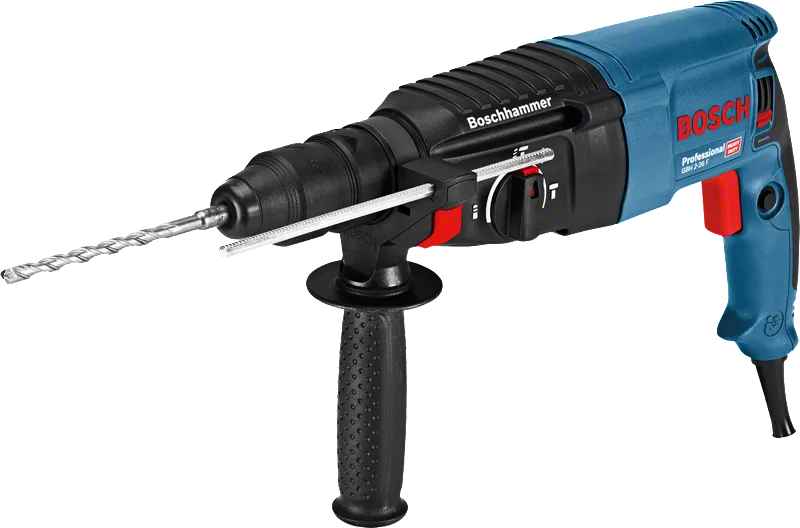

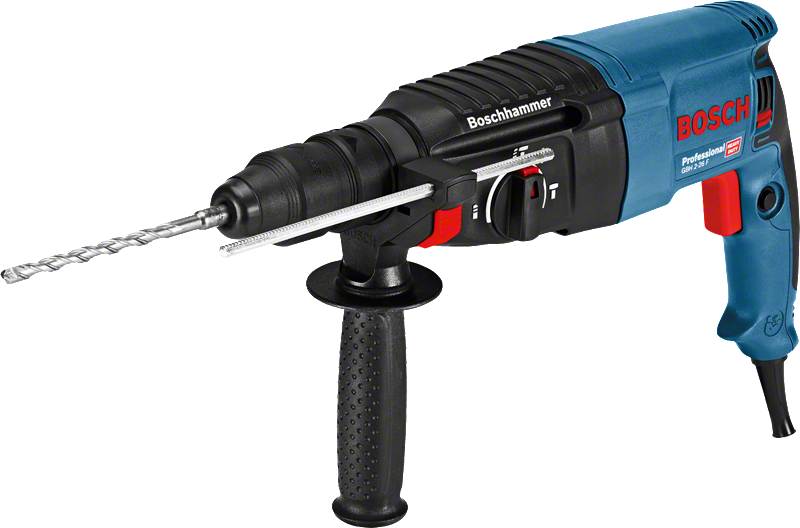

Rotary Hammer with SDS plus GBH 2-26 F Professional

Fast all-rounder for daily use

Technical data
Additional data
Rated input power* 830
Impact energy* 2=7 J
Impact rate at rated speed 0 – 4.000 bpm
Rated speed 0 – 900 rpm
Weight 2.9

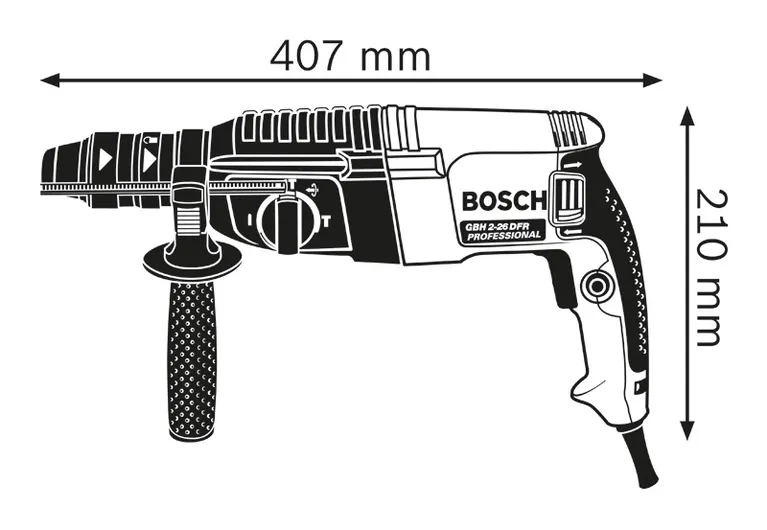

Tool dimensions (width) 83
Tool dimensions (length) 407
Tool dimensions (height) 210
Tool holder SDS plus
Drilling range
Drilling dia. concrete, hammer drill bits* 4 – 26 mm
Opt. appl. range concrete, hammer drill bits 8 – 16 mm
Drilling diameter in concrete with core cutters 68 mm
Max. drilling diameter masonry, core cutters 68
Max. drilling diameter in metal 13
Max. drilling diameter in wood 30
Total vibration values (Hammer drilling in concrete)
Vibration emission value ah 16.5
Uncertainty K 1.5
Total vibration values (Chiselling)
Vibration emission value ah 14
Uncertainty K 1.5

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 91 dB(A); Sound power level 102 dB(A). Uncertainty K= 3 dB.

Advantages

Fast all-rounder for daily use

  • Improved performance for a fast drilling rate and high chiselling removal rate
  • Reliable and robust with long lifetime due to high-quality components
  • Wide range of applications for drilling, hammer drilling and chiselling

Functions

Optimal power transmission for small hammers
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Forward / reverse rotation for inserting and removing screws
Comfortable handling of the tool thanks to softgrip
Combi hammer with chisel function No rotary motion; impact effect only
Convenient change of accessories Keyless chuck opens and closes easily
Cable length 4.0 m
Convenient adjustment of the chisel position enabling you to adapt it to each work situation
Easy and precise control of the RPM thanks to variable speed

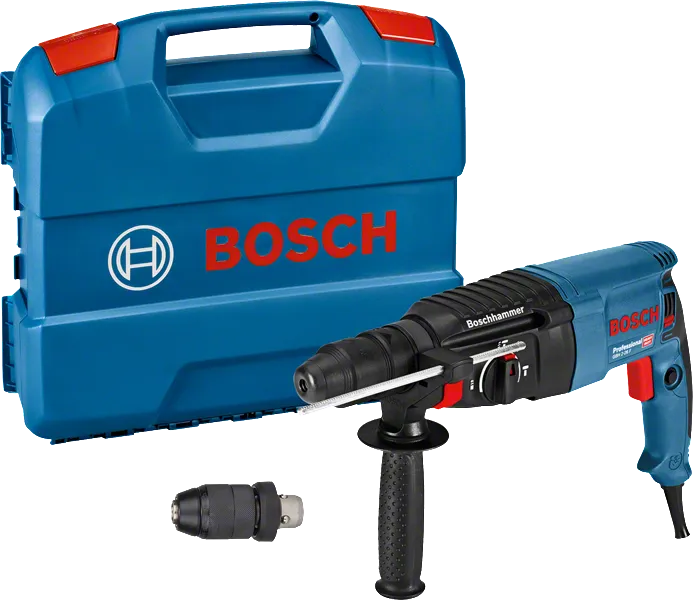

What’s Included in this Package
in carrying case with accessory set, (Voltage 240 V)
in carrying case with accessory set, (Voltage 240 V)
Order number: 0 611 2A4 070
  • Auxiliary handle 2 602 025 141
  • Carrying case
  • Depth stop 210 mm 1 613 001 010
  • Machine cloth
  • Quick change chuck 13 mm 2 608 572 212
  • SDS plus quick-change chuck 2 608 572 213
  • Voltage 240 V
The GBH 2-26 F in action!
