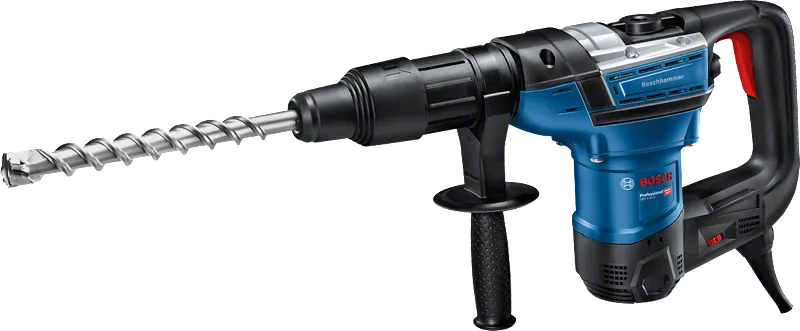

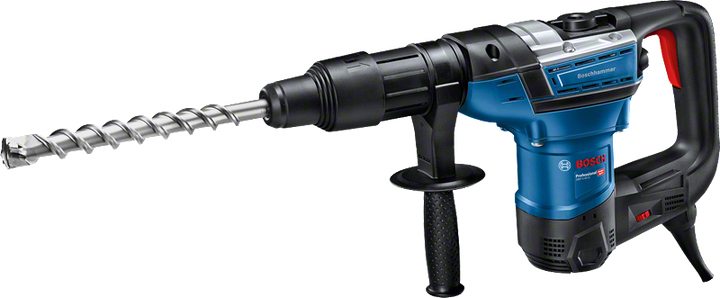

Rotary Hammer with SDS max GBH 5-40 D Professional

The powerful hammer with fastest drilling progress in its class

Technical data
Additional data
Rated input power 1,100
Impact energy 8=5   J
Impact rate at rated speed 1.500 – 2.900   bpm
Rated speed 170 – 340   rpm
Weight 6.8
Tool holder SDS max
Drilling range
Drilling dia. concrete, hammer drill bits 12 – 40   mm
Drilling dia. concrete, breakthrough drill bits 45 – 55   mm
Drilling diameter in concrete with core cutters 40 – 90   mm
Max. drilling diameter masonry, core cutters 90
Max. drilling diameter concrete 40
Opt. appl. range concrete, hammer drill bits 18 – 32   mm
Total vibration values (Hammer drilling in concrete)
Vibration emission value ah 14
Uncertainty K 1.5
Total vibration values (Chiselling)
Vibration emission value ah 11.5
Uncertainty K 1.5


The powerful hammer with fastest drilling progress in its class

  • Fastest drilling progress – 30% faster than its predecessor
  • High material removal rate – 50% more impact energy than existing GBH 5-38 D
  • Perfect handling – well balanced tool for all applications


Construction The professional power tools for construction from Bosch.
What’s Included in this Package
in carrying case with auxiliary handle
in carrying case with auxiliary handle
Order number: 0 611 269 000
  • Auxiliary handle
  • Carrying case
  • Cleaning cloth
  • Grease tube
  • Strap
Product variations (2)
The GBH 5-40 D in action!
