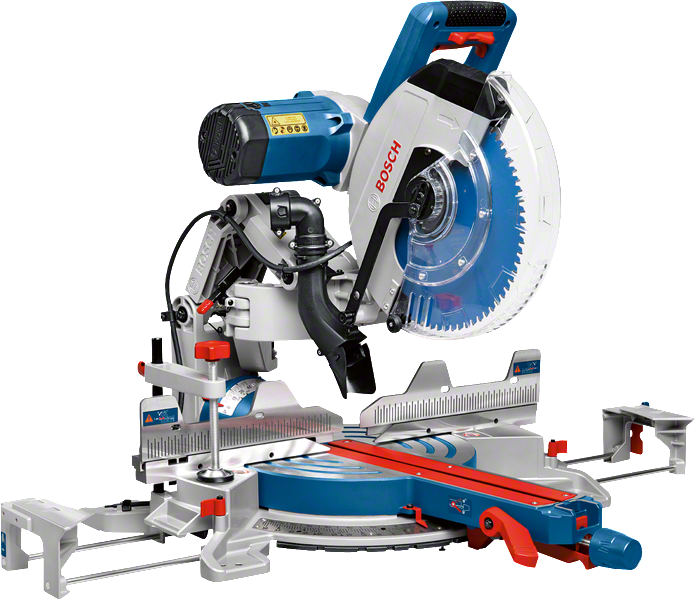

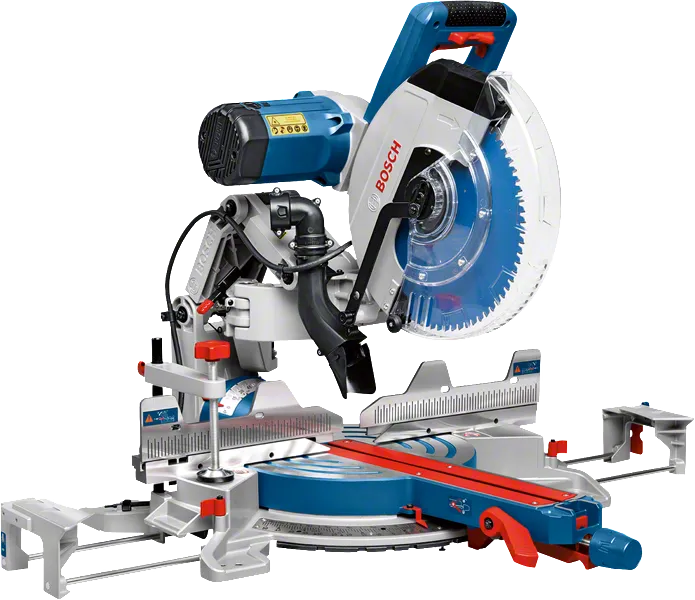

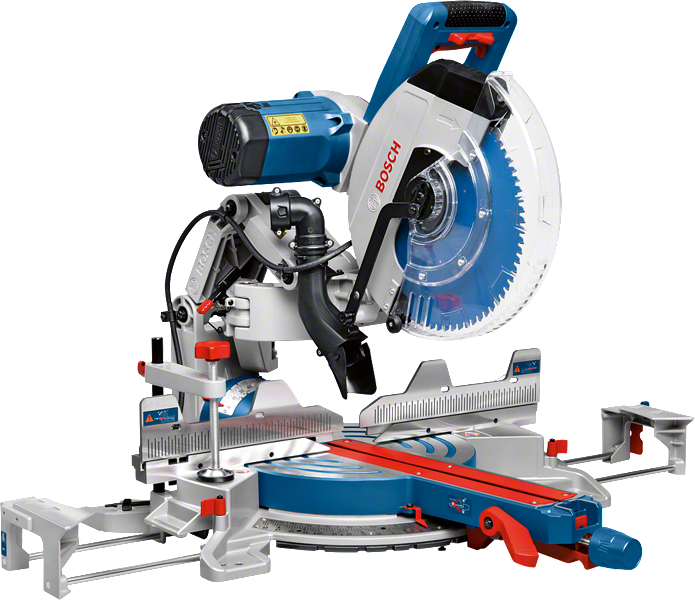

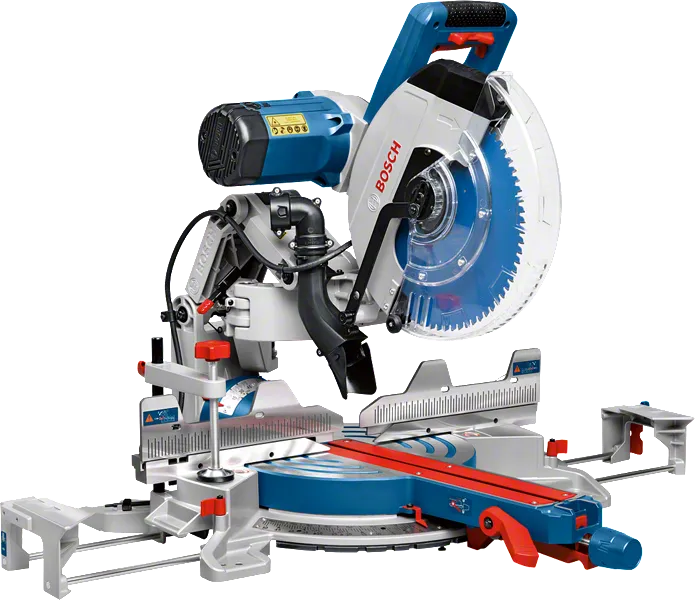

Mitre Saw GCM 12 GDL Professional

Unmatched cutting smoothness and durable precision

Technical data
Additional data
Mitre setting* 52 ° L / 60 ° R
Saw blade diameter* 305
Bevel setting* 47 ° L / 47 ° R
Rated input power 2,000
Cutting capacity, 0° 104 x 341 mm
Cutting capacity, 45° mitre 104 x 240 mm
Cutting capacity, 45° incline 51 x 341 mm
Tool dimensions (width x length x height) 670 x820 x690 mm
No-load speed 3.800 rpm
Saw blade bore diameter 30
Weight 32.1
Total vibration values (Sawing wood)
Vibration emission value ah 2.5
Uncertainty K 1.5

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 93 dB(A); Sound power level 106 dB(A). Uncertainty K= 3 dB.


Unmatched cutting smoothness and durable precision

  • Extreme cutting smoothness because of innovative and maintenance-free gliding system
  • Integrated dual line laser supports accurate cuts
  • High vertical and horizontal cutting capacity


Laser class 2 Laser class for measuring tools.
Easy disc / tool change thanks to spindle lock
Click & Clean System – 3 great benefits A clear view of the work surface: You work more precisely and faster
Harmful dust is extracted immediately: Protects your health
Less dust: Longer lifetime of tool and accessories
Efficient work with high user protection Effective work with high user protection, also works when power failure and ensures that the tool stops significantly faster than without a braking system.
 Soft start as the load and torque of the motor are temporarily reduced during start-up.

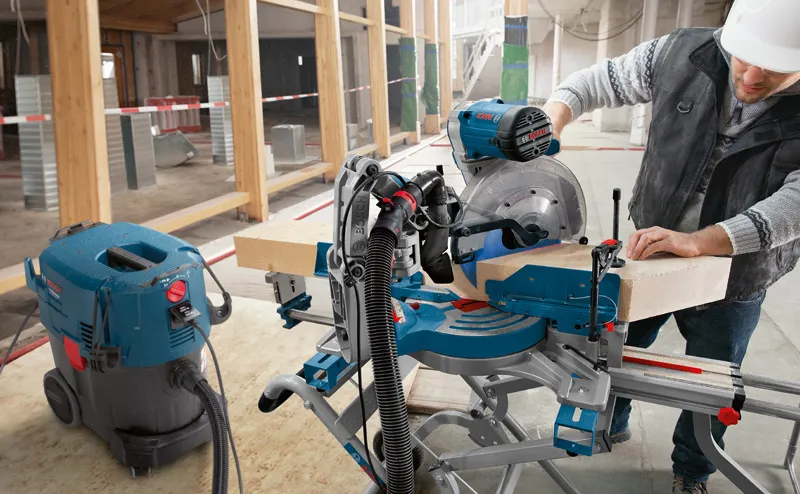

Dust extraction directly into the integral dust bag on the tool and/or using an all-purpose dust extractor
What’s Included in this Package
with accessory set, (Voltage 240 V)
with accessory set, (Voltage 240 V)
Order number: 0 601 B23 670
  • Collet (spare part number 1 609 B02 585)
  • Insert plate 1 609 B02 375
  • Internal hexagon 1 609 B00 256
  • Voltage 240 V
  • 1 x circular saw blade, Expert for Wood, 305 x 30 x 2.4 mm, 72 2 608 642 531
Product variations (3)

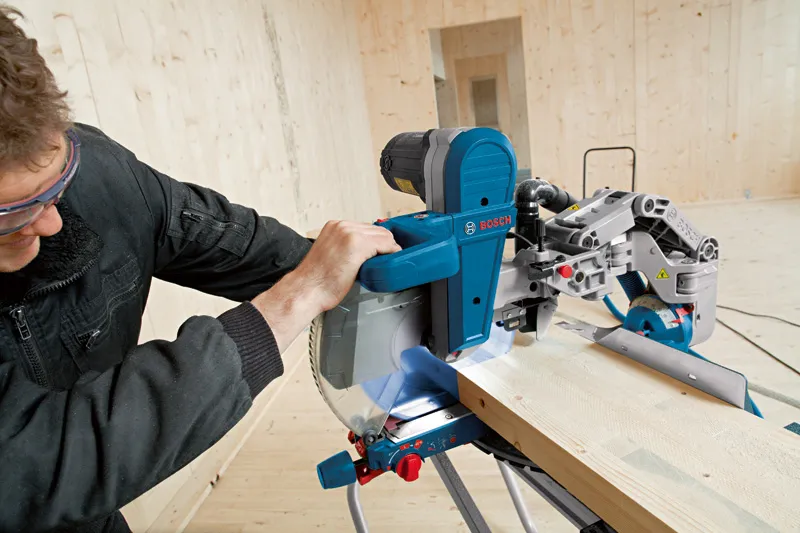

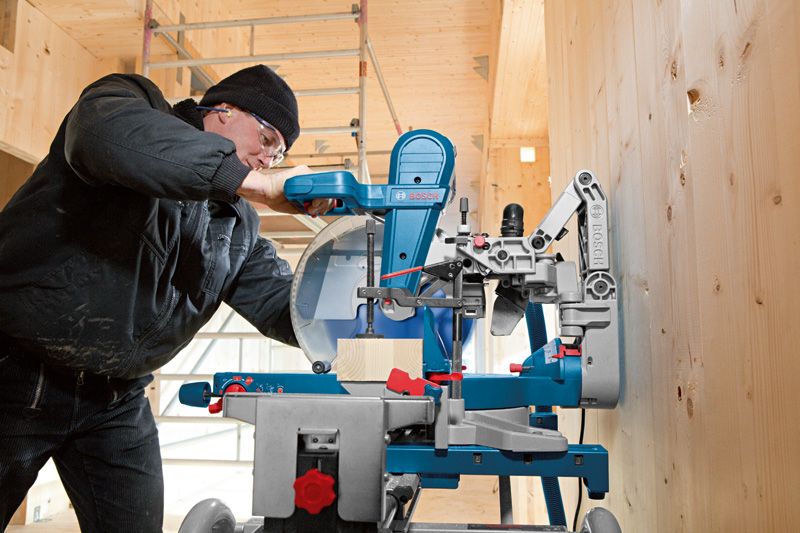

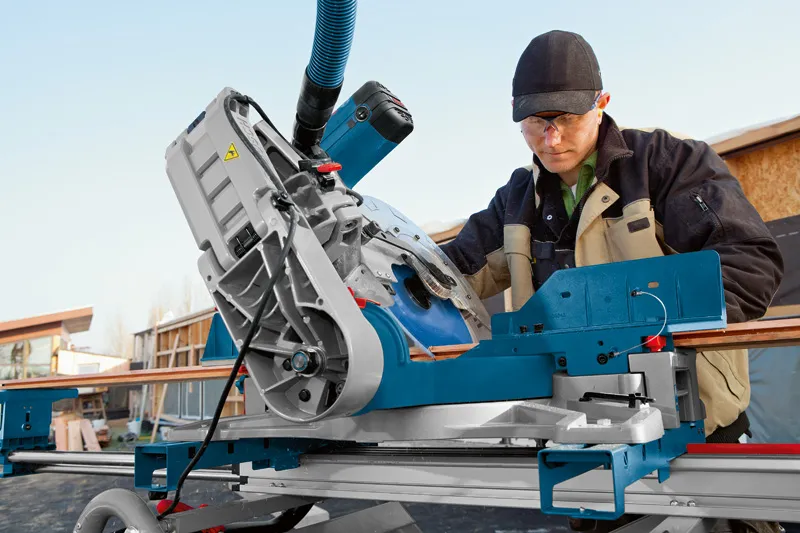

The GCM 12 GDL in action!
