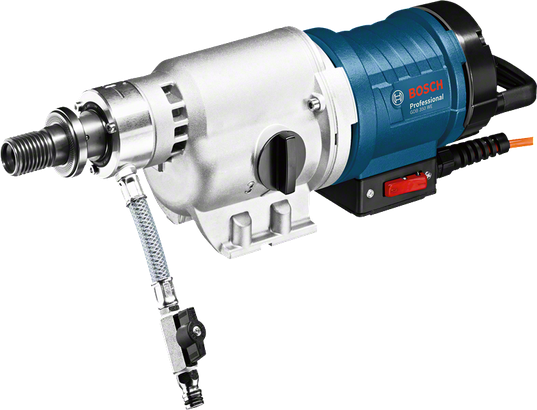

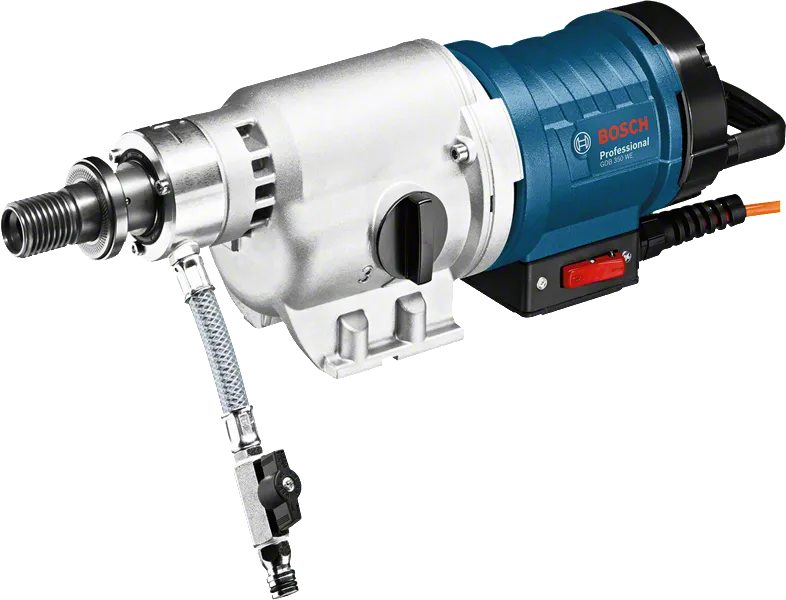

GDB 350 WE Professional

Diamond Drill

Power through concrete – drill holes of up to 350 mm in diameter

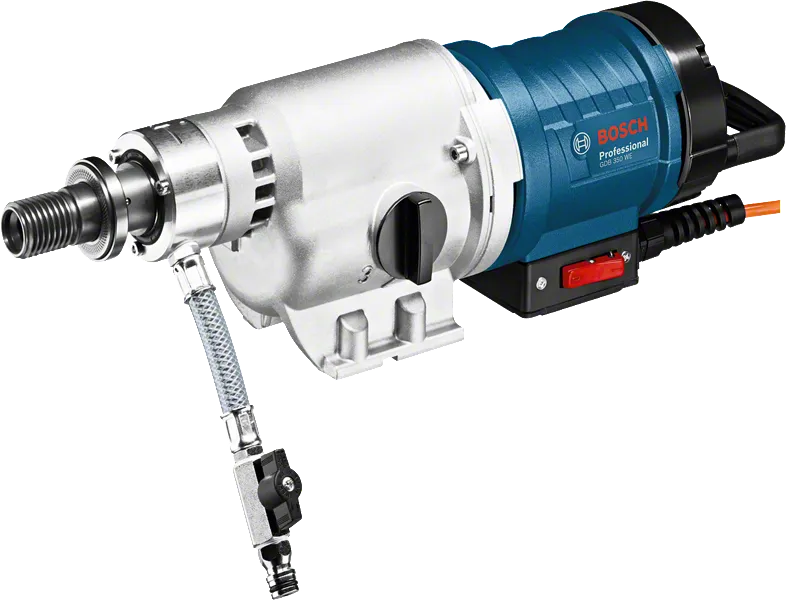

3200 watt motor and 3-speed gearbox for core drilling up to 350 mm in reinforced concrete
Long lifetime due to robust design and gearbox with oil-bath lubrication

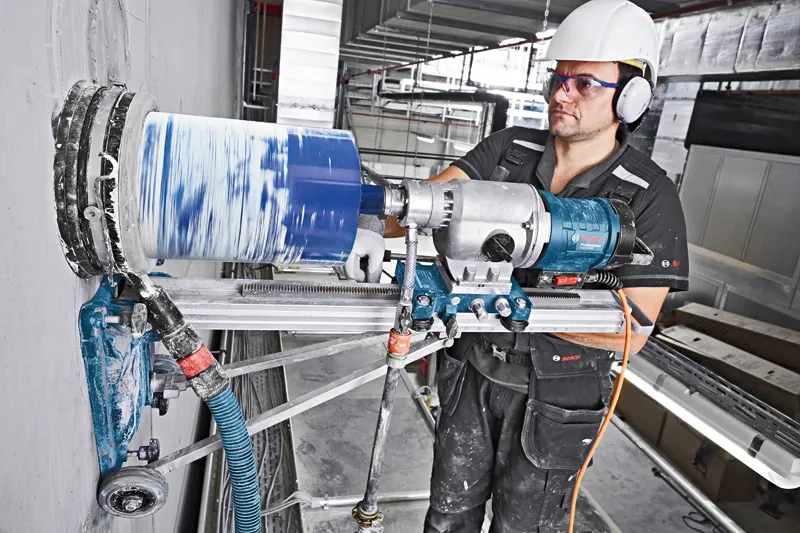

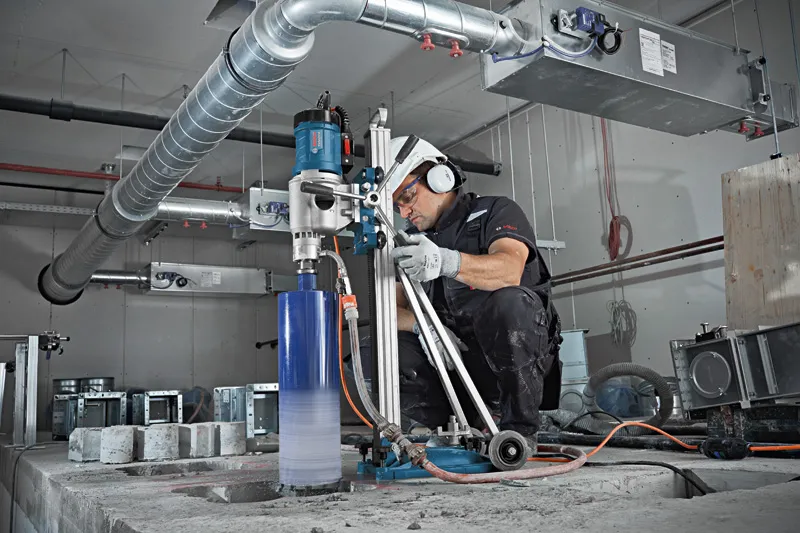

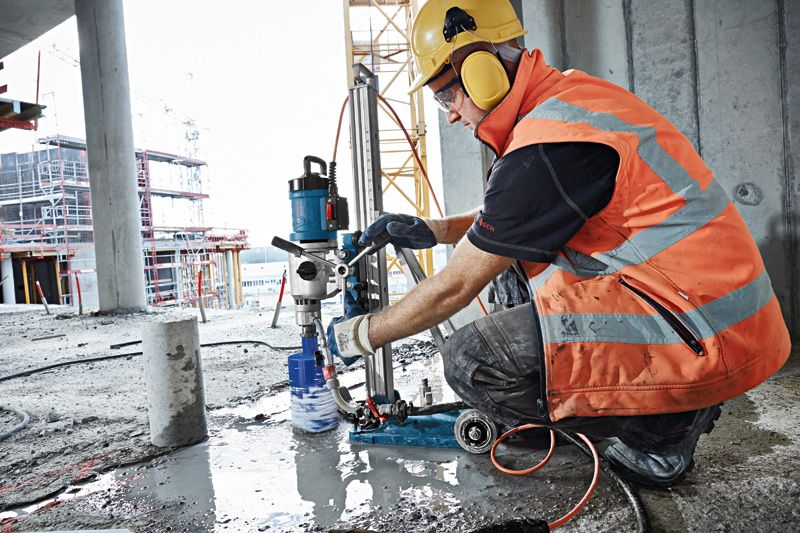

Stand-mounted drilling in a system with GCR 350 drill stand (part number 0 601 190 200)

See technical details

Show variant

Check availability on location

Find a local dealer

Your Selected Variant

GDB 350 WE Professional 0 601 189 900

Find a local dealer

GDB 350 WE Professional

Your Selection

Order number: 0 601 189 900

Find a local dealer

Technical data

Additional data
Rated input power	3,200 W
Tool holder	1 1/4" UNC
Weight	11.9 kg
Drilling range	350 mm
Suitability	Wet drilling in concrete

Drilling range, bench-mounted
Concrete, possible range	350 mm

Noise/vibration information
Sound pressure level	96 dB(A)
Sound power level	110 dB(A)
Uncertainty K	3 dB
