Technical data
| Additional data | |
|---|---|
| No-load speed* | 2.500 – 8.000 rpm |
| Rated input power* | 750 |
| Tool holder* | Collets up to 8 mm diameter |
| Power output | 420 |
| Spindle collar diameter | 43 |
| Weight | 1.7 |

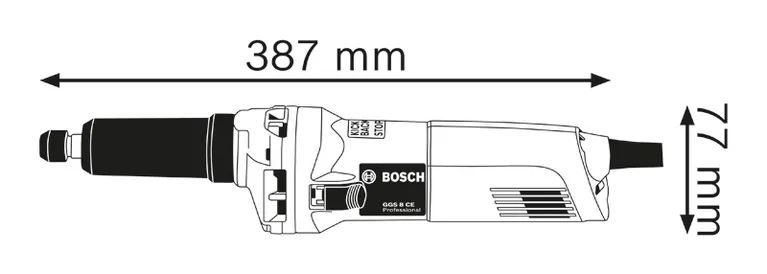

| Tool dimensions (length) | 387 |
| Tool dimensions (height) | 77 |
| Max. collet diameter | 8 mm |
| Max. grinding tool diameter | 50 |
| Spanner size of locking nut | 19 |
| Spanner size of grinding spindle | 13 |
| Max. polishing tool diameter | 80 |
| Switch | 2-way |
| Total vibration values (Surface grinding up to diameter of 25) | |
|---|---|
| Vibration emission value ah | 2.5 |
| Uncertainty K | 1.5 |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level 82 dB(A); Sound power level 93 dB(A). Uncertainty K= 3 dB.
Advantages

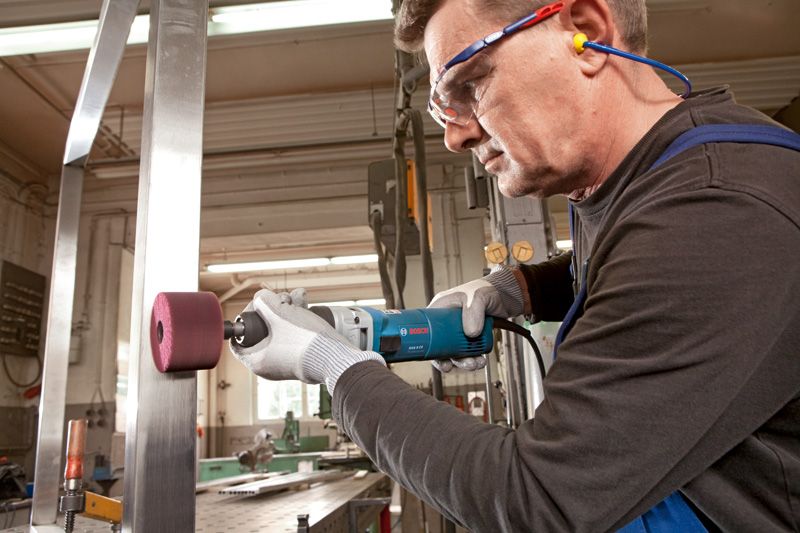

The powerful specialist for surfaces
- Powerful 750 watt motor for fast work progress with soft start
- Handy design and high torque – ideal for grinding surfaces with flap wheels, brushes, and other accessories
- KickBack Control: detects when the tool is jammed and shuts it down immediately – for a high level of user protection
Functions
What’s Included in this Package
with accessory set
Order number:
0 601 222 100
- Collet 6 mm 2 608 570 084
- Spanner 13 mm (spare part number 3 607 950 025)
- Spanner 19 mm (spare part number 3 607 950 024)
