Technical data
| Additional data | |
|---|---|
| Cutting capacity in steel (400 N/mm²), max. | 1.6 |
| No-load stroke rate | 2,600 |
| Material that can be processed | Steel up to 400 N/mm² at 1.6 mm |
| Cutting track width | 5 |
| Pre-drilling for interior cut-outs | 21 |
| Smallest radius | 40 |
| Stroke rate under load | 2,100 |
| Weight | 1.8 |

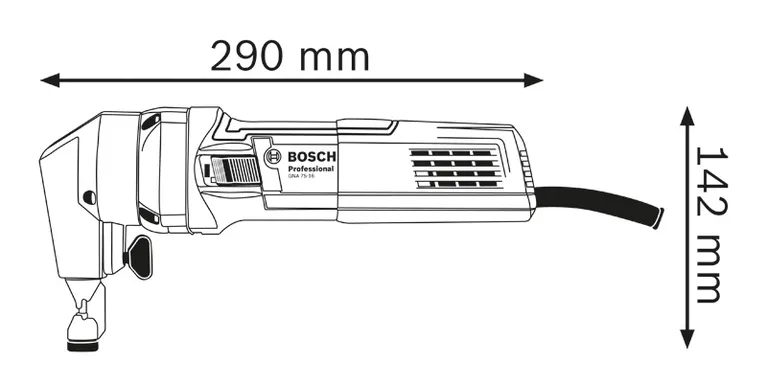

| Tool dimensions (length) | 290 |
| Tool dimensions (height) | 142 |
| Cutting capacity in steel (600 N/mm²), max. | 1 |
| Cutting capacity in steel (800 N/mm²), max. | 0.7 |
| Cutting capacity in aluminium (200 N/mm²), max. | 2 |
| Electric specifications | |
|---|---|
| Rated input power | 750 |
| Power output | 400 |
| Total vibration values (Cutting sheet metal) | |
|---|---|
| Vibration emission value ah | 10 |
| Uncertainty K | 1.5 |
Advantages
The powerful and handy tool for cutouts of all kinds
- Slim, narrow design for optimum handling
- The powerful and handy tool for cutouts of all kinds
- Working to scribe mark and template easily possible
Functions
What’s Included in this Package
with accessory set
Order number:
0 601 529 400
- Die plate 2 608 639 028
- Punch 2 608 639 027
