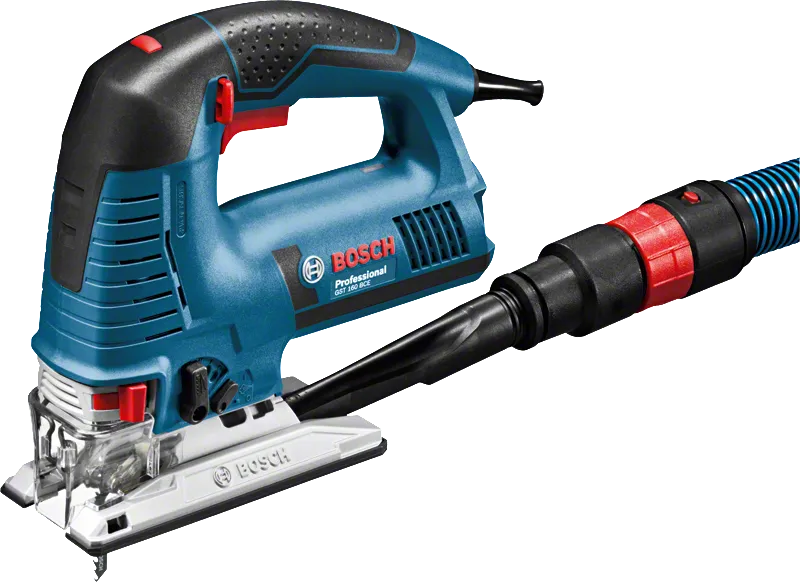

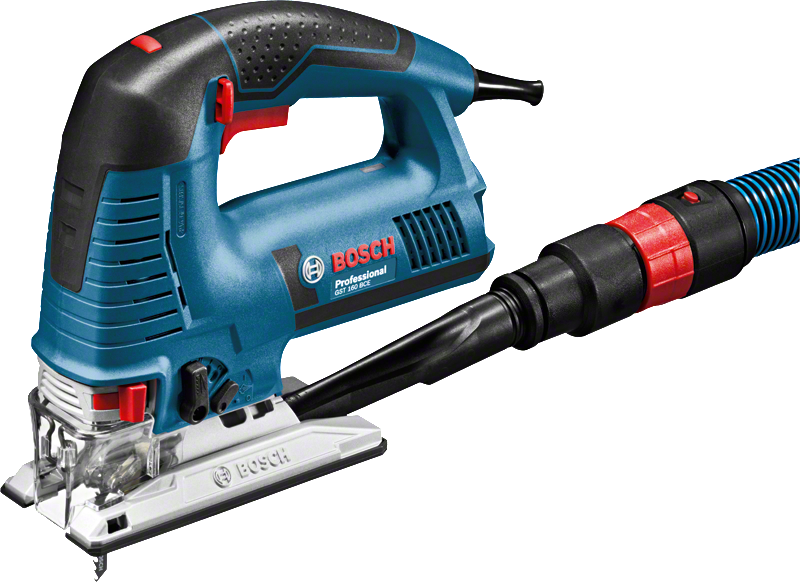

Jigsaw GST 160 BCE Professional

Superb precision: complete control for clean cuts!

Technical data
Additional data
Rated input power* 800
Stroke rate at no load 800 – 3.000   spm
Weight 2.3
Saw, stroke length 26
Cutting depth
Cutting depth in wood* 160
Cutting depth in aluminium* 20
Cutting depth in non-alloyed steel 10
Total vibration values (Sawing wood)
Vibration emission value ah 6.5
Uncertainty K 1.5
Total vibration values (Sawing sheet metal)
Vibration emission value ah 3.5
Uncertainty K 1.5

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 85 dB(A); Sound power level 96 dB(A). Uncertainty K= 3 dB.

Advantages

Superb precision: complete control for clean cuts!

  • Compact, lightweight design with small grip circumference enables optimum control when sawing
  • High-precision saw blade guidance due to patented double roller reduces saw blade bending – for excellent cut precision
  • Powerful 800 watt motor with Constant Electronic offers power reserves even in hard materials

Functions

Best work results with constant speed thanks to electronic regulation of speed - even under load
Saw blade pendulum action Adjustable 3-stage or 4-stage saw blade pendulum action.
High-precision saw blade guidance for excellent cut precision which reduces saw blade bending
Click & Clean System – 3 great benefits A clear view of the work surface: You work more precisely and faster
Harmful dust is extracted immediately: Protects your health
Less dust: Longer lifetime of tool and accessories
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Dust extraction directly into the integral dust bag on the tool and/or using an all-purpose dust extractor
Woodworking The professional power tools for woodworking from Bosch.

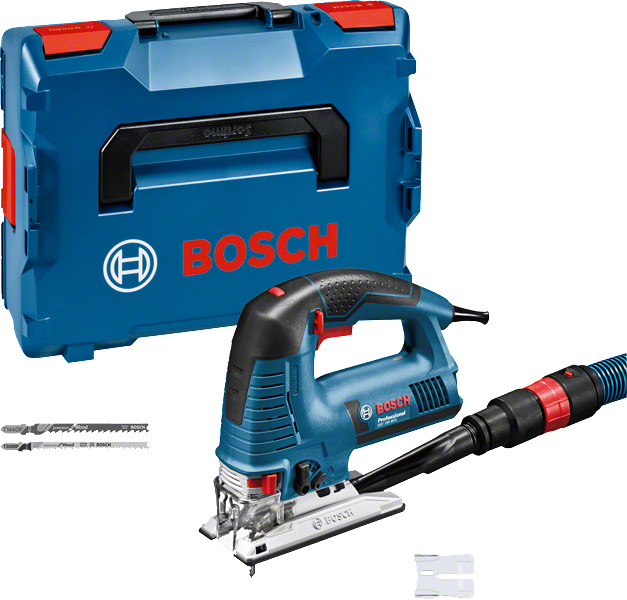

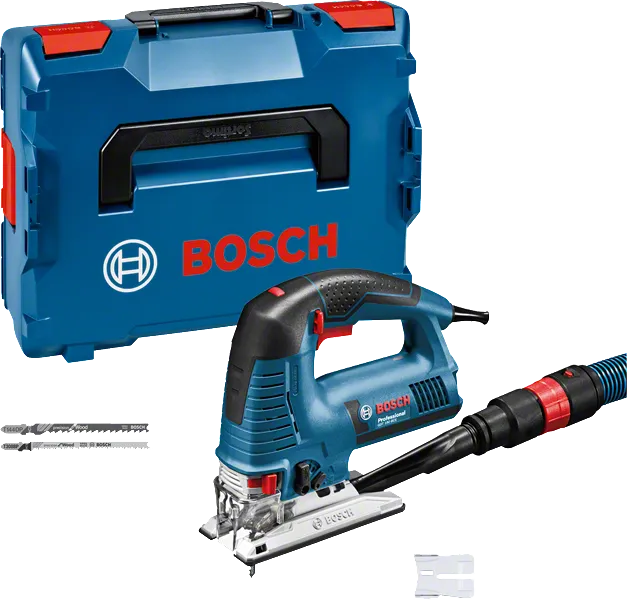

What’s Included in this Package
in L-BOXX with accessory set
in L-BOXX with accessory set
Order number: 0 601 518 000
  • Dust extraction adapter
  • L-BOXX 136 1 600 A00 1RR
  • Hood 2 601 016 096
  • 1 x jigsaw blade T 144 DP, Precision for Wood (available separately as set of 3: 2 608 633 A31)
  • 1 x jigsaw blade T 244 D, Speed for Wood (available separately as set of 3: 2 608 630 879)
  • 1 x jigsaw blade T 308 B, Extra-clean for Wood (available separately as set of 3: 2 608 663 750)
  • 1/1 L-BOXX inlay for tool 1 600 A00 2UN
