Jigsaw GST 90 E Professional

Top-class convenience in the entry level class

Technical data
Additional data
Rated input power 650
Stroke rate at no load 500 – 3.100   spm
Weight 2.3
Cable length 2.5

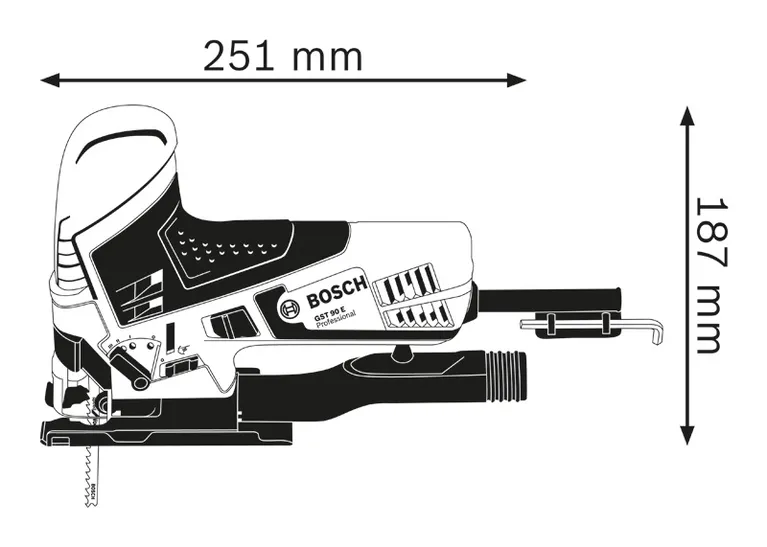

Tool dimensions (width) 79
Tool dimensions (length) 332
Tool dimensions (height) 187
Cutting depth
Cutting depth in wood 90
Cutting depth in aluminium 20
Cutting depth in non-alloyed steel 10
Total vibration values (Sawing wood)
Vibration emission value ah 8.5
Uncertainty K 1.5
Total vibration values (Sawing sheet metal)
Vibration emission value ah 8.5
Uncertainty K 1.5

Advantages

Top-class convenience in the entry level class

  • The reliable partner for day-to-day use
  • High level of convenience with Bosch SDS for easy, tool-free saw blade changes
  • Powerful 650 watt motor for fast work progress

Functions

No load speed 500 - 3100 min-1/rpm
Icon
Sawing in wood up to 90 mm
Saw blade pendulum action Adjustable 3-stage or 4-stage saw blade pendulum action.

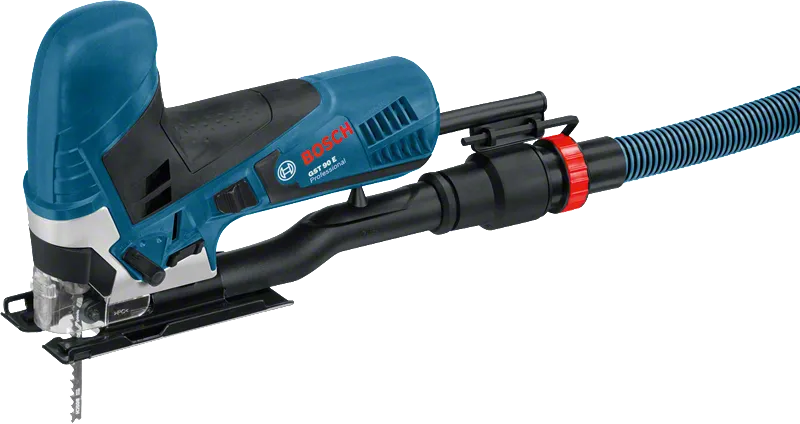

Dust extraction directly into the integral dust bag on the tool and/or using an all-purpose dust extractor
Click & Clean System – 3 great benefits A clear view of the work surface: You work more precisely and faster
Harmful dust is extracted immediately: Protects your health
Less dust: Longer lifetime of tool and accessories
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
What’s Included in this Package
in carrying case with hex key
in carrying case with hex key
Order number: 0 601 58G 000

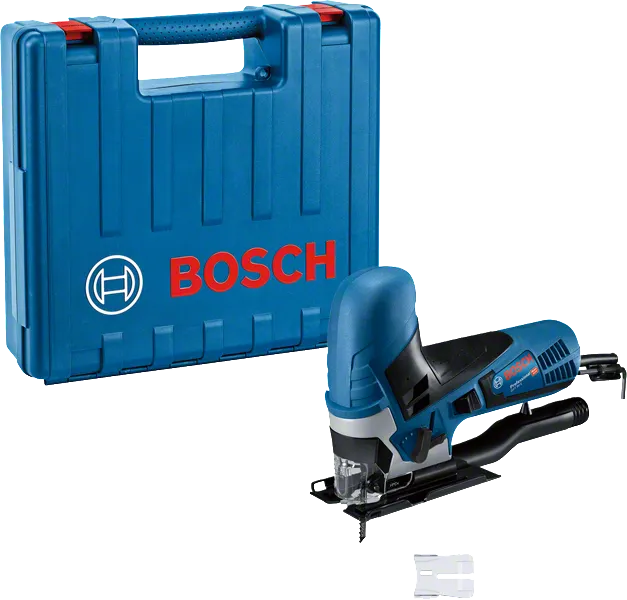

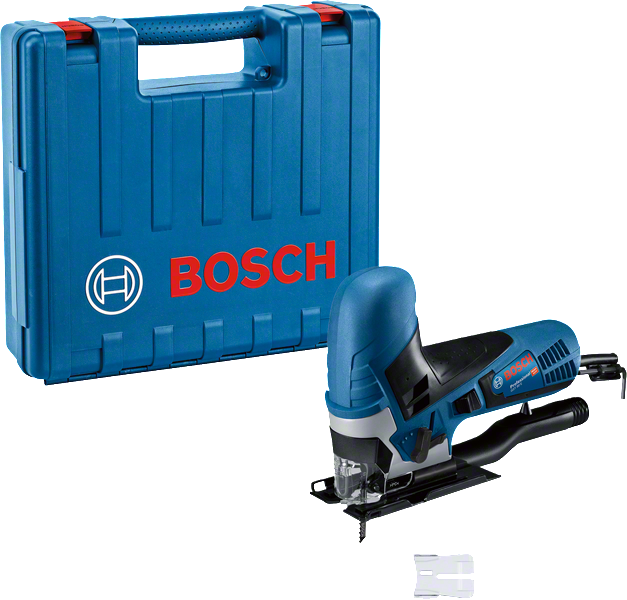

  • Carrying case
  • Hex key WAF 5 (spare part number 1 907 950 006)
  • Anti-splinter guard (spare part number 2 601 016 065)
  • Dust extraction set (spare part number 1 619 P07 167)
  • 1 x jigsaw blade T 144 D, Speed for Wood (available separately as set of 3: 2 608 630 560)

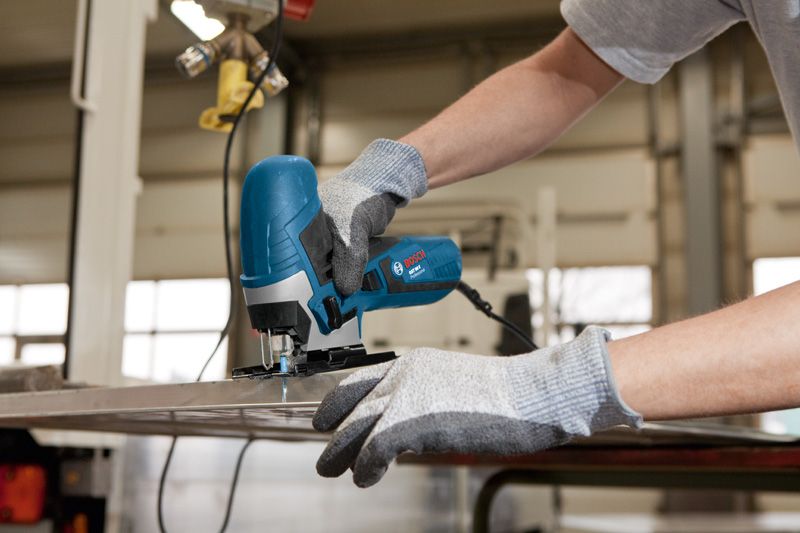

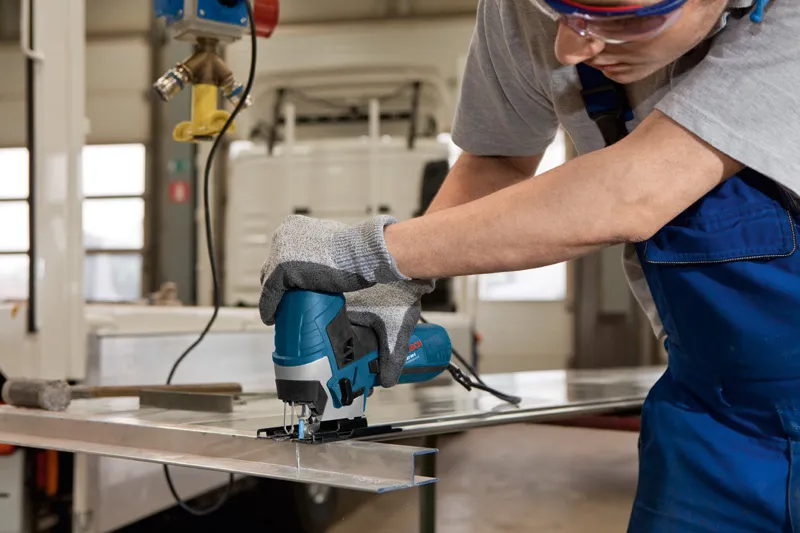

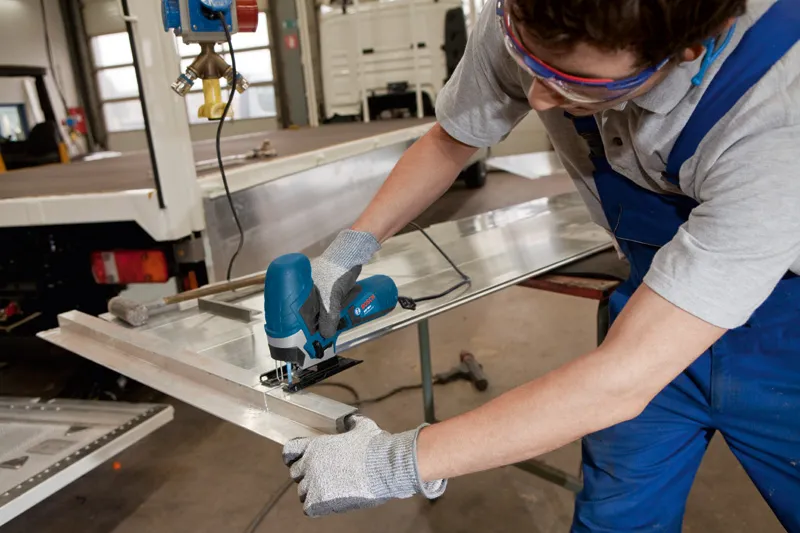

The GST 90 E in action!
