Detector D-tect 120 wallscanner Professional

Intuitive radar scanner for almost all materials

Technical data
Additional data
Bosch Radar Technology* yes
Max. detection depth* 120   mm

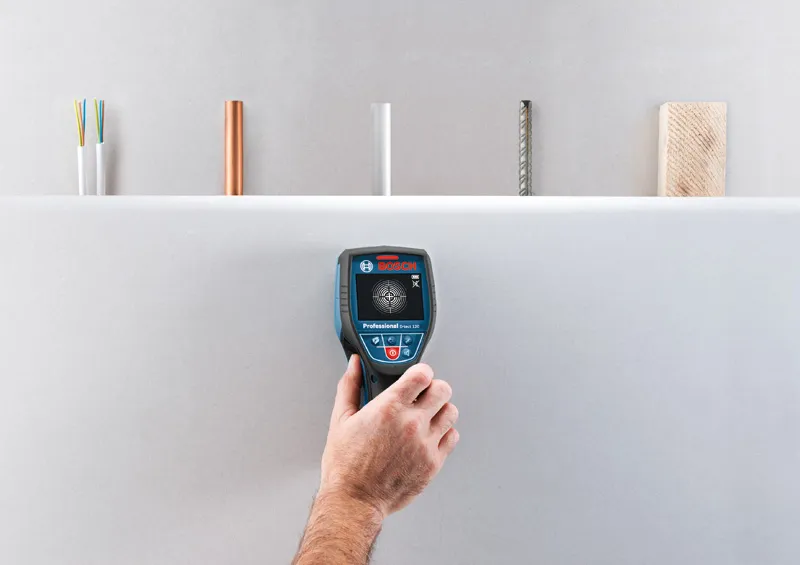

Detectable objects* magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), live cables, non-live cables, water-filled plastic pipes, wooden substructures
Detection depth, magnetic metal, max. 120   mm
Detection depth, non-magnetic metal, max. 120   mm
Detection depth, live cables, max. 60   mm
Detection depth, wooden substructures, max. 38   mm
Accuracy ± 10 مم   mm
Views Spot view
Wall types Concrete, Drywall, Universal
Material identification Live cable
Power supply 12 V Li-ion or 4 x 1.5 V LR6 (AA)
Automatic deactivation, approx. 5 minutes
Weight, approx. 0.5   kg
Additional function Dual Power (10.8 V/4 x 1.5 V LR6 AA); Centre finder with object direction indicator

* Highlighted Data

Advantages

Intuitive radar scanner for almost all materials

  • Spot measurement provides accurate detection on narrow surfaces
  • Centre finder offers visual guidance, to clearly identify the precise location of the object's centre
  • Dual Power Source allows for use with a 12 V Li-ion battery or with standard alkaline batteries

Functions

Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon
Icon

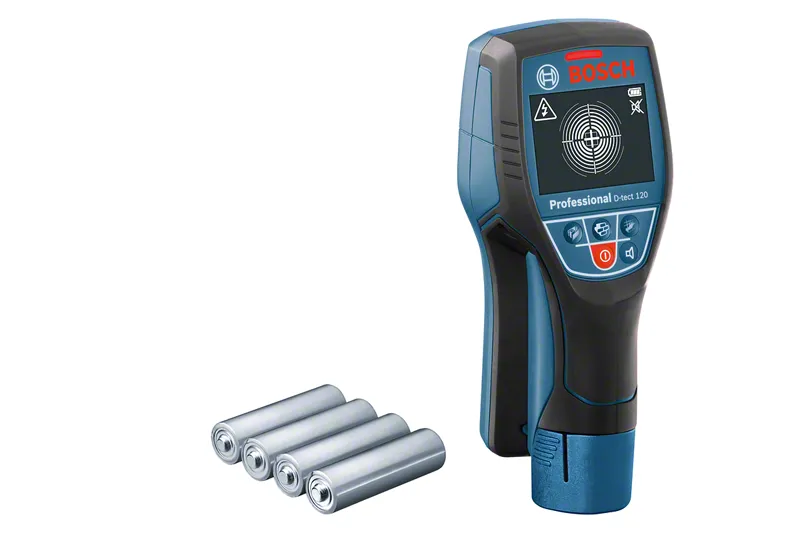

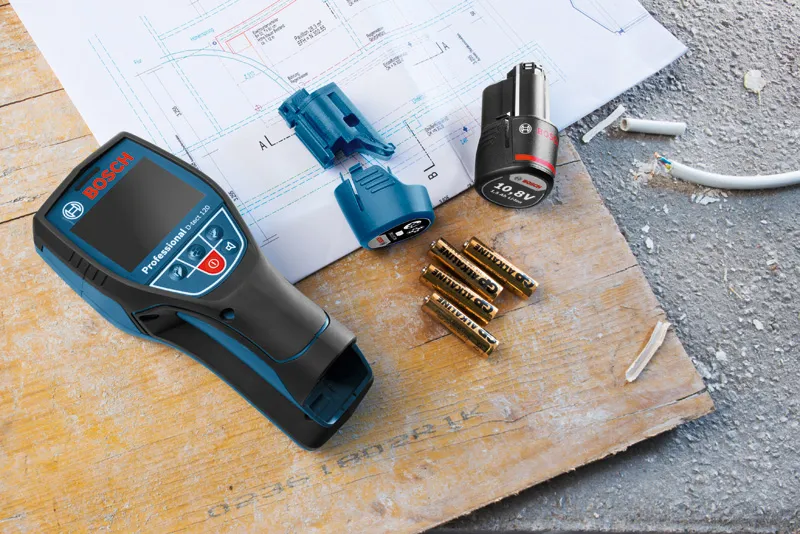

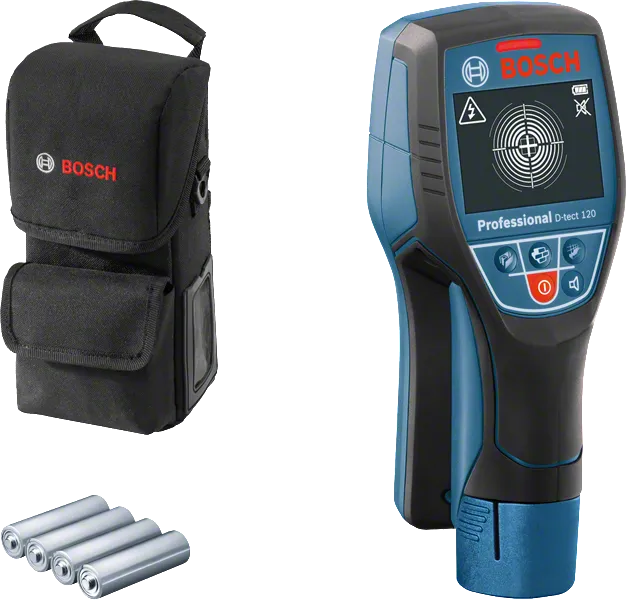

What’s Included in this Package
with 4 x battery (AA), adapter
with 4 x battery (AA), adapter
Order number: 0 601 081 300
  • AA1 alkaline battery adapter 1 608 M00 C1B
  • Quick-start card
  • 4 x 1.5 V LR6 battery (AA)

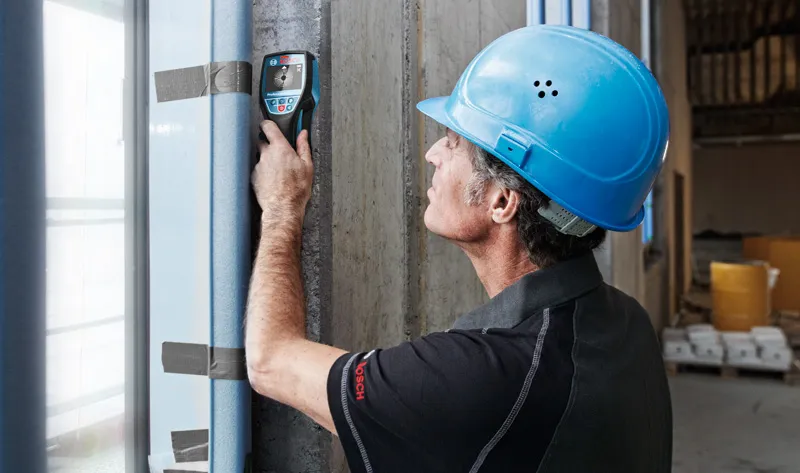

The D-tect 120 wallscanner in action!
