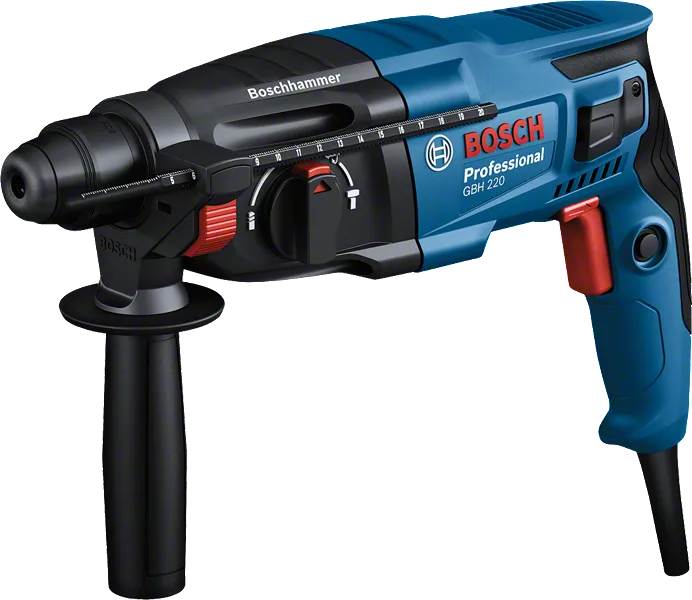

Rotary Hammer with SDS plus GBH 220 Professional

So compact, so powerful – Bosch’s rotary hammer now within reach
  • Symbolimage
  • Symbolimage
GBH 220 Professional
Technical data
Additional data
Rated input power 720   W
Impact energy 2   J
Weight 2.3   kg
Impact rate at rated speed 0 – 4,800   bpm

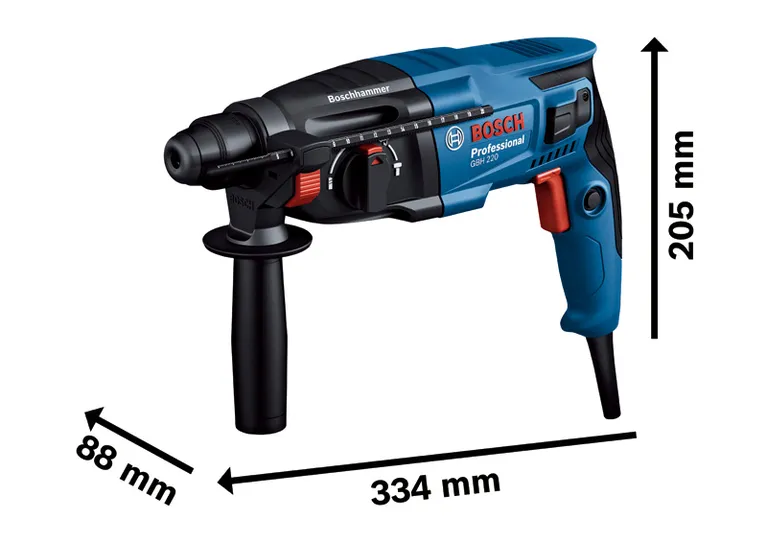

Tool dimensions (width) 88   mm
Tool dimensions (length) 334   mm
Tool dimensions (height) 205   mm
Tool holder SDS plus
Drilling range
Drilling dia. concrete, hammer drill bits 4 – 22   mm
Max. drilling diameter in metal 13   mm
Max. drilling diameter in wood 30   mm
Max. drilling diameter concrete 22   mm
Total vibration values (Hammer drilling in concrete)
Vibration emission value ah 14.7   m/s²
Uncertainty K 1.5   m/s²
Total vibration values (Chiselling)
Vibration emission value ah 11.9   m/s²
Uncertainty K 1.5   m/s²


So compact, so powerful – Bosch’s rotary hammer now within reach

  • Powerful 720 W motor and 2.0 J of impact energy for effective hammer drilling in concrete (up to 22-mm diameter)
  • Three-mode rotary hammer for hammer drilling, drilling, and chiselling – ensuring versatility and convincing results
  • Compact rotary hammer offers professional Bosch hammer performance within reach


Rated power input 720 W
Optimal power transmission for small hammers
Combi hammer with chisel function No rotary motion; impact effect only
Drilling in concrete up to 22 mm
What’s Included in this Package

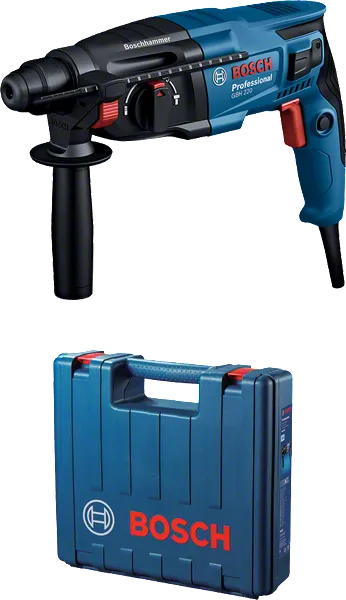

in carrying case
in carrying case
Order number: 0 611 2A6 020
  • Carrying case
  • Auxiliary handle 1 619 P16 286
  • Depth gauge 2 603 001 009
