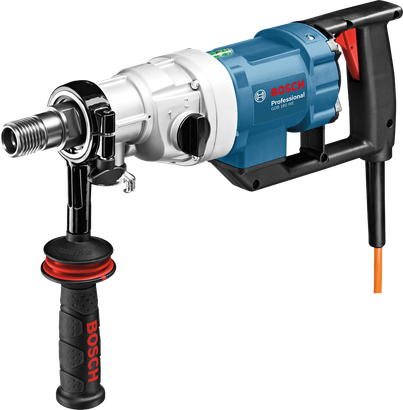

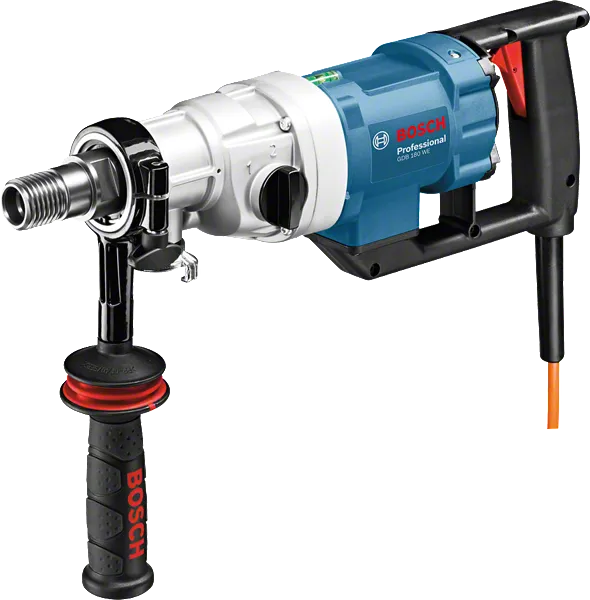

Diamond Drill GDB 180 WE Professional

The compact powerhouse for drilling holes of up to 180 mm in concrete

Technical data
Additional data
No-load speed 900/2,800   rpm
Rated input power 2,000   W
Tool holder 1 1/4" UNC
Weight 5.2   kg
Drilling range 180   mm

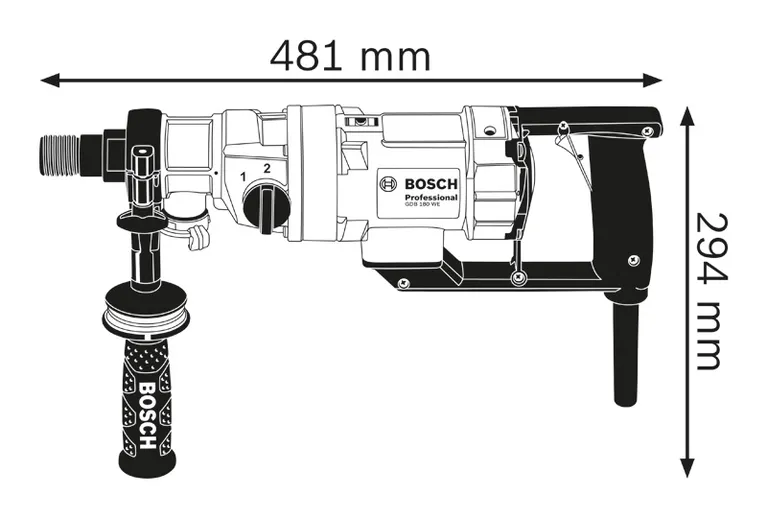

Tool dimensions (width) 109   mm
Tool dimensions (length) 481   mm
Tool dimensions (height) 294   mm
Suitability Wet drilling in concrete
Drilling range, bench-mounted
Concrete, possible range 180   mm
Masonry, possible range 180   mm
Total vibration values (Drilling in concrete)
Vibration emission value ah 4.8   m/s²
Uncertainty K 1.5   m/s²

Advantages

The compact powerhouse for drilling holes of up to 180 mm in concrete

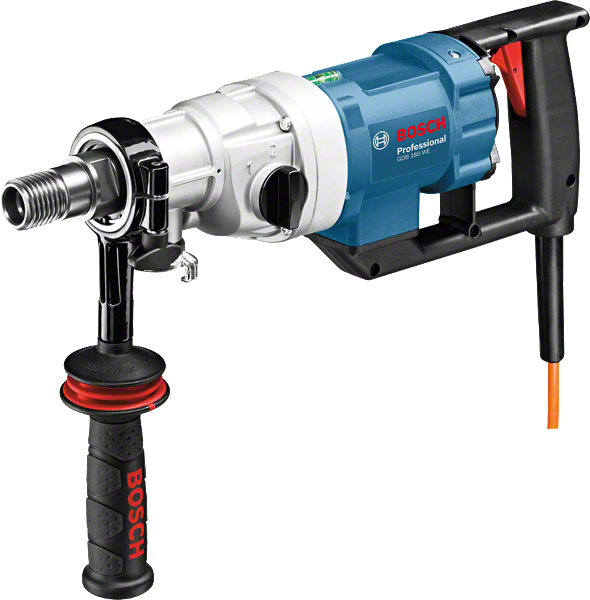

  • Powerful 2000 watt motor for breakthroughs in reinforced concrete up to 180 mm
  • Long lifetime due to robust design and gearbox with oil-bath lubrication
  • Wet and dry application; both hand-held and stand-mounted

Functions

Optimized torque for screwdriving and speed for drilling thanks to 2-speed planetary gearbox

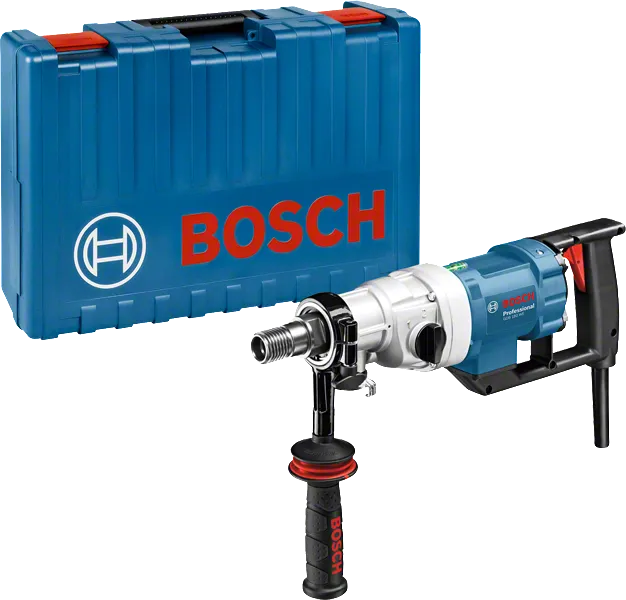

What’s Included in this Package

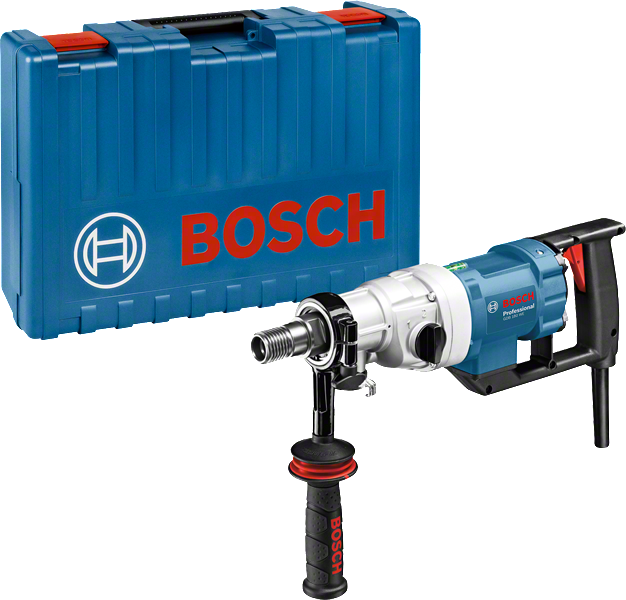

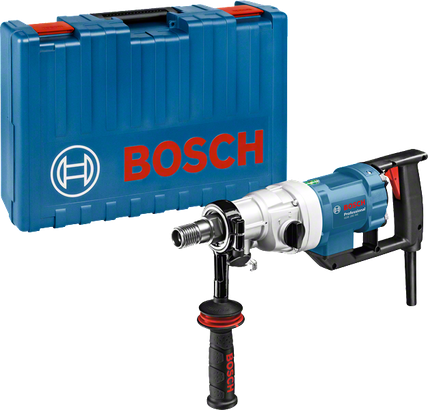

in carrying case with dust extraction accessory
in carrying case with dust extraction accessory
Order number: 0 601 189 800
  • Dust extraction adapter
  • Ball valve
  • Carrying case

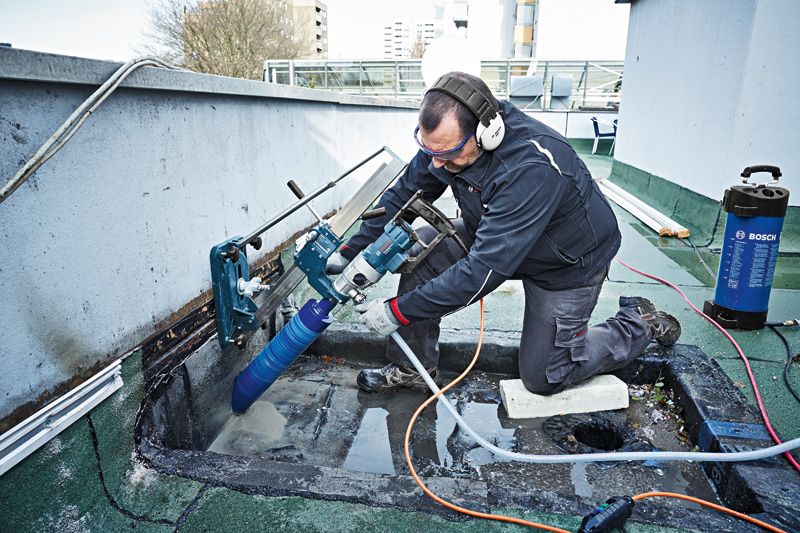

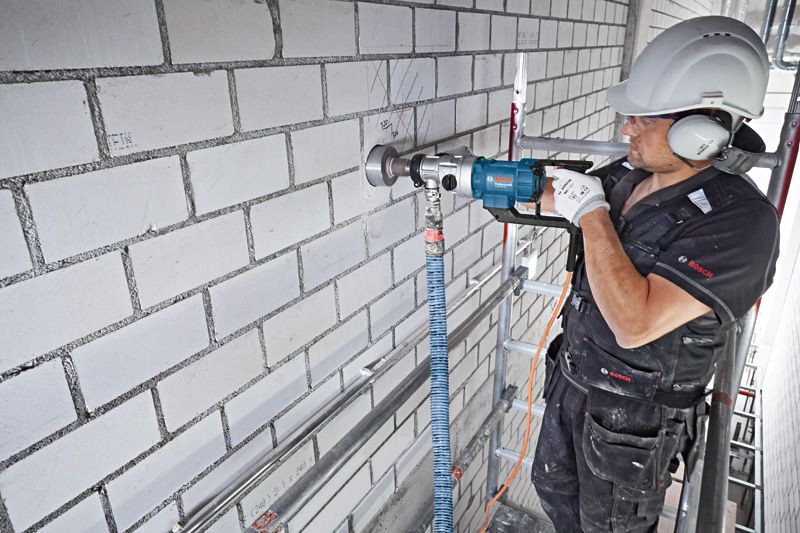

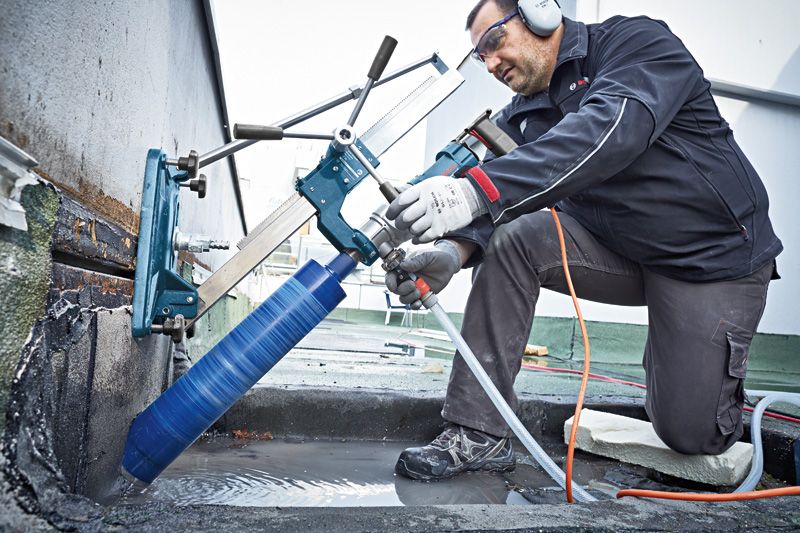

The GDB 180 WE in action!
