Technical data
| Additional data | |
|---|---|
| Working range* | 30 m |
| Working range with receiver* | 120 m |
| Accuracy* | ± 0.2 mm/m |
| Laser diode | Line: 630 - 650 nm, < 10mW |
| Operating temperature, from | -10 °C |
| Operating temperature, up to | 40 °C |
| Operating temperature | -10 – 40 °C |
| Storage temperature, from | -20 °C |
| Storage temperature, up to | 70 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range with receiver, value | 120 m |
| Working range without receiver, value | 30 m |
| Working range without receiver | 30 m |
| Self-levelling range | ± 4° |
| Levelling time | 4 s |
| Dust and splash protection | IP 54 |
| Power supply | 12 V Li-Ion battery, 4 x 1.5 V LR6 (AA) |
| Operating time (max.) | 8 h (Li-Ion) and 6 h (4 x AA) in 3-line mode |
| Tripod thread | 1/4", 5/8" |
| Weight, approx. | 0.9 kg |
| Colour of laser line | red |

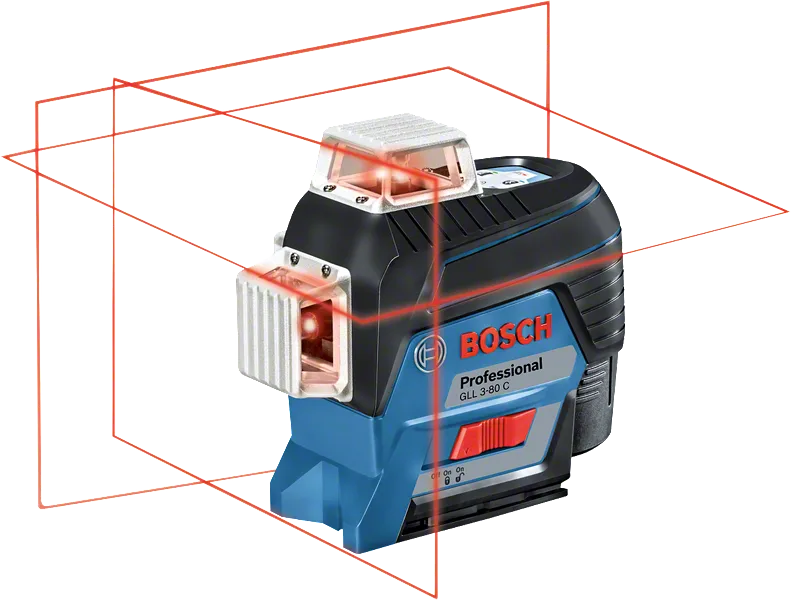

| Projection | 3 x 360° line |
| Compatible laser receivers | LR 6 + 7 |
* Highlighted Data
Advantages
Visibility on a new level in 3 x 360°. Simply Connected.

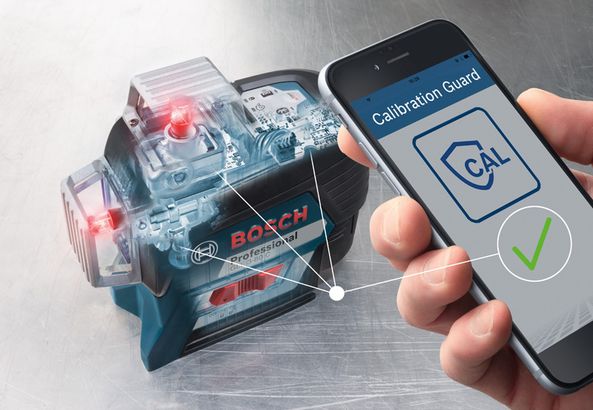

- Very precise CAL Guard monitoring and remote-control use with Bluetooth®-connected smartphone app
- High visual clarity is provided by high-powered diodes

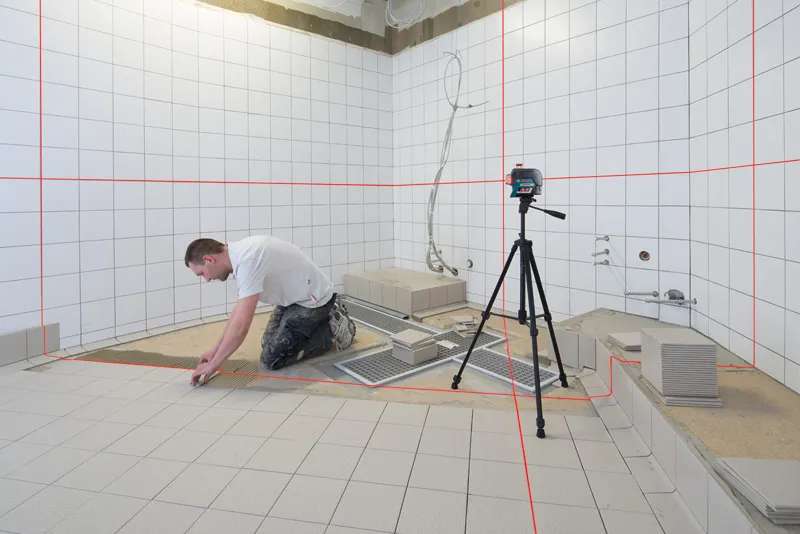

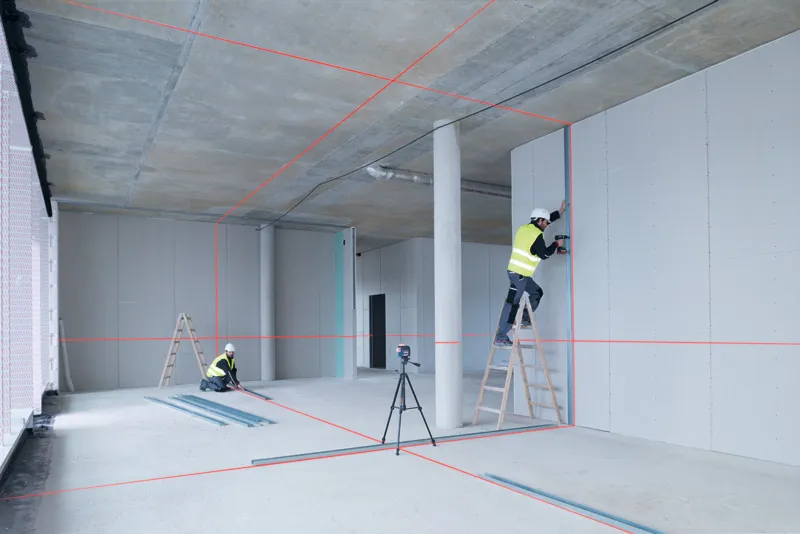

- 3 x 360° lines allow simultaneous horizontal and vertical levelling applications for highly efficient work
Functions

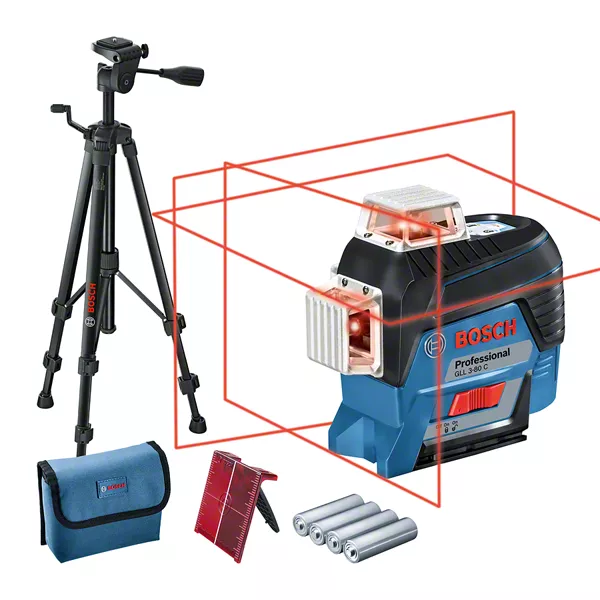

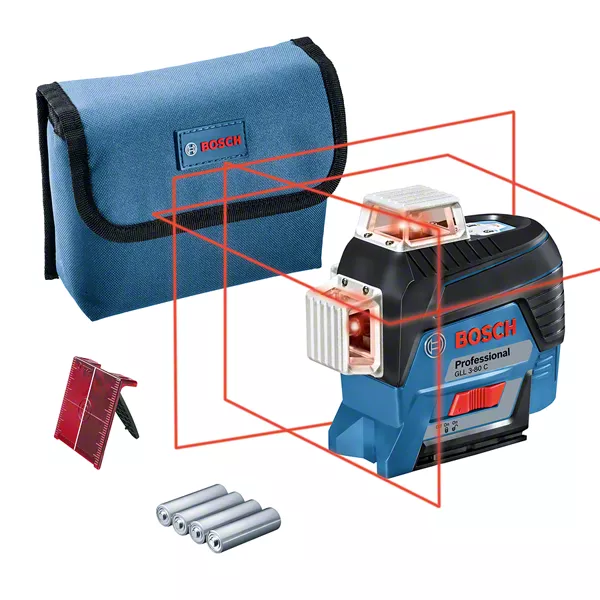

What’s Included in this Package
with 4 x battery (AA), accessory set
Order number:
0 601 063 R01
- 4 x 1.5 V LR6 battery (AA)
- AA1 alkaline battery adapter 1 608 M00 C1B
- Laser target plate
- Pouch
- Building tripod BT 150 Professional 0 601 096 B00
