Thermo cameras & detectors

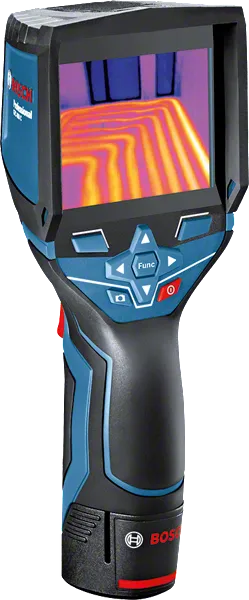

GTC 400 C
GTC 400 C

GTC 400 C Professional

Thermo Camera

GTC 400 C
GTC 400 C

Immediate visualisation of temperature differences with smart documentation

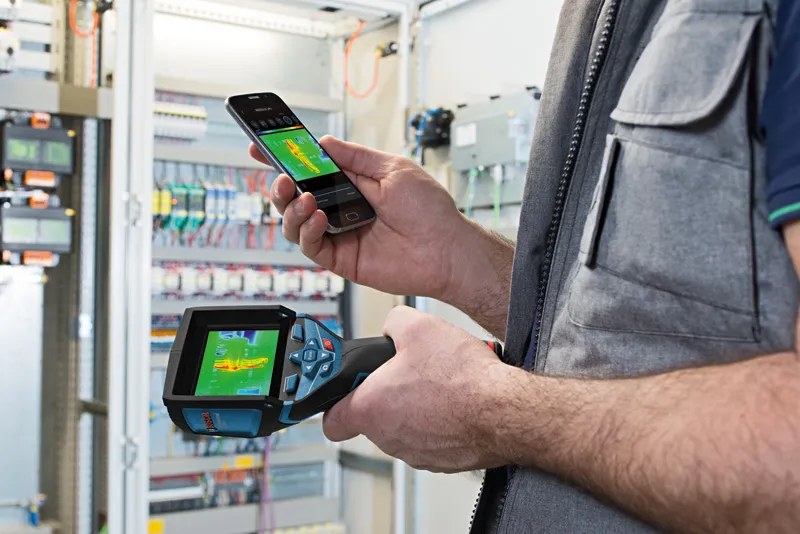

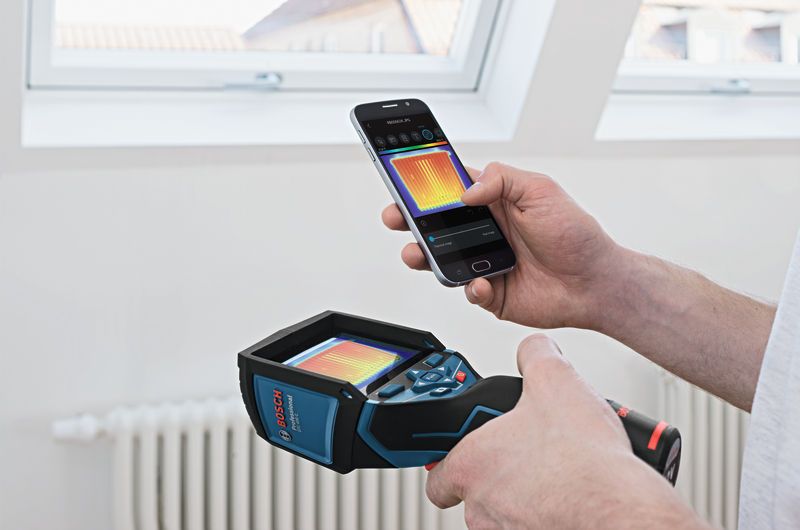

  • Fast exchange of data and easy documentation of thermal images with the Bosch Thermal App
  • Picture-in-picture technology overlays thermal and real images for easy-to-see localisation of the measurement
  • Flexible battery system can be powered by a 12 V LI-ION battery or with standard alkaline batteries

Functions & key features

IR Sensor 160 x 120 pixel
Dual power source
IP53 dust protected and protected against water spray

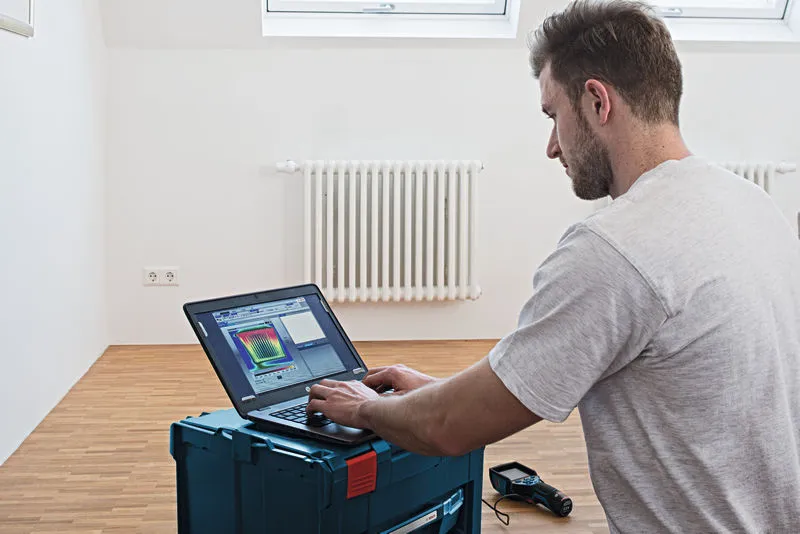

GTC transfer software
Visual camera

Your Selection

  • in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, Hand strap
Show variant
32,394.00 EGP Recommended retail price including VAT

Currently not available online

Check availability on location
Find a local dealer
in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, Hand strap 0 601 083 101
32,394.00 EGP Recommended retail price including VAT
Find a local dealer

GTC 400 C Professional

Your Selection

in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, Hand strap

Order number: 0 601 083 101

32,394.00 EGP

Recommended retail price including VAT

Find a local dealer

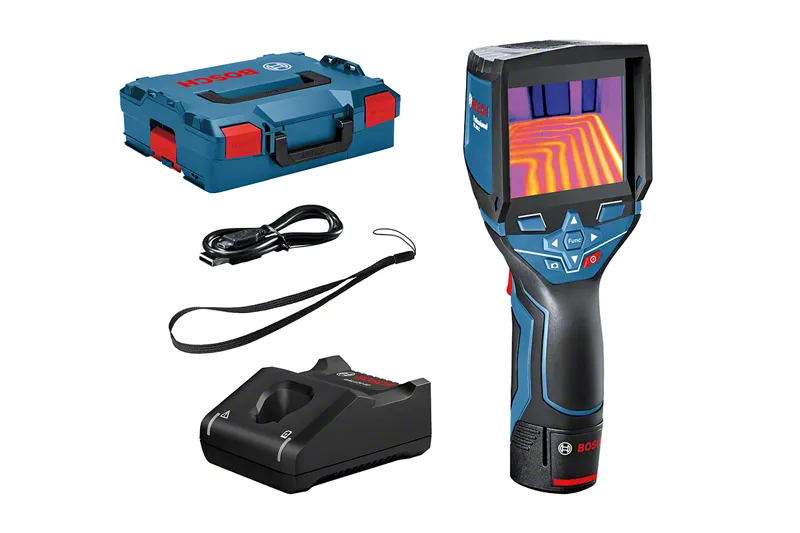

Included in this variant

  • L-BOXX 136
    Order number: 1 600 A01 2G0
  • Micro USB cable
    Order number: 2 609 120 670
  • Quick charger GAL 12V-40 Professional
    Order number: 1 600 A01 9R3
  • Hand strap
  • L-BOXX inlay for tool
  • L-BOXX inlay accessories
  • 1 x battery GBA 12V 2.0Ah
    Order number: 1 600 Z00 02X
Your selection

Technical data

Additional data
Measurement range -10 °C to +400 °C
Measuring accuracy of IR ± 3.0 °Cᵇ
Battery voltage 12
Thermal sensitivity (NETD) <50 mK
Resolution 0.1 °C
Size of IR sensor 160x120 px
Number of measuring points 19,200
Field of view (FOV) 53x43 °
Power supply and runtime 4 x 1.5 V LR6 (AA) 1 x GBA 12V 1 x GBA 10.8V
Frame buffer (number of images) 500
Memory type Internal memory
File format of image .jpg
Data transfer MicroUSB, Wi-Fi
Dust and splash protection IP 53
Weight 0.54 kg
Size of display 3,5"
Operating temperature -10 – 45 °C
Storage temperature -20 – 70 °C
Focus distance, minimum 0.3 m
Measuring application Thermal image

GTC 400 C Professional: Further information

Product Highlights

The thermal camera GTC 400 C Professional measures and visualises temperature differences in seconds and easily records the results. The Bosch Thermal App documents and forwards measured values fast. Intelligent picture-in-picture technology overlays detailed real and heat-sensing images (19,200 px), resulting in a high-quality image and clear localisation of temperature differences. With its dual power system, a 12 V LI-ION battery or standard alkaline batteries are suitable power supplies.

Equipment & Application

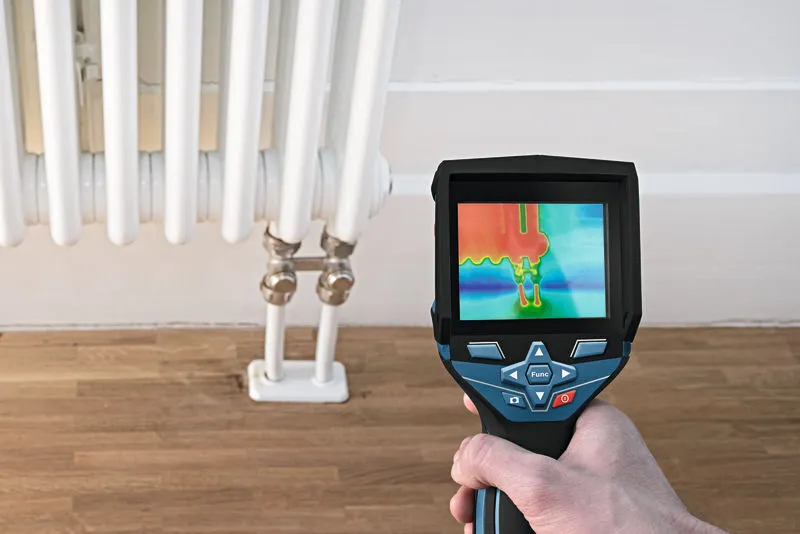

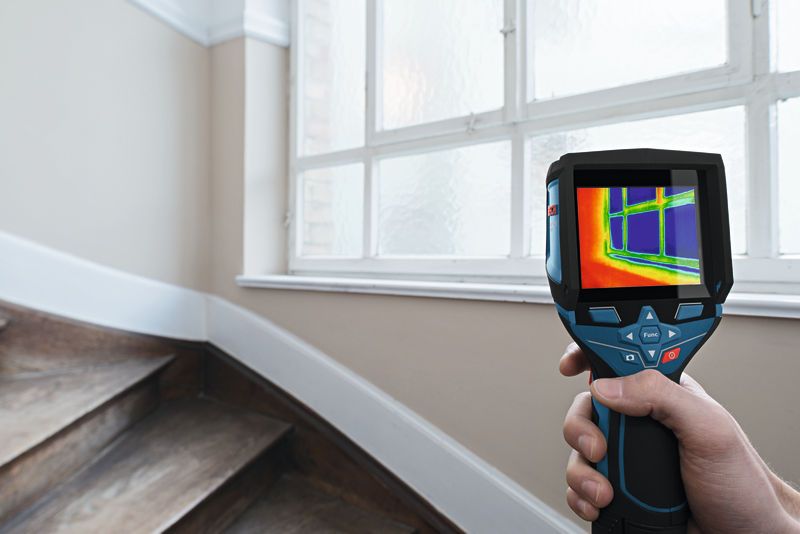

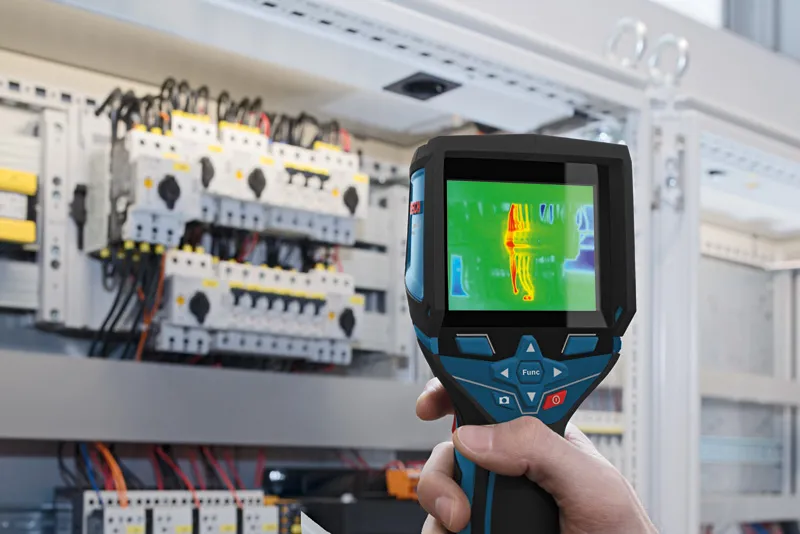

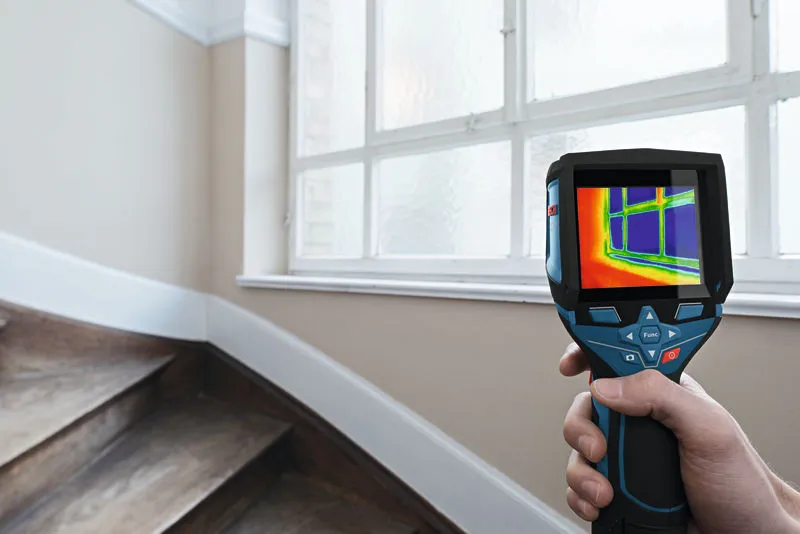

It is ideal for inspecting insulation, heating systems, heat flow, and for finding overheated parts.

Additional Information

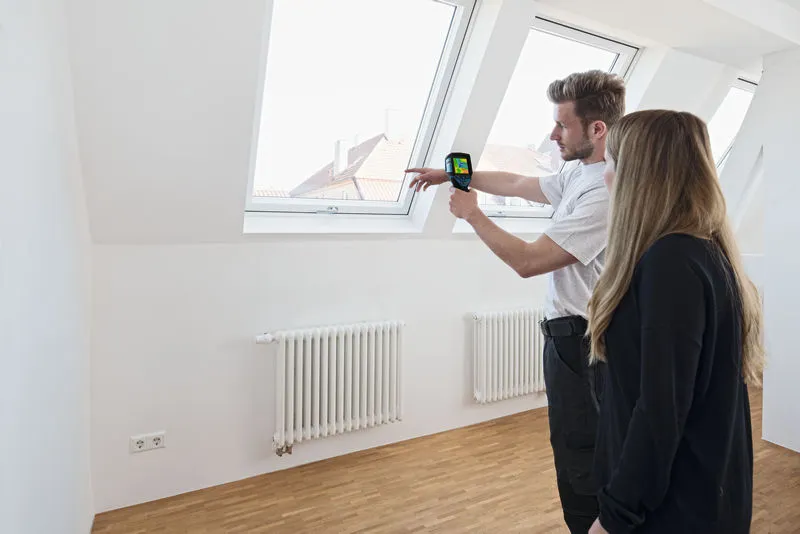

The smart GTC 400 C Professional is perfect for supporting a variety of specialists in every project phase: From customer consultations by exhibiting clear images of the situation to preparatory tasks such as inspecting where lines are installed, through project documentation and even follow-up work. The measuring tool must not be used for human medical purposes.

Need a spare part?

Here you will find the right spare parts for your professional Bosch tool quickly and easily.

Select a part

Order online

Pay

Receive your item

Find a spare part

Find the right spare part

Our products can be clearly identified using the ten-digit part number on the tool. Please make sure that the part number below matches the number in the information box on your tool. If the part number below does not match the one on your tool, please use our spare parts catalogue to search directly for the part you require.

Order number

Part number

3601K83100

Product name

GTC 400 C

Description

Thermo Camera

Yes, the part number matches.
I'm looking for a spare part for this product.

Go to spare part

No, the part number does not match.
I'm looking for a spare part for a different product.

Browse spare parts catalogue

Downloads

User Manual

Instruction manual | GTC 400 C (PDF 5.0 MB) Quick guide | GTC 400 C (PDF 4.9 MB) Instruction manual | GTC 400 C (Online version)
Download GTC Transfer Software (v1.7.2) – Windows 7, 8, 10

Download GTC Transfer Software (v1.7.2) – Windows 7, 8, 10 The right tool for your application
