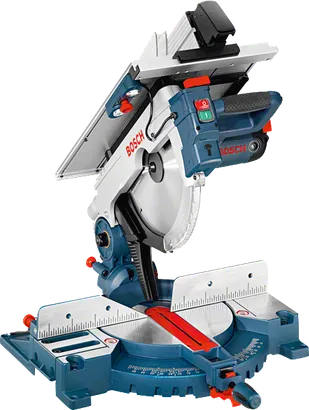

Combination Saw GTM 12 JL Professional

Multi-talented tool with 100% precision

Technical data
Additional data
Mitre setting* 48 ° L / 48 ° R
Saw blade diameter* 305 mm
Bevel setting* 47 ° L / 2 ° R
Rated input power 1,800 W
Cutting capacity, 0° 95 x 150 mm
Cutting capacity, 45° mitre 95 x 90 mm

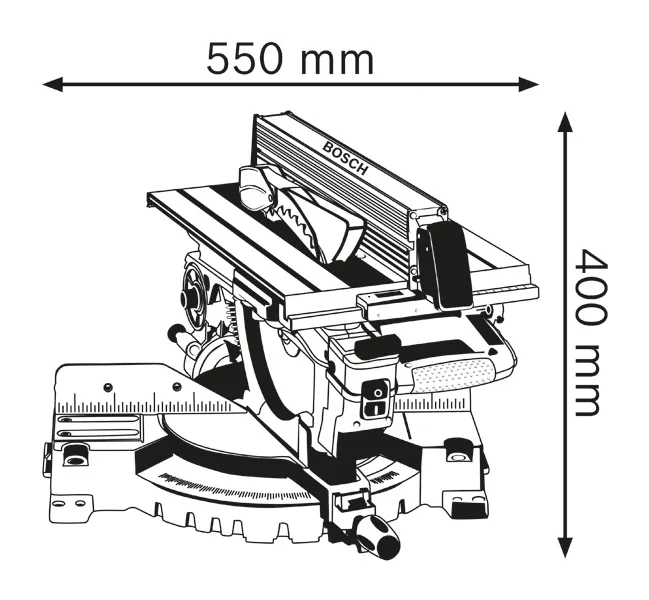

Tool dimensions (width x length x height) 660 x550 x400 mm
No-load speed 3,800 rpm
Cutting height of table saw 51 mm
Saw blade bore diameter 30 mm
Weight 21 kg
Total vibration values (Sawing wood)
Vibration emission value ah 3.4 m/s²
Uncertainty K 1.5 m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 91 dB(A); Sound power level 104.5 dB(A). Uncertainty K= 3 dB.

Advantages

Multi-talented tool with 100% precision

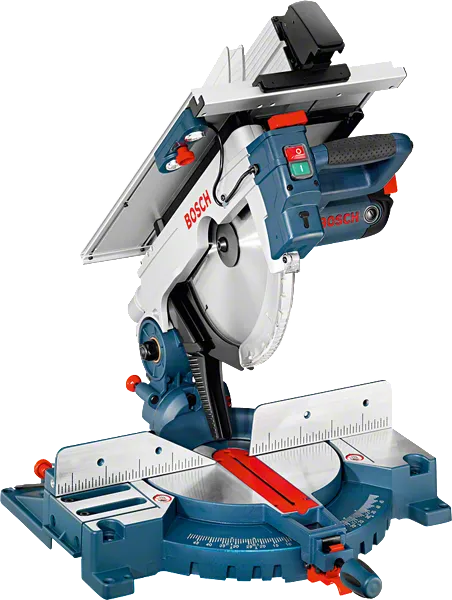

  • Table saw and mitre saw in one tool

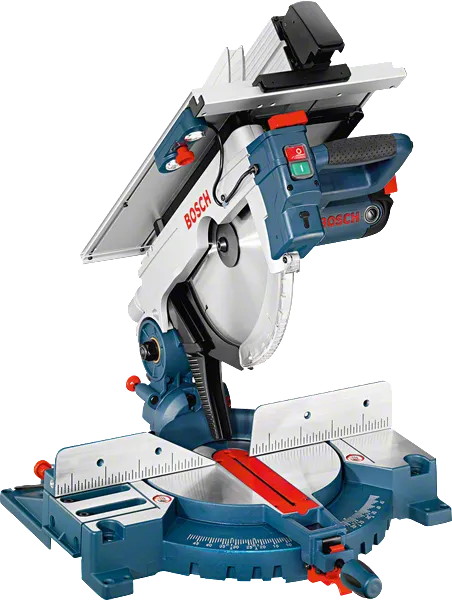

  • Precise work with integrated laser
  • Powerful 1800 W motor for fast work progress (up to 95 mm cutting depth – mitre function and up to 51 mm cutting height – table saw function)

Functions

Laser class 2 Laser class for measuring tools.
Easy disc / tool change thanks to spindle lock
Click & Clean System – 3 great benefits A clear view of the work surface: You work more precisely and faster
Harmful dust is extracted immediately: Protects your health
Less dust: Longer lifetime of tool and accessories
 Soft start as the load and torque of the motor are temporarily reduced during start-up.
Dust extraction directly into the integral dust bag on the tool and/or using an all-purpose dust extractor
What’s Included in this Package
with accessory set
with accessory set
Order number: 0 601 B15 001
  • 1 x circular saw blade, Optiline Wood, 305 x 30 x 2.5 mm, 40 2 608 640 440
  • Push stick 1 619 P04 042

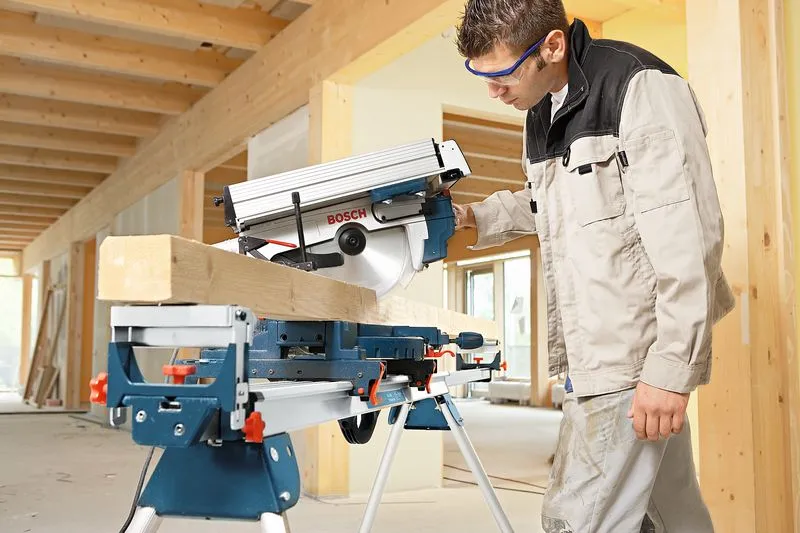

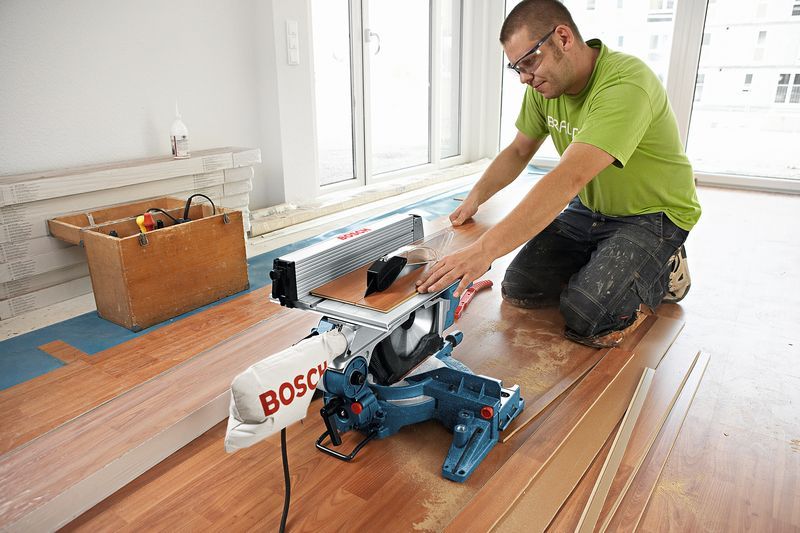

The GTM 12 JL in action!
