Laser Receiver LR 1 Professional

More benefit thanks to accessories
  • Symbolimage
  • Symbolimage

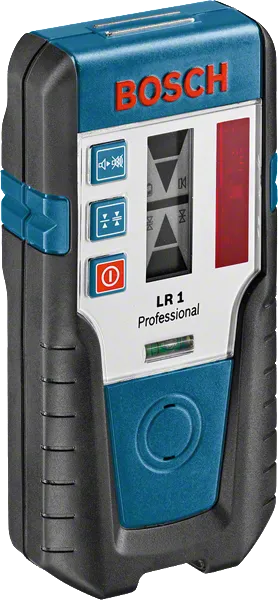

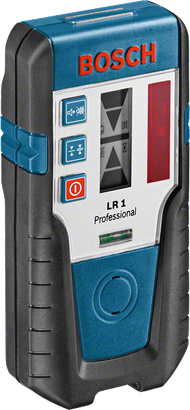

LR 1 Professional
Technical data
Additional data
Range of 0 – 200   m
Power supply 1 x 9 V 6LR61 Block
Dust and splash protection IP 65
Remote control -
Receiver -
Measuring accuracy (fine/rough) ± 1 mm/± 3 mm
Weight, approx. 250   g

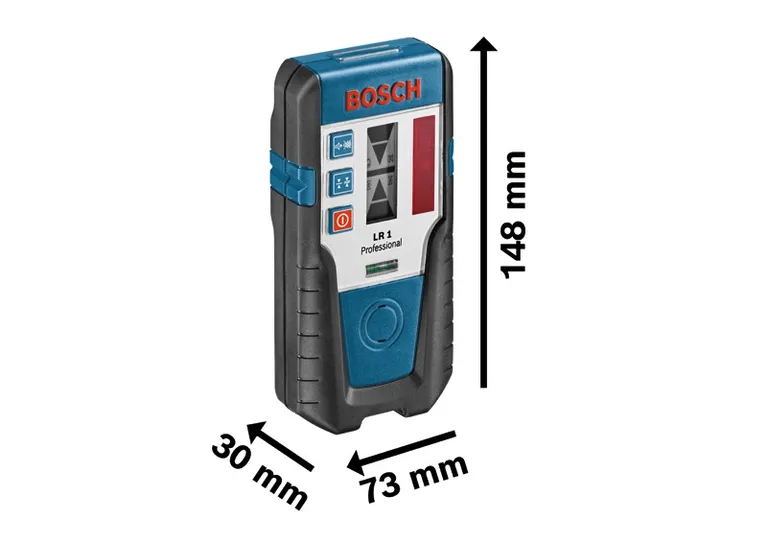

Tool dimensions (width) 75   mm
Tool dimensions (length) 145   mm
Tool dimensions (height) 30   mm
Type of receiver Rotation lasers


More benefit thanks to accessories

  • Handy receiver for indoor and outdoor use for ranges of up to 200 m in combination with GRL 400 H Professional and GRL 300 HV Professional Rotation Lasers
  • Visual and audible alignment of the laser beam plane
  • Dust and splash protection (IP65)


Accuracy Measuring accuracy ± 1.0 mm
Accuracy Measuring accuracy ± 3.0 mm
Working range of LR 1 Range with receiver 400 m
Battery Indicator Battery indicator
Reception range 4.0 cm Reception range 4 cm
Sound Activation Audible alignment of the laser beam level
Strong Magnets Strong magnets for better mounting
Two Sided Display Display on front and back

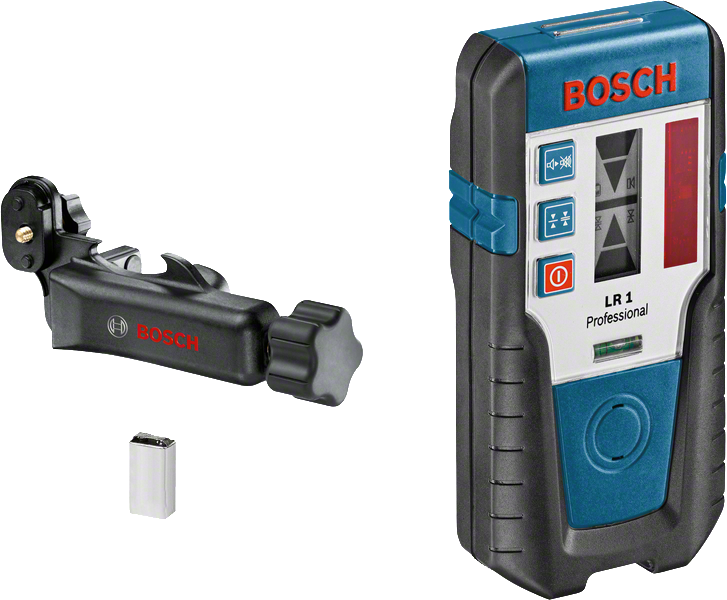

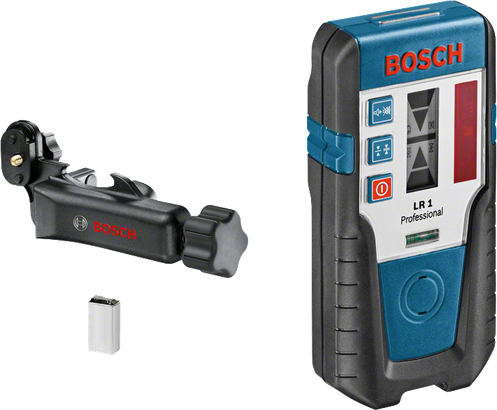

What’s Included in this Package
with Accessory, Bracket (1 608 M00 70F)
with Accessory, Bracket (1 608 M00 70F)
Order number: 0 601 015 400
  • Bracket 1 608 M00 70F
  • 1 x 9 V block battery (6LR61)
