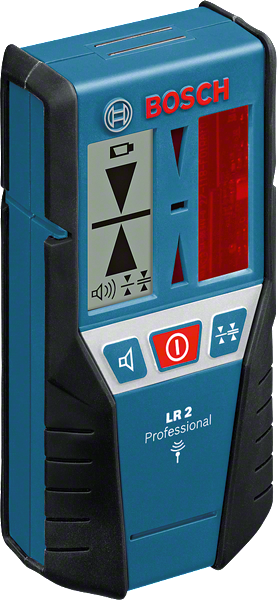

High-performance Receiver LR 2 Professional

Increased benefit with accessories

Technical data
Additional data
Range of 5 – 50   m
Power supply 1 x 9 V 6LR61 Block
Dust and splash protection IP 54
Remote control -
Receiver -
Weight, approx. 270   g

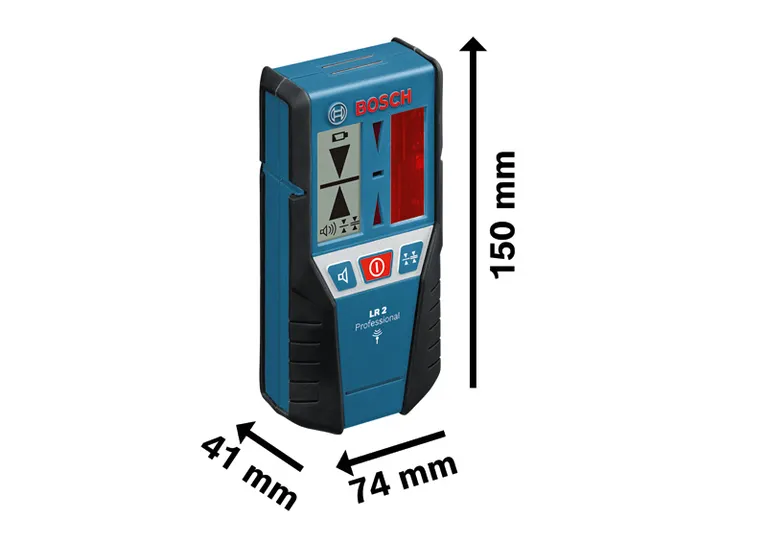

Tool dimensions (width) 41   mm
Tool dimensions (length) 74   mm
Tool dimensions (height) 150   mm
Measuring accuracy (fine/rough) ± 1 mm/± 3 mm
Type of receiver Combi- and line lasers

Advantages

Increased benefit with accessories

  • Handy receiver for ranges of up to 50 m
  • Easily attached to a staff
  • Alignment of the laser beam plane, visual (display and LEDs) and audible signals, for working in various lighting conditions

Functions

Red beam detection
Reception area 40 mm
Display
Easy attachment due to magnets on the top of the receiver
IP54 dust and splash water protection
Accuracy Measuring accuracy ± 1.0/3.0 mm
Working range of GLL 2-50 + LR2 receiver Range with receiver 50 m
Working range of GLL 2-80 P + LR2 receiver Range with receiver 40 m

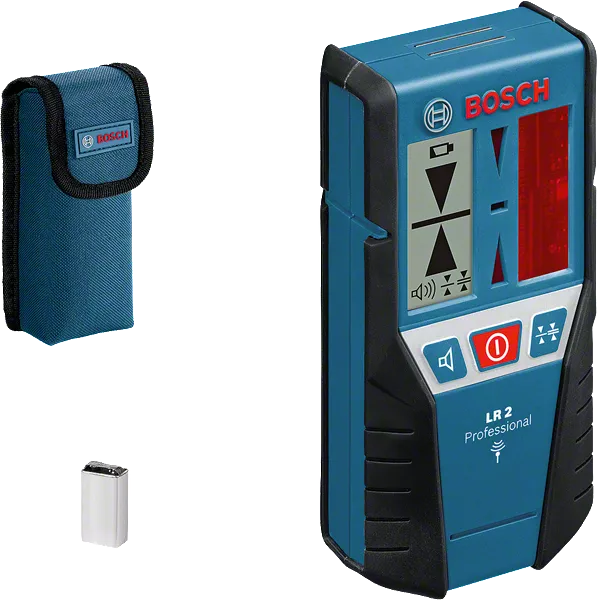

What’s Included in this Package
with Accessory
with Accessory
Order number: 0 601 069 100
  • 1 x 9 V block battery (6LR61)

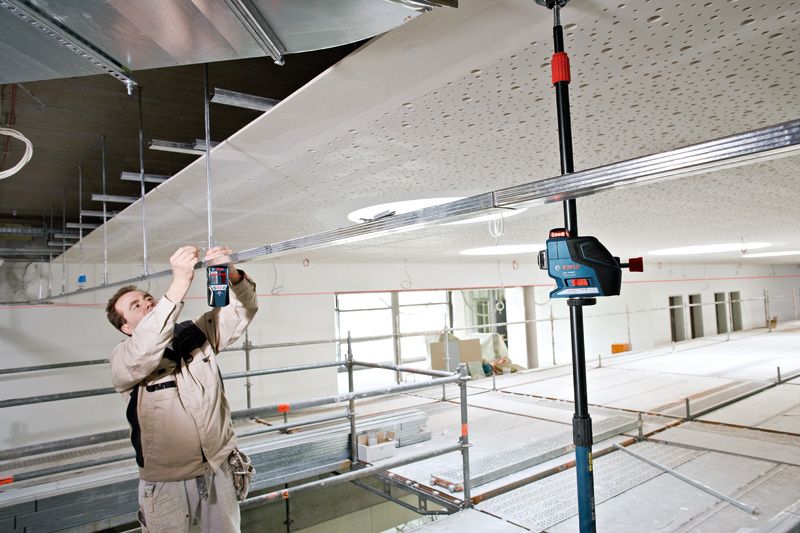

The LR 2 in action!
