SDS plus-3 Drill Bit

For rotary hammer drills

Durability in Concrete
  • SDS plus-3 Drill Bit offers durability while drilling concrete
  • 4-flute dura design provides effective dust removal for increased endurance
  • High-alloy steel produced with optimised hardening technology to withstand wear
  • Indented cutting edges made from a Bosch-controlled carbide blend provide additional resistance
  • PGM guarantee in compliance with tight tolerances, exactly drilled holes and firm hold of fixings
  • Fits all SDS plus rotary hammers
View more
Materials
Concrete
Lime and sand bricks
Solid brick
Concrete building block
Hard stone

Select options

Diameter mm

Working length mm

Total length mm

Shank diameter mm

Width across flats mm

Choose a pack size

Selected variant

Available product options(80)
SDS plus-3 Drill Bit

Fits tools of most brands

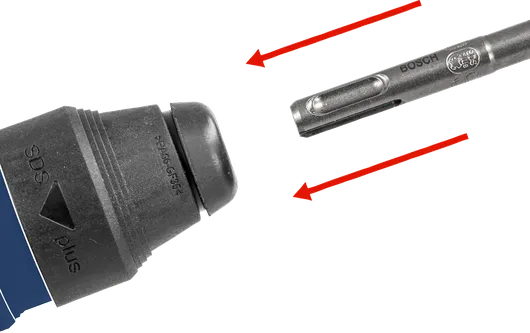

Drill bit being aligned with a tool chuck for attachment.

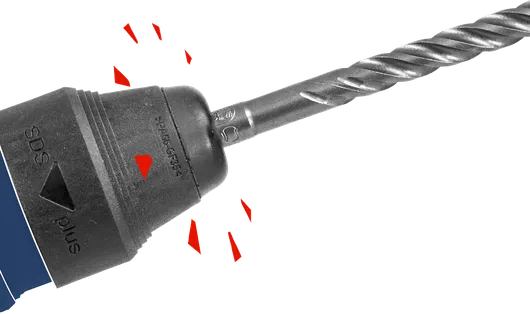

Rotary hammer drill bit inserted into a chuck.

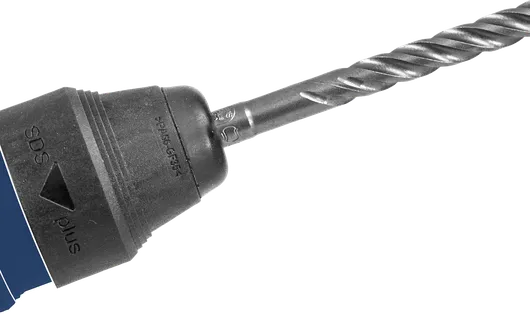

Close-up of a drill with a spiral bit attached for heavy-duty material drilling.

Fits all SDS plus rotary hammers

Product Options

Available product options: 80

Expand Part number Diameter mm Outer diameter mm Working length mm Total length mm Pack quantity Price Availability
2 608 830 941 5.00 10 50 110 1 Pcs Find a local dealer
2 608 830 942 5.00 10 100 160 1 Pcs Find a local dealer
2 608 830 943 5.50 10 50 110 1 Pcs Find a local dealer
2 608 830 944 5.50 10 100 160 1 Pcs Find a local dealer
2 608 830 945 6.00 10 50 110 1 Pcs Find a local dealer
2 608 830 946 6.00 10 100 160 1 Pcs Find a local dealer
2 608 830 948 6.50 10 100 160 1 Pcs Find a local dealer
2 608 830 950 6.50 10 200 260 1 Pcs Find a local dealer
2 608 830 951 7.00 10 100 160 1 Pcs Find a local dealer
2 608 830 953 8.00 10 50 110 1 Pcs Find a local dealer
2 608 830 954 8.00 10 100 160 1 Pcs Find a local dealer
2 608 830 955 8.00 10 150 210 1 Pcs Find a local dealer
2 608 830 956 8.00 10 200 260 1 Pcs Find a local dealer
2 608 830 957 10.00 10 50 110 1 Pcs Find a local dealer
2 608 830 958 10.00 10 100 160 1 Pcs Find a local dealer
2 608 830 959 10.00 10 150 210 1 Pcs Find a local dealer
2 608 830 960 12.00 12 100 160 1 Pcs Find a local dealer
2 608 830 961 12.00 12 150 210 1 Pcs Find a local dealer
2 608 830 962 12.00 12 200 260 1 Pcs Find a local dealer
2 608 830 963 14.00 14 100 160 1 Pcs Find a local dealer
2 608 830 964 16.00 16 150 210 1 Pcs Find a local dealer
2 608 831 160 4.00 10 100 160 1 Pcs Find a local dealer
2 608 831 161 5.00 10 50 110 1 Pcs Find a local dealer
2 608 831 162 5.00 10 100 160 1 Pcs Find a local dealer
2 608 831 164 5.50 10 50 110 1 Pcs Find a local dealer
2 608 831 166 6.00 10 50 110 1 Pcs Find a local dealer
2 608 831 167 6.00 10 100 160 1 Pcs Find a local dealer
2 608 831 168 6.00 10 150 210 1 Pcs Find a local dealer
2 608 831 169 6.00 10 200 260 1 Pcs Find a local dealer
2 608 831 170 6.50 10 50 110 1 Pcs Find a local dealer
2 608 831 171 6.50 10 100 160 1 Pcs Find a local dealer
2 608 831 172 6.50 10 150 210 1 Pcs Find a local dealer
2 608 831 173 6.50 10 200 260 1 Pcs Find a local dealer
2 608 831 174 7.00 10 50 110 1 Pcs Find a local dealer
2 608 831 175 7.00 10 100 160 1 Pcs Find a local dealer
2 608 831 176 7.00 10 150 210 1 Pcs Find a local dealer
2 608 831 177 8.00 10 50 110 1 Pcs Find a local dealer
2 608 831 178 8.00 10 100 160 1 Pcs Find a local dealer
2 608 831 179 8.00 10 150 210 1 Pcs Find a local dealer
2 608 831 180 8.00 10 200 260 1 Pcs Find a local dealer
2 608 831 181 8.00 10 400 460 1 Pcs Find a local dealer
2 608 831 182 9.00 10 100 160 1 Pcs Find a local dealer
2 608 831 183 10.00 10 50 110 1 Pcs Find a local dealer
2 608 831 184 10.00 10 100 160 1 Pcs Find a local dealer
2 608 831 185 10.00 10 150 210 1 Pcs Find a local dealer
2 608 831 186 10.00 10 200 260 1 Pcs Find a local dealer
2 608 831 187 10.00 10 250 310 1 Pcs Find a local dealer
2 608 831 188 10.00 10 300 360 1 Pcs Find a local dealer
2 608 831 189 10.00 10 400 460 1 Pcs Find a local dealer
2 608 831 190 11.00 10 100 160 1 Pcs Find a local dealer
2 608 831 191 12.00 12 100 160 1 Pcs Find a local dealer
2 608 831 192 12.00 12 150 210 1 Pcs Find a local dealer
2 608 831 193 12.00 12 200 260 1 Pcs Find a local dealer
2 608 831 194 12.00 12 300 360 1 Pcs Find a local dealer
2 608 831 195 12.00 12 400 460 1 Pcs Find a local dealer
2 608 831 196 13.00 13 100 160 1 Pcs Find a local dealer
2 608 831 197 14.00 14 100 160 1 Pcs Find a local dealer
2 608 831 198 14.00 14 150 210 1 Pcs Find a local dealer
2 608 831 199 14.00 14 200 260 1 Pcs Find a local dealer
2 608 831 400 14.00 14 300 360 1 Pcs Find a local dealer
2 608 831 401 14.00 14 400 460 1 Pcs Find a local dealer
2 608 831 403 16.00 16 150 210 1 Pcs Find a local dealer
2 608 831 404 16.00 16 250 310 1 Pcs Find a local dealer
2 608 831 405 16.00 16 300 360 1 Pcs Find a local dealer
2 608 831 406 16.00 16 400 460 1 Pcs Find a local dealer
2 608 831 407 18.00 18 150 200 1 Pcs Find a local dealer
2 608 831 408 18.00 18 250 300 1 Pcs Find a local dealer
2 608 831 410 18.00 18 400 450 1 Pcs Find a local dealer
2 608 831 411 20.00 20 150 200 1 Pcs Find a local dealer
2 608 831 412 20.00 20 250 300 1 Pcs Find a local dealer
2 608 831 413 20.00 20 300 350 1 Pcs Find a local dealer
2 608 831 414 20.00 20 400 450 1 Pcs Find a local dealer
2 608 831 415 22.00 22 200 250 1 Pcs Find a local dealer
2 608 831 416 22.00 22 300 350 1 Pcs Find a local dealer
2 608 831 417 22.00 22 400 450 1 Pcs Find a local dealer
2 608 831 418 24.00 24 200 250 1 Pcs Find a local dealer
2 608 831 419 24.00 24 400 450 1 Pcs Find a local dealer
2 608 831 420 25.00 25 200 250 1 Pcs Find a local dealer
2 608 831 421 25.00 25 300 350 1 Pcs Find a local dealer
2 608 831 422 25.00 25 400 450 1 Pcs Find a local dealer

out of products
