Angle measurers and inclinometers

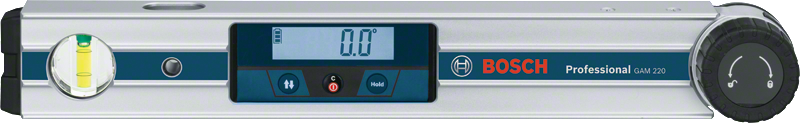

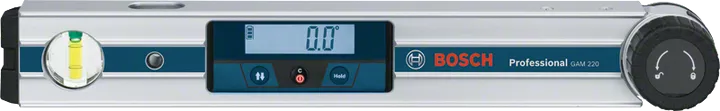

GAM 220 Professional

Angle Measurer

Precise and easy angle measurement

  • Fast and precise calculation of angles
  • Angles can be transferred precisely onto workpieces by means of a mechanical locking screw

Functions & key features

Display Illumination
IP54 dust and splash water protection
Flip Display
Storage of measuring result
Lock

Your Selection

  • with 4 x battery (AA)
Show variant
169.00 JOD
Recommended retail price excluding VAT
Find a local dealer

with 4 x battery (AA) 0 601 076 500
169.00 JOD
Recommended retail price excluding VAT

GAM 220 Professional

Your Selection

GAM 220
with 4 x battery (AA)

Order number: 0 601 076 500

169.00 JOD
Recommended retail price excluding VAT
Find a local dealer

Included in this variant

  • 4 x 1.5 V LR6 battery (AA)

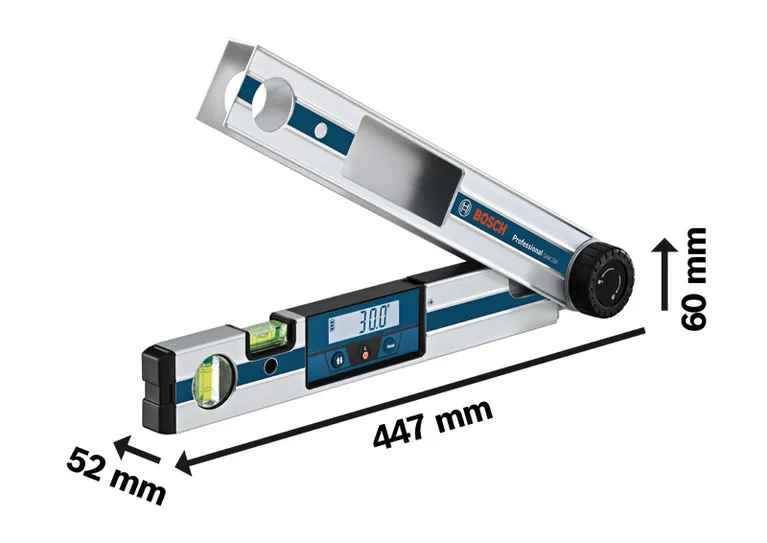

Technical data

Additional data

Measurement rangenull 0 – 220°
Arm lengthnull 40 cm
Measurement accuracy, anglesnull ± 0.1°
Measurement accuracy, vialsnull ± 0.05°
Accuracy of angle calculationnull ± 0.1°
Power supplynull 4 x 1.5 V LR6 (AA)
Battery power, approx.null 80 h
Automatic deactivation, approx.null 30 min
Weight, approx.null 1.3 kg
GAM 220
