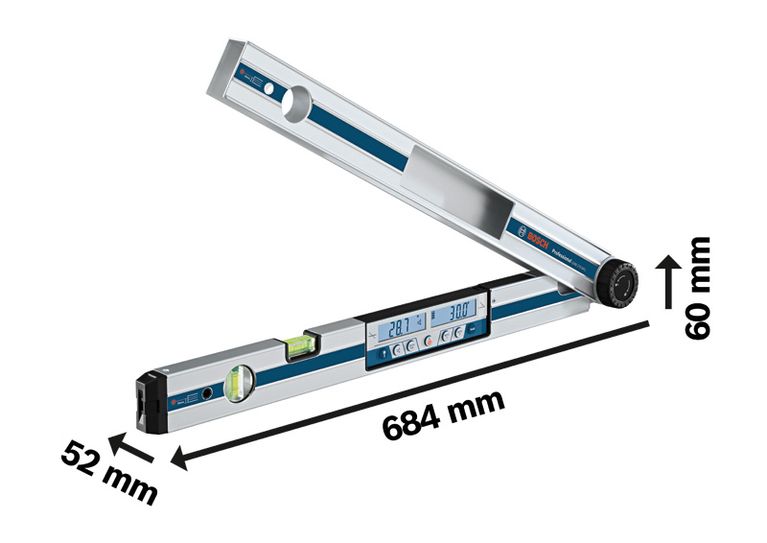

Angle Measurer GAM 270 MFL Professional

Angle meter and inclinometer with laser-accurate transfer

Technical data
Additional data
Measurement range* 0-270°
Arm length* 60 cm
Measurement accuracy, angles* ± 0.1°
Power supply 4 x 1.5V AA
Battery power, approx. 50 h
Automatic deactivation, approx. 30 min
Weight, approx. 1.7 kg

* Highlighted Data

Advantages

Angle meter and inclinometer with laser-accurate transfer

  • Digital angle measurer and inclinometer in one
  • Calculates mitre angles without the need for accessories

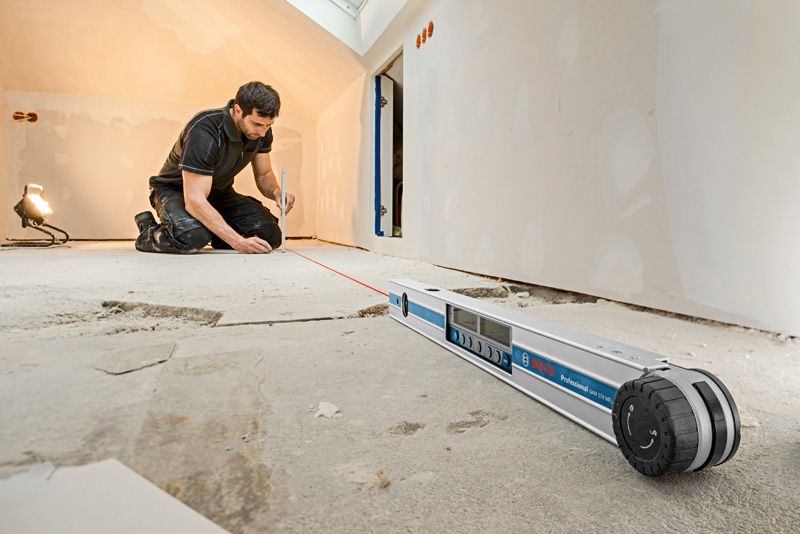

  • Inclinometer with laser up to a range of 30 m

Functions

Laser warning notice 1:2015-05; 635 nm Laser warning notice
MTR1/MTR2 Automatic calculation of mitre angles at the press of a button
Measuring accuracy of angles ± 0.1° Measuring accuracy ± 0.1°
Measuring accuracy of laser ± 0.5 mm/m Measuring accuracy ± 0.5 mm/m
Measuring range of angles 0°–270° Angle measuring range 0°-270°
Measuring range of laser max. 30 m Measuring range maximum 30 m
Lock Function GAM Lock function for locking the angle measurer at a certain angle
Distance of laser to plane the tool is resting on Laser 30 mm above plane the tool is resting on
Hold Hold function for intermediate storage of measured values
Display lighting Illuminated display
IP protection 54 Dust and splash protection IP54
Flip Display Rotating readout on display
What’s Included in this Package
with 4 x battery (AA), accessory set
with 4 x battery (AA), accessory set
Order number: 0 601 076 400
  • Leg extension
  • Protective Bag
  • 4 x 1.5 V LR6 battery (AA)

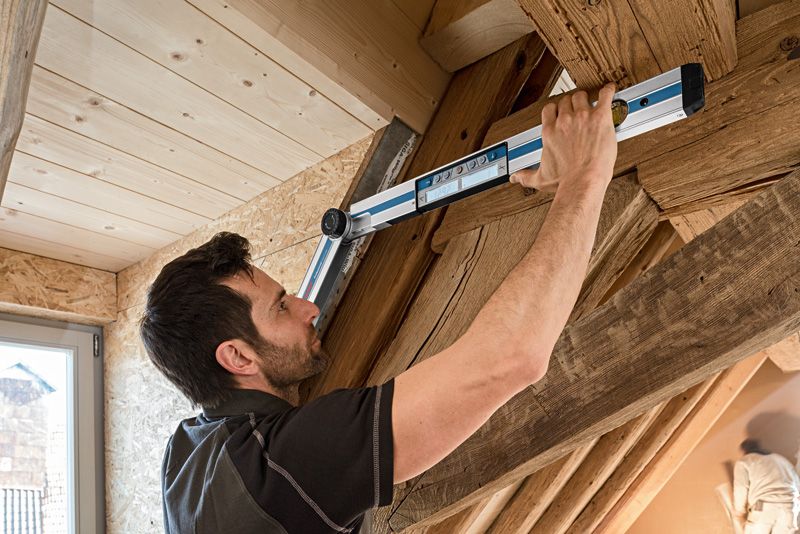

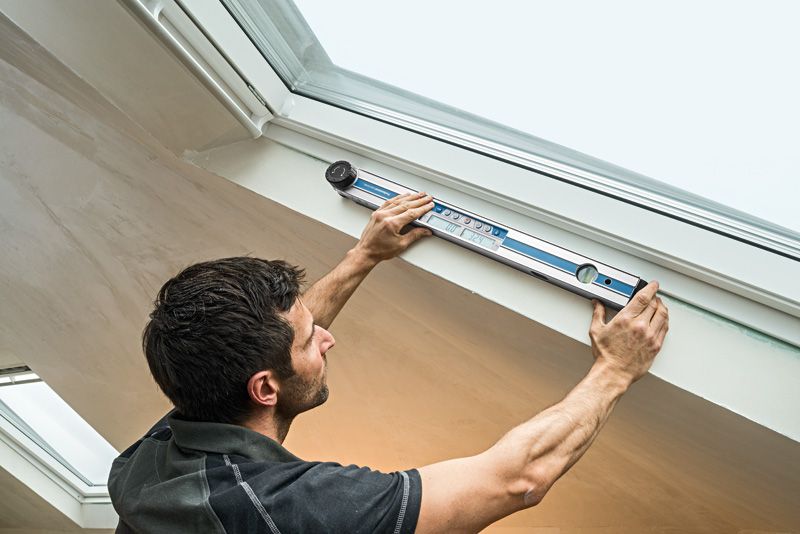

The GAM 270 MFL in action!
