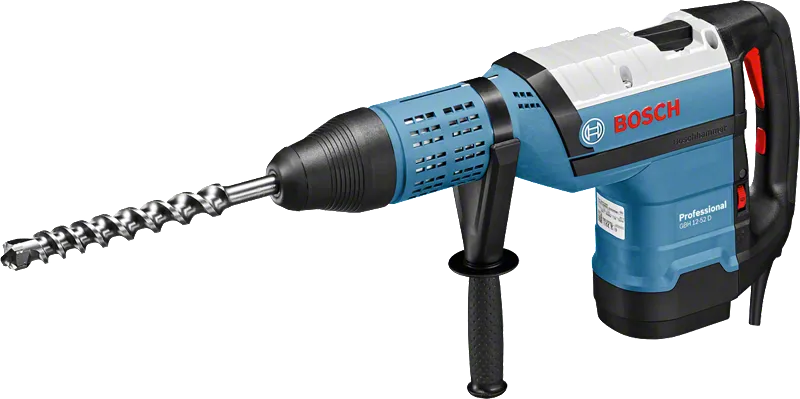

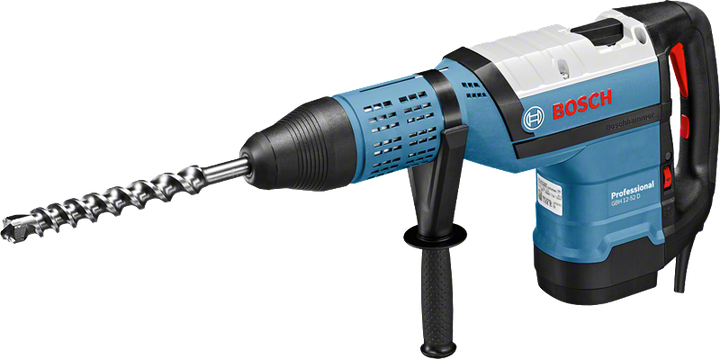

Rotary Hammer with SDS max
GBH 12-52 D Professional
The most powerful rotary hammer from Bosch!
Technical data
| Additional data | |
|---|---|
| Rated input power* | 1,700 W |
| Impact energy* | 19 J |
| Impact rate at rated speed | 1,750 – 2,150 bpm |
| Rated speed | 0 – 220 rpm |
| Weight | 11.5 kg |
| Tool dimensions (width) | 120 mm |
| Tool dimensions (length) | 600 mm |
| Tool dimensions (height) | 312 mm |
| Tool holder | SDS max |
| Drilling range | |
|---|---|
| Drilling dia. concrete, hammer drill bits* | 12 – 52 mm |
| Opt. appl. range concrete, hammer drill bits | 30 – 50 mm |
| Drilling dia. concrete, breakthrough drill bits | 80 mm |
| Drilling diameter in concrete with core cutters | 150 mm |
| Total vibration values (Hammer drilling in concrete) | |
|---|---|
| Vibration emission value ah | 20 m/s² |
| Uncertainty K | 1.5 m/s² |
| Total vibration values (Chiselling) | |
|---|---|
| Vibration emission value ah | 15 m/s² |
| Uncertainty K | 2.8 m/s² |
* Highlighted Data
The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.
Advantages
The most powerful rotary hammer from Bosch!
- Top performance when drilling and chiselling thanks to the 1.700 W motor and 19 joules of single impact energy
- Exceptional durability thanks to robust metal components
- Automatic lock-on switch for highest user comfort during continuous chiselling applications
Functions

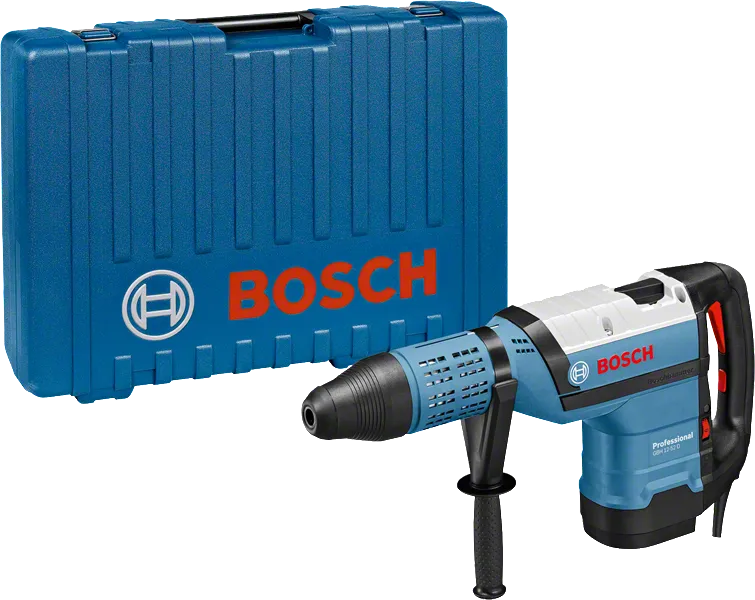

What’s Included in this Package
in carrying case with accessory set
Order number:
0 611 266 100
- Auxiliary handle (spare part number 1 612 025 004)
- Grease tube (spare part number 1 615 430 010)
- Machine cloth
- Carrying case (spare part number 1 615 438 705)
