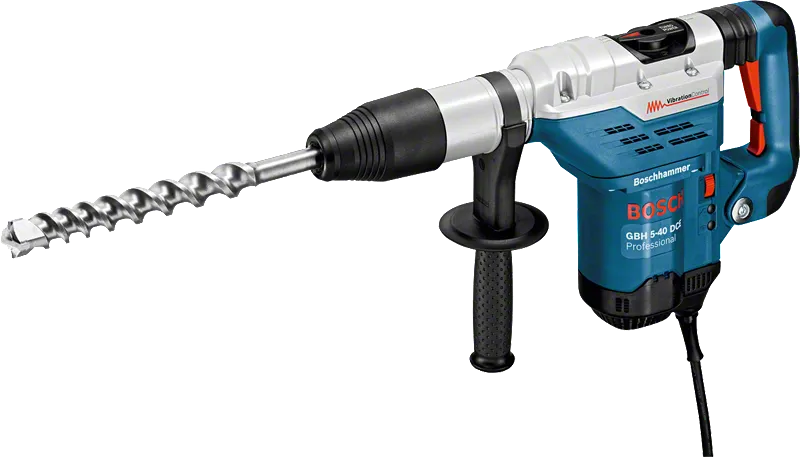

Rotary Hammer with SDS max GBH 5-40 DCE Professional

The fast all-rounder with Vibration Control

Technical data
Additional data
Rated input power* 1,150 W
Impact energy* 8.8 J
Impact rate at rated speed 1,500 – 3,050 bpm
Rated speed 170 – 340 rpm
Weight 6.8 kg

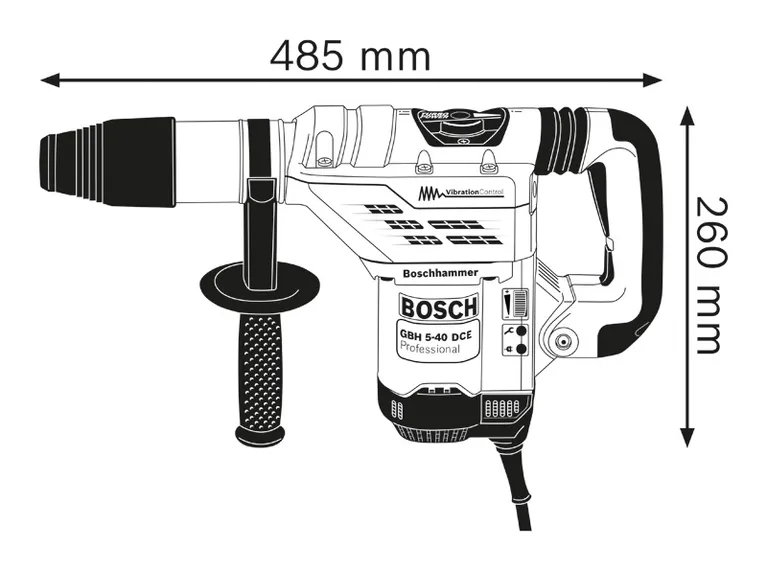

Tool dimensions (length) 485 mm
Tool dimensions (height) 260 mm
Tool holder SDS max
Drilling range
Drilling dia. concrete, hammer drill bits* 12 – 40 mm
Opt. appl. range concrete, hammer drill bits 18 – 32 mm
Drilling dia. concrete, breakthrough drill bits 45 – 55 mm
Drilling diameter in concrete with core cutters 40 – 90 mm
Total vibration values (Hammer drilling in concrete)
Vibration emission value ah 10.5 m/s²
Uncertainty K 1.5 m/s²
Total vibration values (Chiselling)
Vibration emission value ah 7.5 m/s²
Uncertainty K 1.5 m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 93 dB(A); Sound power level 104 dB(A). Uncertainty K= 3 dB.

Advantages

The fast all-rounder with Vibration Control

  • Fastest drilling rate in its class due to 1150 W motor and powerful hammer mechanism
  • SDS max comfort for easy and fast tool changes with one hand
  • Vibration Control (10 m/s² for drilling, 8 m/s² for chiselling) ensures convenient working, even in time-intensive applications

Functions

Comfortable working thanks to low vibration by adding rubber mounting/foam padding to the handles
Protection of the user and the machine in case of overload or binding No abrupt blockage of the tool by unlatching clutch dogs and minimizing torque
Best work results with constant speed thanks to electronic regulation of speed - even under load
Better chiselling performance by utilizing the power used for drilling to increase impact energy when in hammer only mode
Optimal power transmission for large hammers
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Construction The professional power tools for construction from Bosch.
What’s Included in this Package

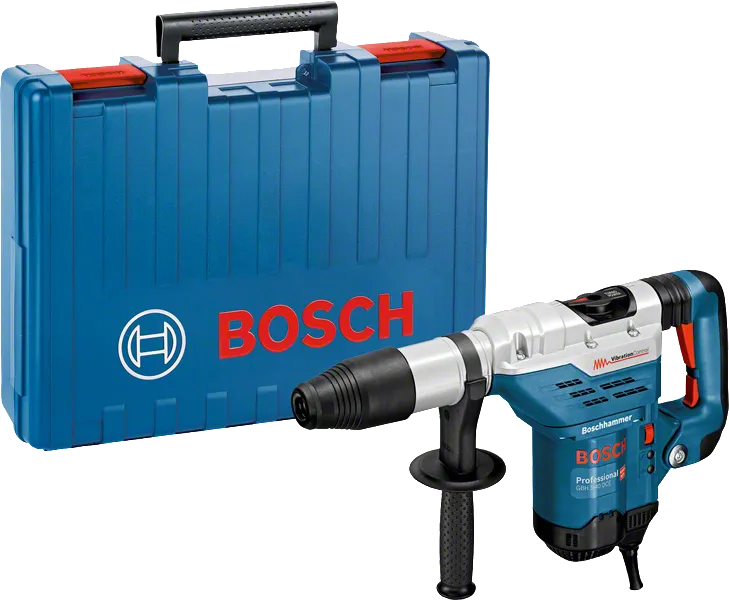

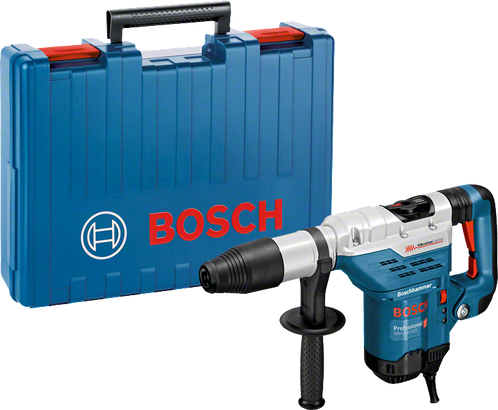

in carrying case with accessory set
in carrying case with accessory set
Order number: 0 611 264 000
  • Auxiliary handle 2 602 025 117
  • Grease tube (spare part number 1 615 430 010)
  • Machine cloth
  • Carrying case (spare part number 1 615 438 460)
The GBH 5-40 DCE in action!
