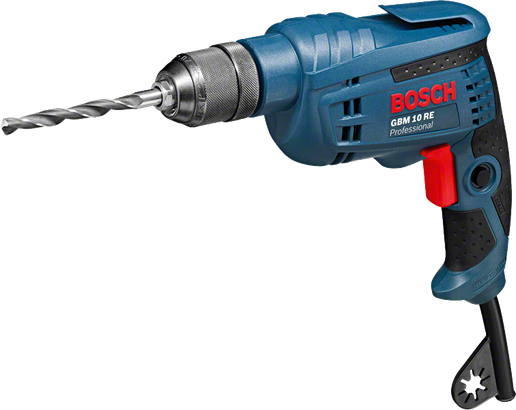

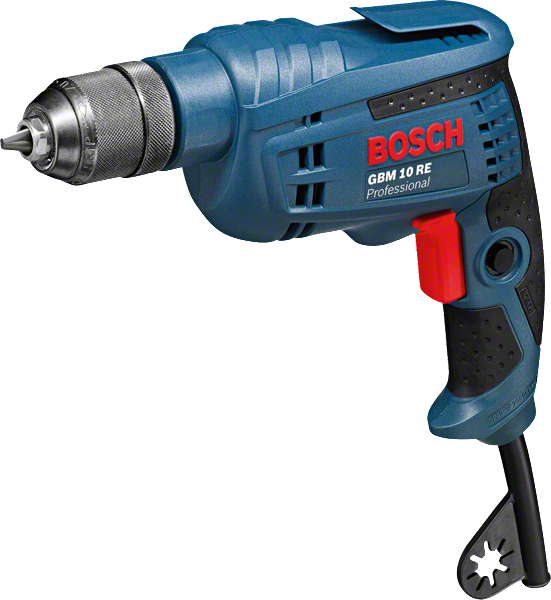

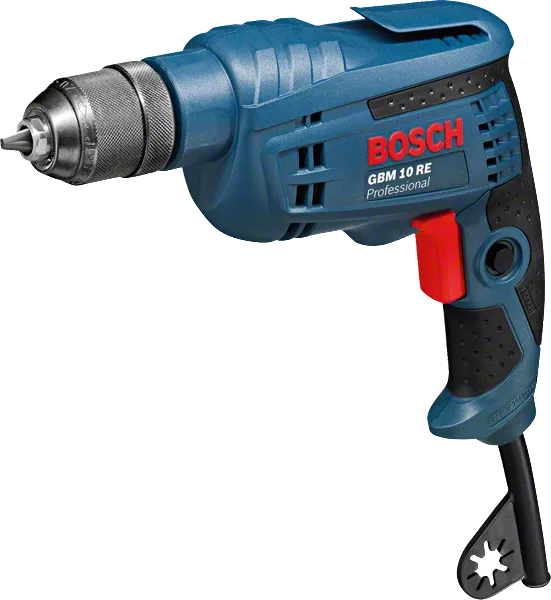

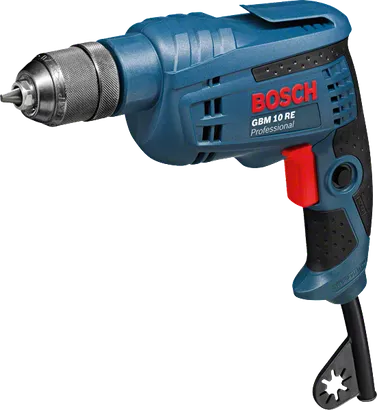

Drill GBM 10 RE Professional

The powerful and compact tool

Technical data
Additional data
Rated input power* 600 W
Weight 1.7 kg
No-load speed 0 – 2,600 rpm
Power output 360 W
Rated speed 1,676 rpm
Rated torque 20.0 Nm
Drill spindle connecting thread 3/8"
Chuck capacity, min./max. 1 – 10 mm
Drilling range
Drilling diameter in aluminium 10 mm
Drilling diameter in wood* 25 mm
Drilling diameter in steel* 10 mm
Total vibration values (Drilling in metal)
Vibration emission value ah 4.8 m/s²
Uncertainty K 1.5 m/s²
Total vibration values (Screwdriving)
Vibration emission value ah 2.8 m/s²
Uncertainty K 1.5 m/s²

* Highlighted Data

The A-rated noise level of the power tool is typically as follows: Sound pressure level 83 dB(A); Sound power level 94 dB(A). Uncertainty K= 3 dB.

Advantages

The powerful and compact tool

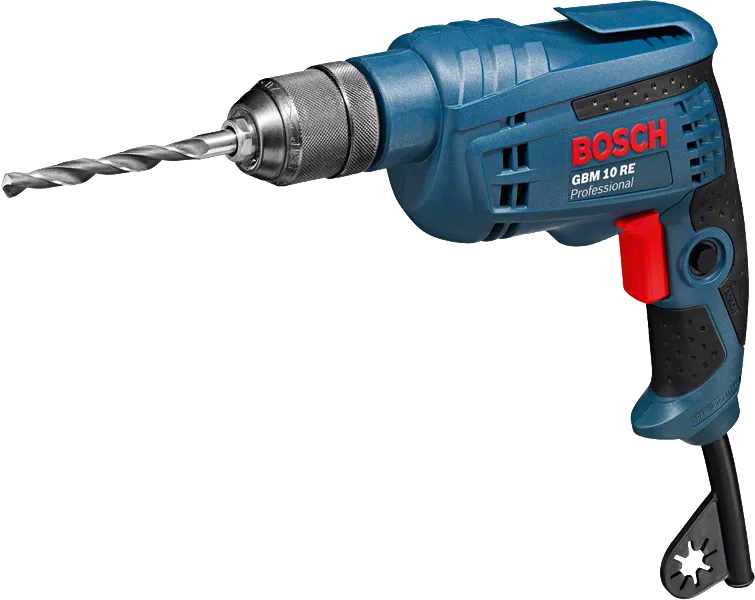

  • Powerful 600 W motor, ideal for drilling holes up to 10 mm in diameter in metal
  • Drill spindle fixed in bearing for high precision
  • Compact design and low weight for optimum handling in medium-duty drilling applications

Functions

Forward / reverse rotation for inserting and removing screws
Best work results with speed pre-selection Best work results with speed pre-selection for applications requiring material-specific speed
Comfortable handling of the tool thanks to softgrip
What’s Included in this Package
with Keyless chuck 1 – 10 mm (spare part number 2 609 110 750)
with Keyless chuck 1 – 10 mm (spare part number 2 609 110 750)
Order number: 0 601 473 600
  • Keyless chuck 1 – 10 mm (spare part number 2 609 110 750)
The GBM 10 RE in action!
