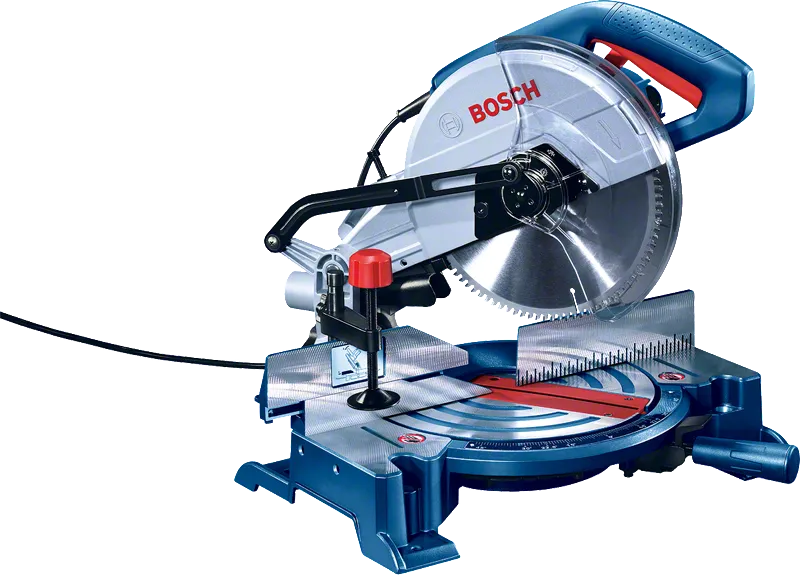

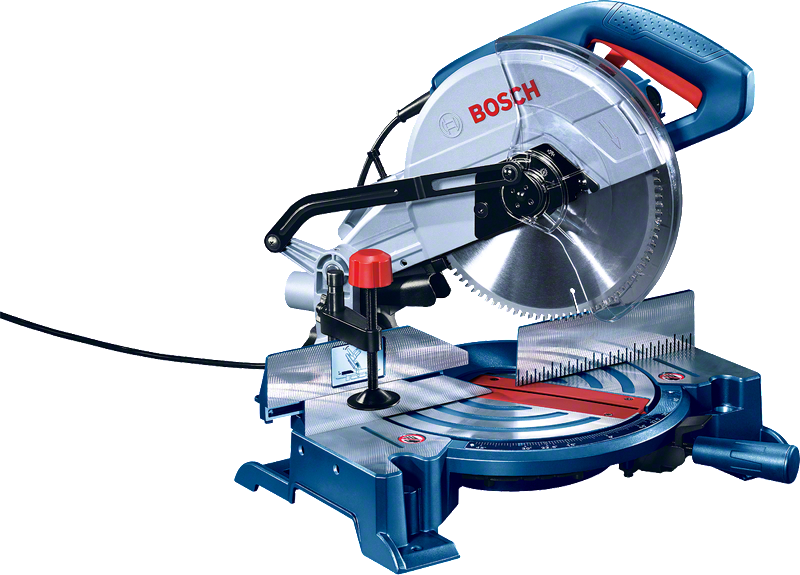

GCM 10 MX Professional
Mitre Saw

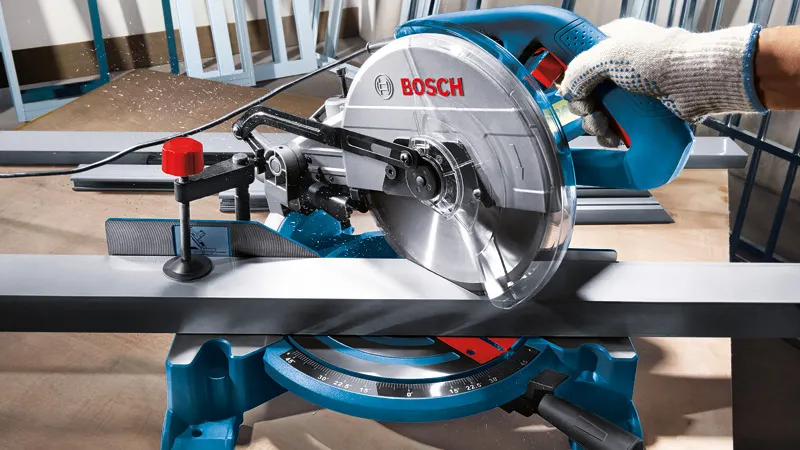

Engineered for precise Aluminium Cutting
- High cutting efficiency and cutting precision
- High performance of frequent aluminium cutting
with clamp
0 601 B29 021
GCM 10 MX Professional
Your Selection
with clamp
Order number: 0 601 B29 021
Find a local dealerIncluded in this variant
-
Clamp
-
Dust bag
-
Multi-material cutting Saw blade 254 x 30 mm, 96T
-
Plate support
Technical data
Additional data |
|
|---|---|
| Saw blade diameter | 254 mm |
| Mitre setting | 47 ° L / 52 ° R |
| Bevel setting | 45 ° L |
| Saw blade bore diameter | 30 mm |
| Rated input power | 1,700 W |
| Cutting capacity, 0° | 89 x 89 mm |
| Cutting capacity, 45° mitre | 62 x 130 mm |
| Cutting capacity, 45° bevel | 86 x 67 mm |
| Tool dimensions (width x length x height) | 535 x475 x330 mm |
| No-load speed | 4,800 rpm |
| Weight | 16.08 kg |
The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.
