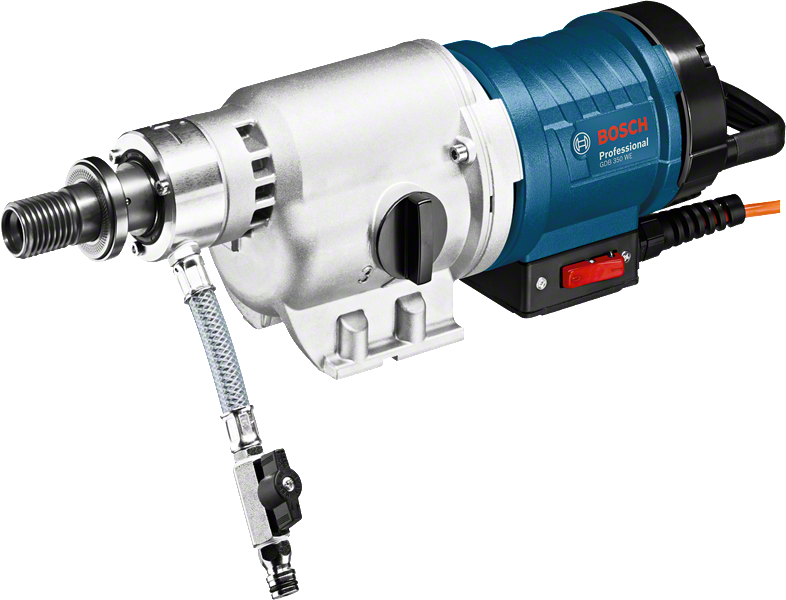

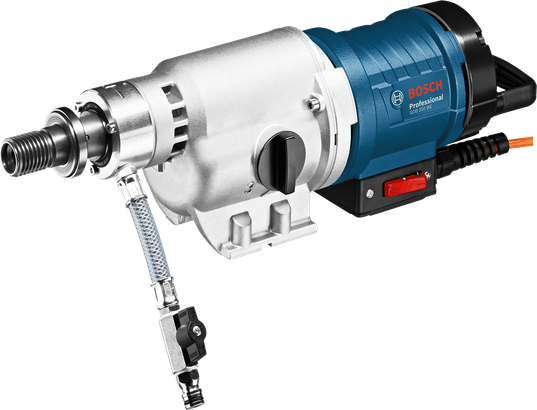

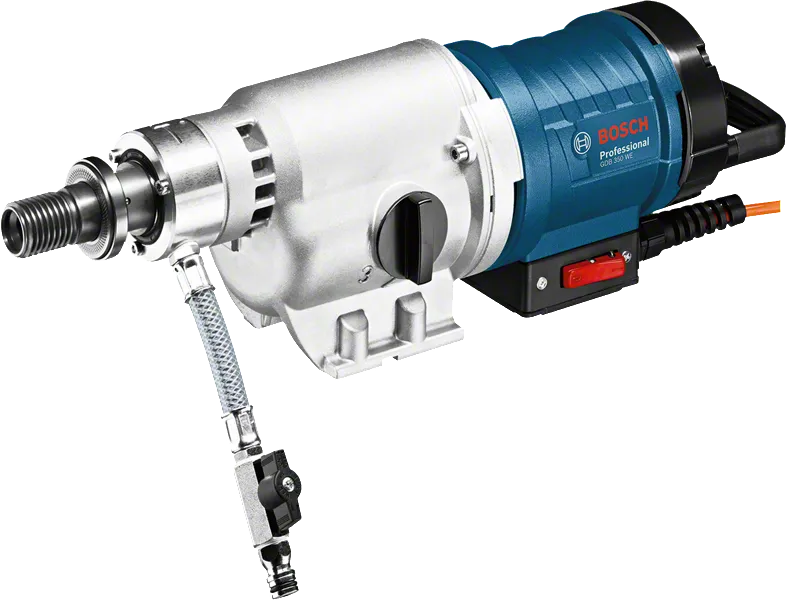

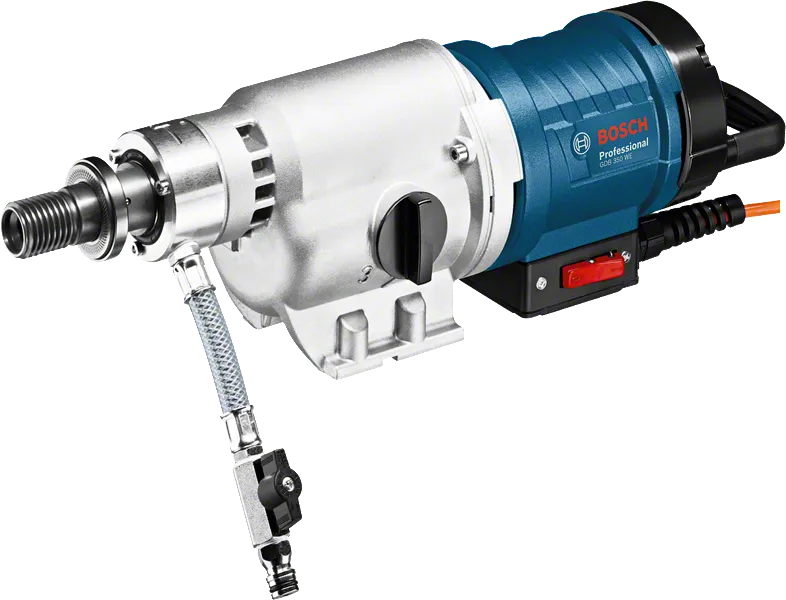

GDB 350 WE Professional
Diamond Drill
Power through concrete – drill holes of up to 350 mm in diameter
- 3200 watt motor and 3-speed gearbox for core drilling up to 350 mm in reinforced concrete
- Long lifetime due to robust design and gearbox with oil-bath lubrication

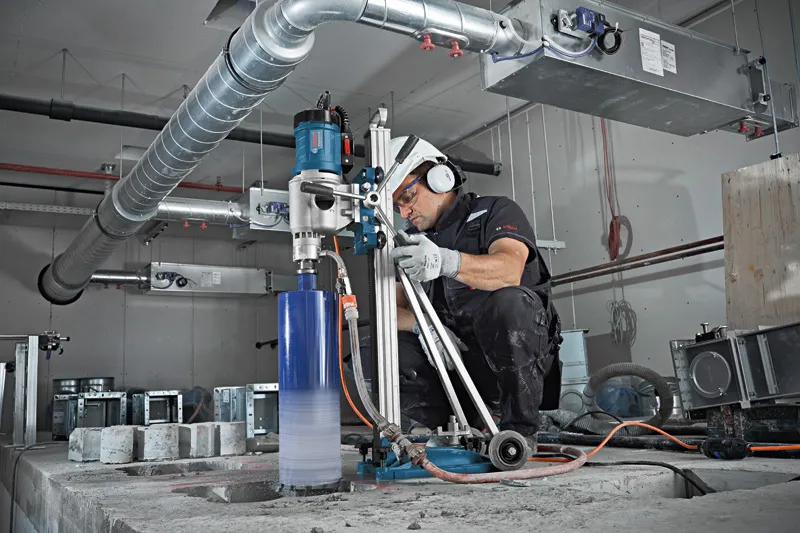

- Stand-mounted drilling in a system with GCR 350 drill stand (part number 0 601 190 200)
Functions & key features
GDB 350 WE Professional
0 601 189 900
GDB 350 WE Professional
Your Selection
Technical data
Additional data |
|
|---|---|
| Rated input power | 3200 W |
| Tool holder | 1 1/4" UNC |
| Voltage, electrical | 230 V |
| Weight | 11.9 kg |
| Drilling range | 350 mm |
| Suitability | Wet drilling in concrete |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 96 dB(A); Sound power level 110 dB(A). Uncertainty K= 3 dB.
