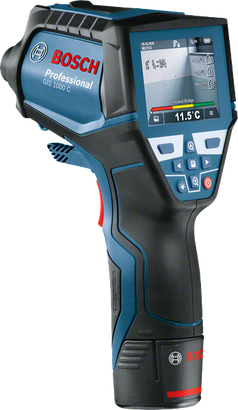

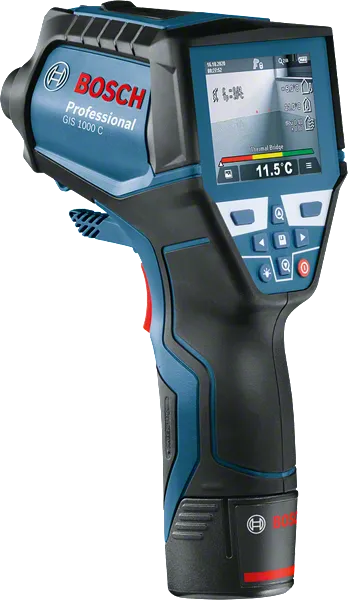

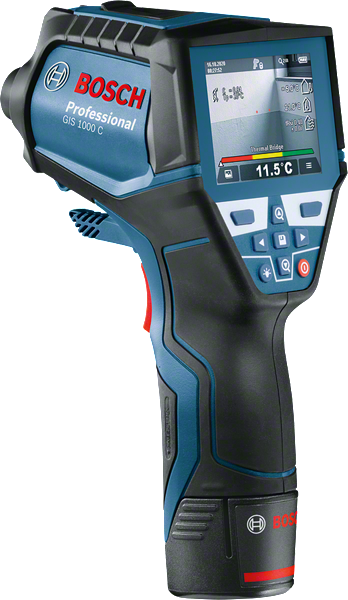

GIS 1000 C Professional

Thermo Detector

GIS 1000 C

The all-round thermo detector for precise and versatile measurements

  • Integrated camera instantly shows and documents measured values in photos

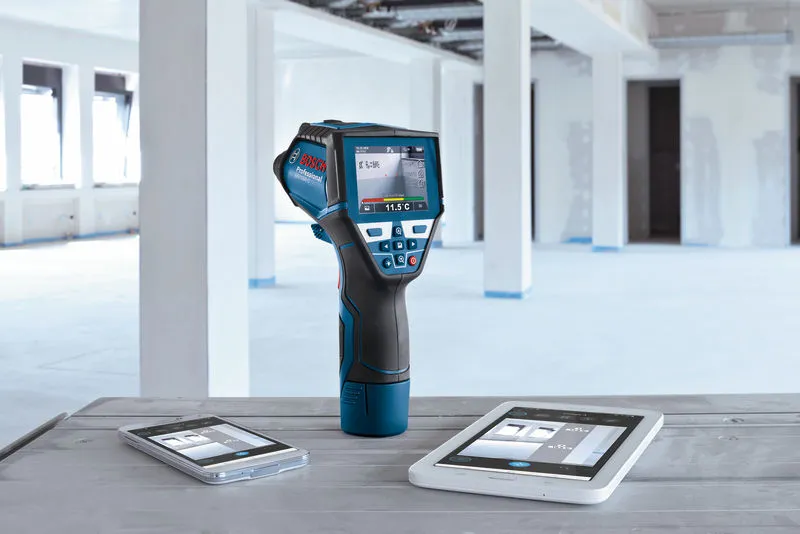

  • Practical data transfer and storage via Bosch Thermal App or USB
  • Precise results due to five different modes covering all applications
See technical details

Functions & key features

 Get connected – personalise your tool and exchange information with your App. Enables fast connection of tool and Bosch Power Tools App for easy access, customisation, maintenance and asset management.

Your Selection

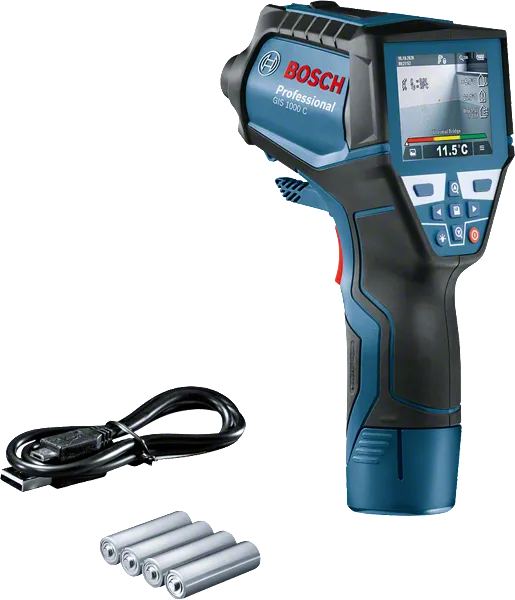

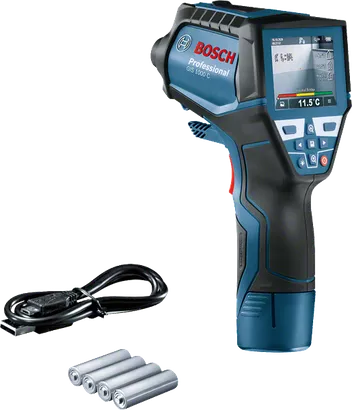

  • with 4 x battery (AA), adapter
Change variant
306.00 JOD Recommended retail price excluding VAT
Find a local dealer

with 4 x battery (AA), adapter 0 601 083 300
306.00 JOD Recommended retail price excluding VAT

Select a variant

Your Selection

with 4 x battery (AA), adapter

Order number: 0 601 083 300

306.00 JOD

Recommended retail price excluding VAT

Find a local dealer

Your Selection

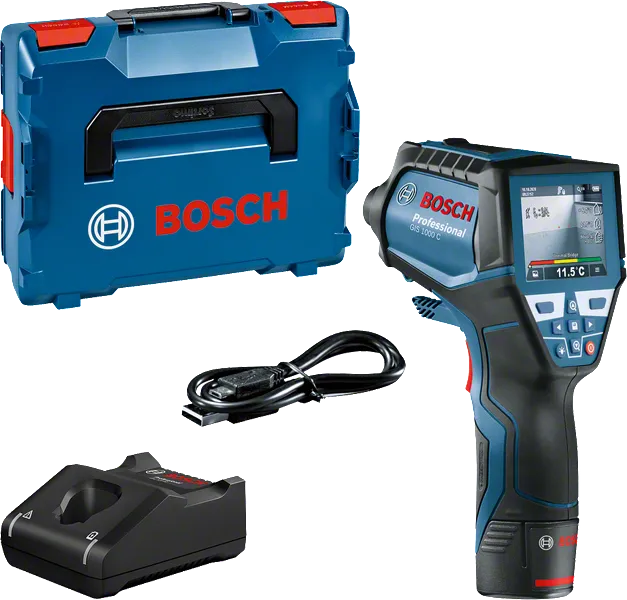

in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, Quick-start card

Order number: 0 601 083 301

413.00 JOD

Recommended retail price excluding VAT

Find a local dealer

Technical data

Additional data

Measurement range -40 °C … +1000 °C
Measuring accuracy of IR ± 1.0 °C* (*plus use-dependent deviation)
Battery voltage 12
Optics (Ratio of meas. distance : meas. spot) 50:1
Resolution 0.1 °C
Measuring accuracy of relative humidity ± 2 %** (**plus use-dependent deviation)
Laser diode Laser class 2, 635 nm
Frame buffer (number of images) >200
Memory type Internal memory
File format of image .jpg
Data transfer MicroUSB, Bluetooth™ Smart
Shock protection 1 m
Weight 0.56 kg
Display type TFT LCD
Size of display 2,8"
Operating temperature -10 – 50 °C
Storage temperature -20 – 70 °C
Working range 0.1 – 5 m
Measuring application Spot temperature measurement, Thermal bridge, Dew point

GIS 1000 C Professional: Further information

Product Highlights

The thermo detector GIS 1000 C Professional is the swift solution for precise reading and documentation of temperatures and relative humidity. While recording measurements, the device’s integrated camera conveniently captures images for instant display with the relevant values. Detailed data is quickly documented and can be shared to remote devices thanks to the Bosch Thermal App via Bluetooth® connection. The thermo detector delivers a temperature recording, offering professionals five different modes for complex surface and contact temperatures (with integrated K-type functionality), dew point and thermal bridge calculations, and a user mode for custom values.

Equipment & Application

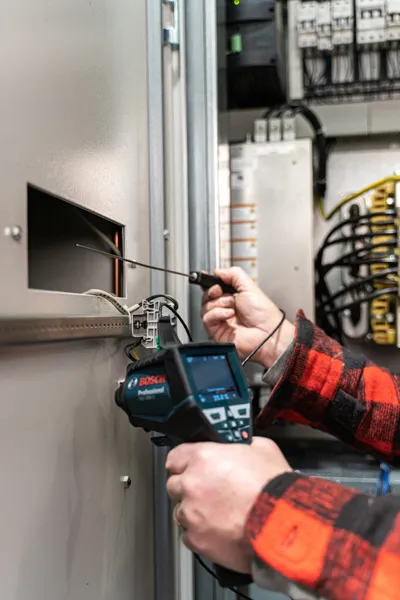

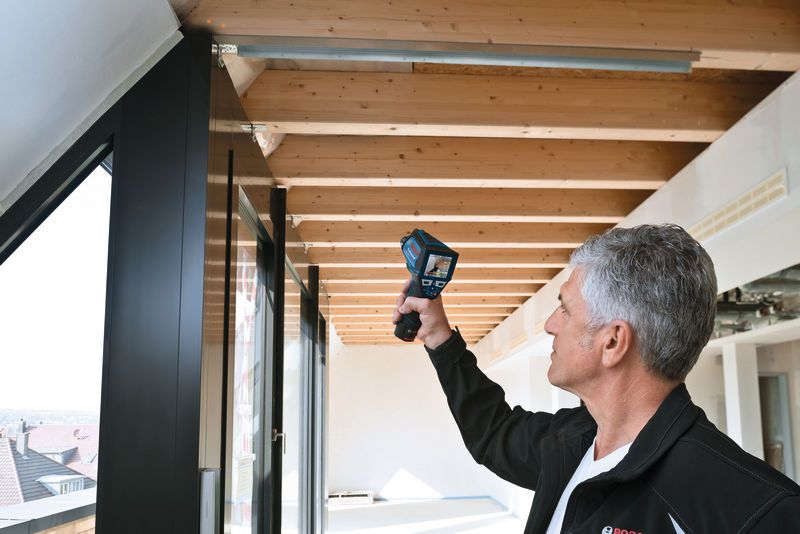

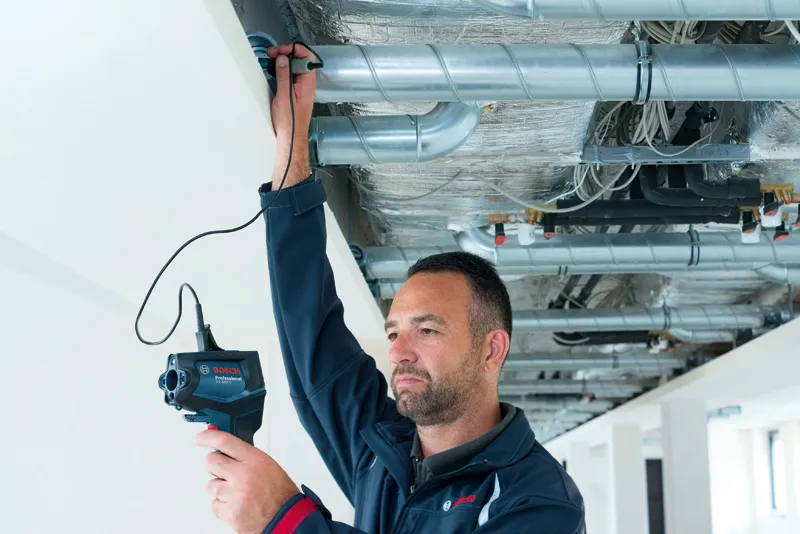

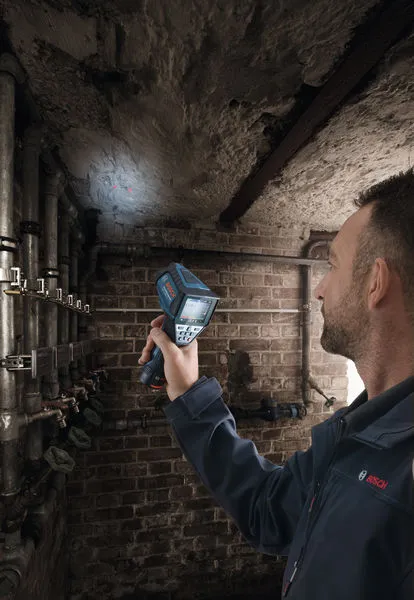

Professionals can use the thermo detector in a range of applications, from determining mould risk to checking thermal bridges, as well as for accurate contact measurement of reflective surfaces, liquids, and direct air temperature.

Additional Information

Along with measuring surface and contact temperatures, the GIS 1000 C Professional´s ambient sensor also quickly monitors surrounding conditions for precise measurement of room temperature and relative humidity, enabling an even wider range of applications. A straightforward user interface allows intuitive operation and delivers high-accuracy results on a wide measurement range. The GIS 1000 C Professional is not suitable for medical purposes.
