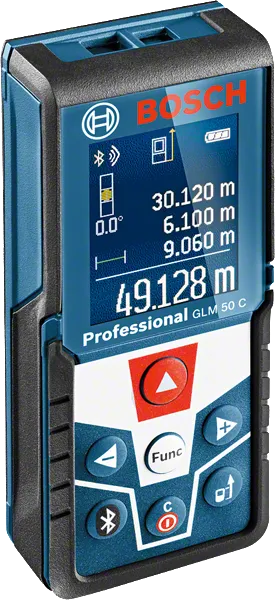

Laser Measure GLM 50 C Professional

The smart solution for measuring and documenting

Technical data
Additional data
Laser diode* 635 nm, < 1 mW
Measurement range* 0.05 – 50.00
Weight, approx.* 0.1 kg
Measurement time, typical < 0.5 s
Units of measurement m/cm, ft/inch
Measuring range, from 0.05 m
Measuring range, up to 50 m
Laser class 2
Measurement accuracy, typical +/- 1.5 mm
Measurement range of incline measurement 0 – 360° (4 x 90°)
Measuring accuracy (typical) +/- 0.2°
Measurement time, max. 4 s
Power supply 2 x 1.5 V LR03 (AAA)
Automatic deactivation 5 min
Memory capacity (values) 30
Battery lifetime, individual measurements, approx. 10,000
Battery lifetime, operating time, approx. 2.5 h
Dust and splash protection IP 54
Tripod thread 1/4"
Data transfer Android devices with Bluetooth™ 2.1 or higher, iOS devices with Bluetooth™ Smart technology
Supported Android devices Smartphone with Android 4.3 or higher, Tablet with Android 4.3 or higher
Supported iOS devices iPad (3rd Gen. or higher), iPad Air (1st Gen. or higher), iPad mini (1st Gen. or higher), iPhone 4S or higher

* Highlighted Data

Advantages

The smart solution for measuring and documenting

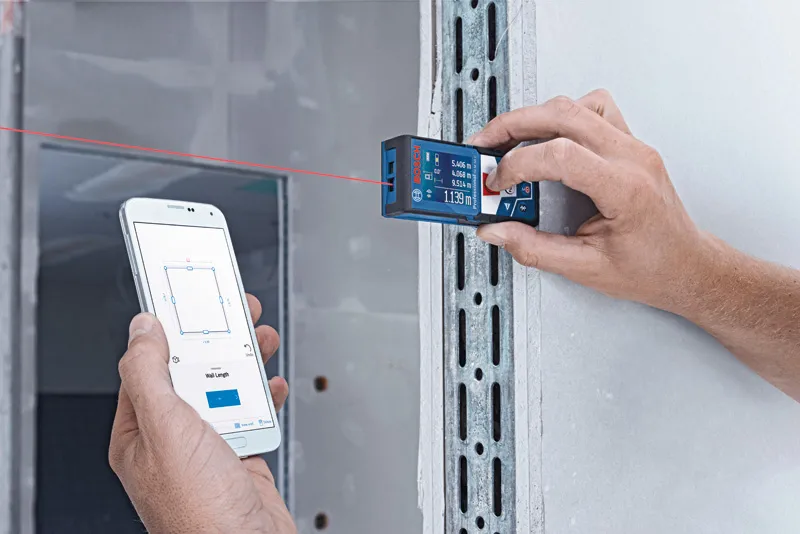

  • Quick and efficient data transfer via Bluetooth

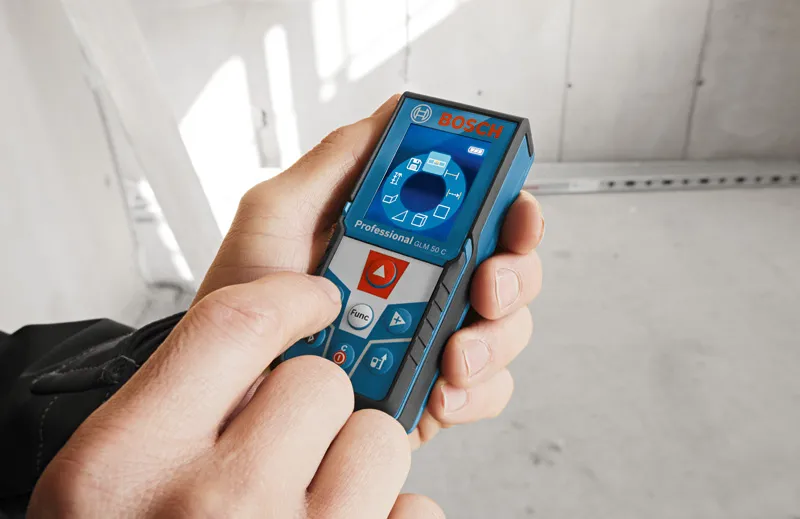

  • Easy handling with improved user interface and illuminated, rotating colour display

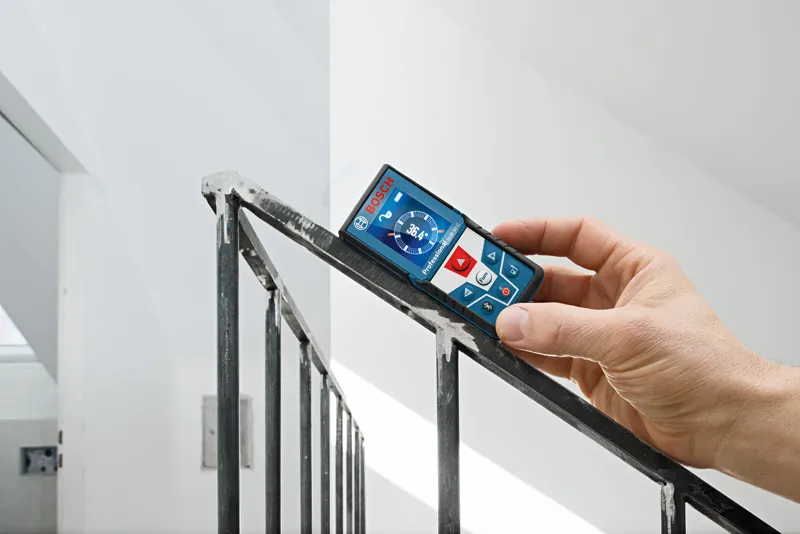

  • Broad functionality including stake-out function and 360° tilt sensor for easy angle measurements and levelling applications

Functions

Measuring Master Available for Android and iOS
Icon
360° incline sensor Integrated 360° incline sensor
Laser class 2 Laser class for measuring tools.
Stake-Out Function Stake-out function
Distance measuring range 50 m Measuring range of 0.05 to 50 m
Colour display Colour display
Icon
IP protection 54 Dust and splash protection IP54
Icon
Flip Display Rotating readout on display
Certification Certification with ISO standard 16331-1

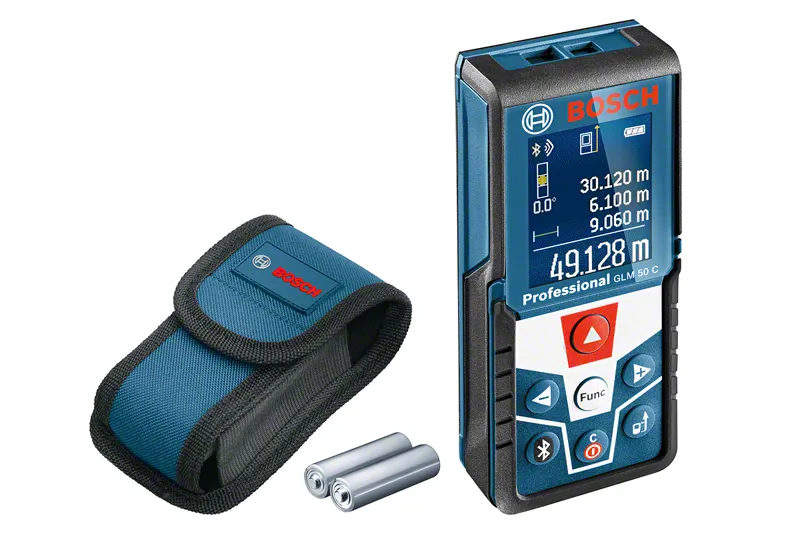

What’s Included in this Package
with accessory set
with accessory set
Order number: 0 601 072 C00
  • Manufacturer’s certificate
  • Protective Bag
The GLM 50 C in action!
