Detector

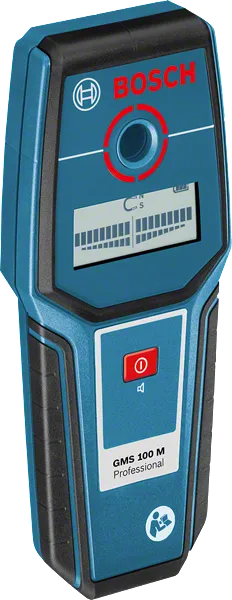

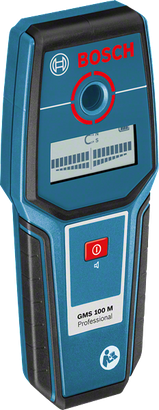

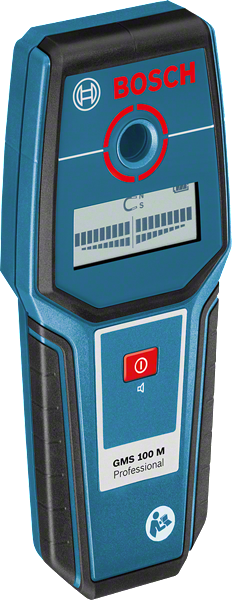

GMS 100 M Professional

The preferred detector in its class.
GMS 100 M Professional
Technical data
Additional data
Detection depth, steel, max.* 100 mm
Detection depth, copper, max.* 80 mm
Max. detection depth* 100 mm
Detectable materials Ferrous metals, non-ferrous metals, live cables
Detection depth of live cables, max. 50 mm
Automatic deactivation, approx. 5 minutes
Power supply 1 x 9 V 6LR61
Weight, approx. 0.26 kg
Display of max. drilling depth -
Dust and splash protection IP 54

* Highlighted Data

Advantages

The preferred detector in its class.

  • Calibration-free for maximum reliability
  • Automatic zoom scale for more precise detection
  • Detectable materials: Ferrous metals, non-ferrous metals, live cables

Functions

Detection depth of power cable Detection depth of live cables, max. 50 mm
Detection depth of metal Detection depth of steel, max. 100 mm
Detection depth of magnetic metal Detection depth of copper, max. 80 mm
IP protection 54 Dust and splash protection IP54
Battery 9.6 V Power supply by 1x 9 V 6LR61 battery
What’s Included in this Package
with 1 x battery (6LR61), Hand strap
with 1 x battery (6LR61), Hand strap
Order number: 0 601 081 100
  • Hand strap
  • 1 x 9 V block battery (6LR61)
