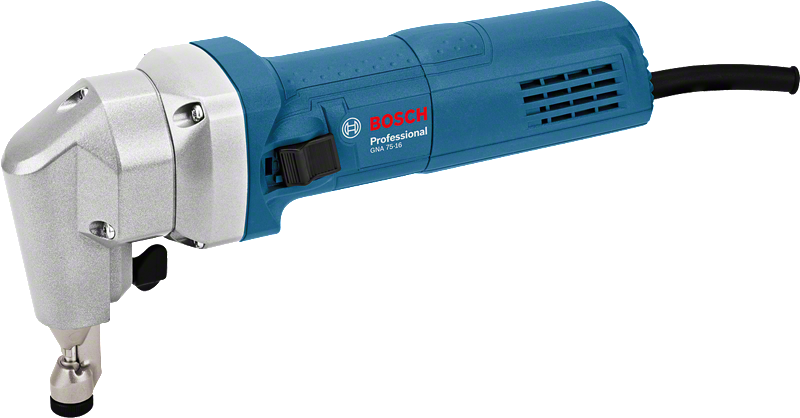

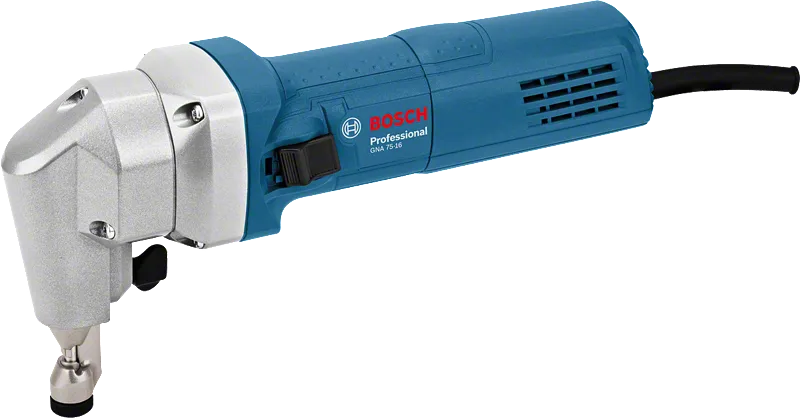

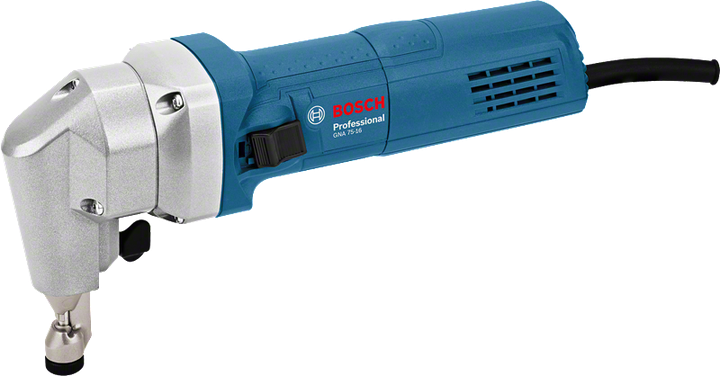

GNA 75-16 Professional
Nibbler

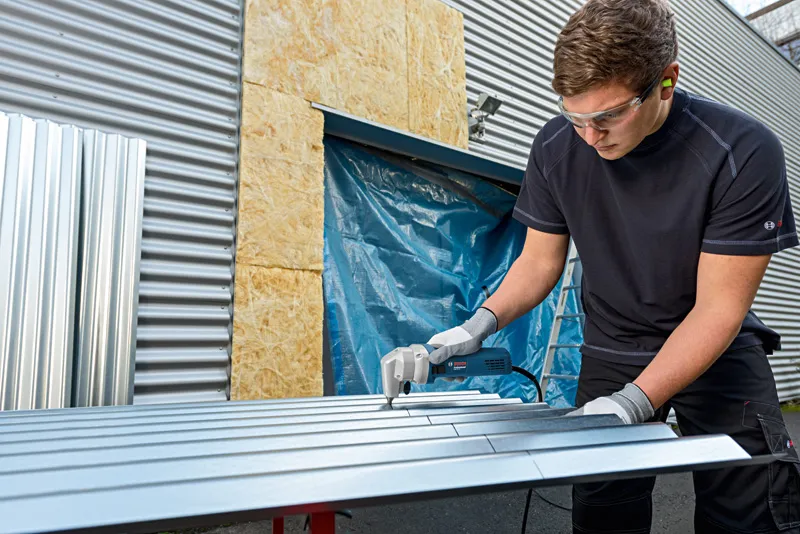

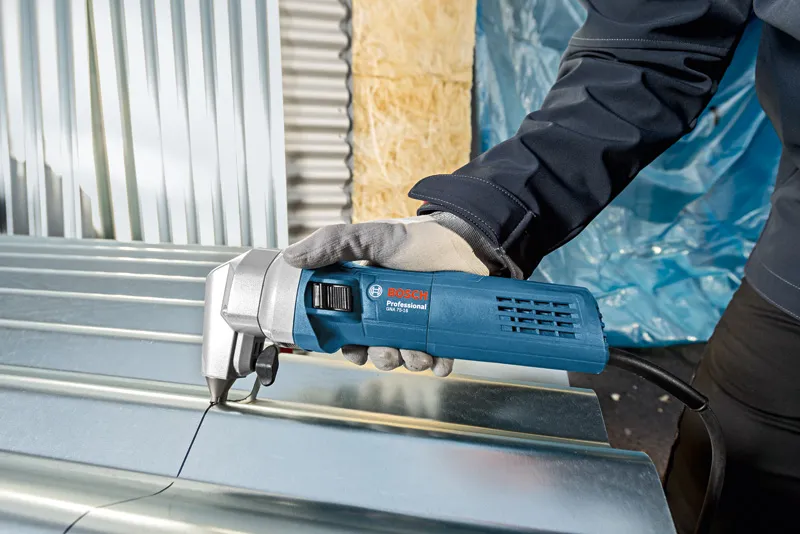

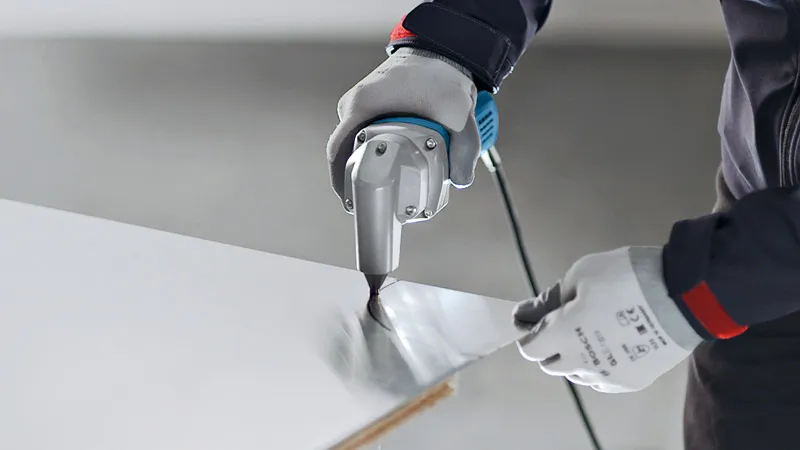

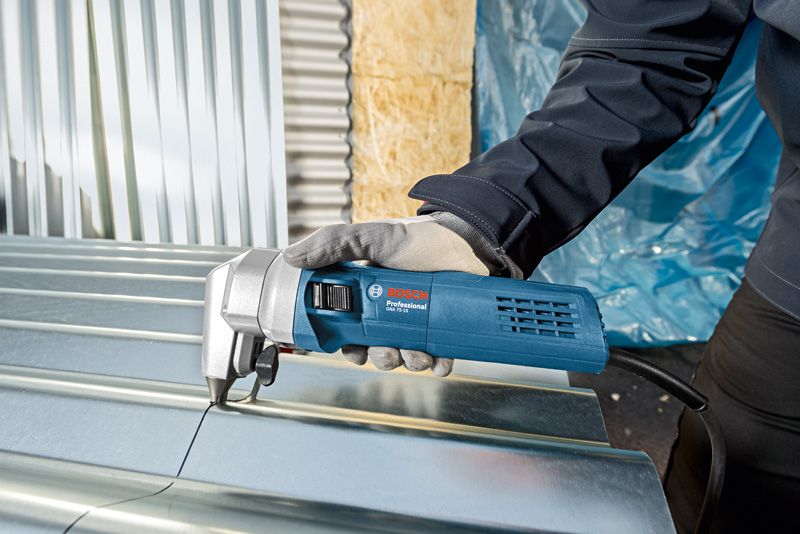

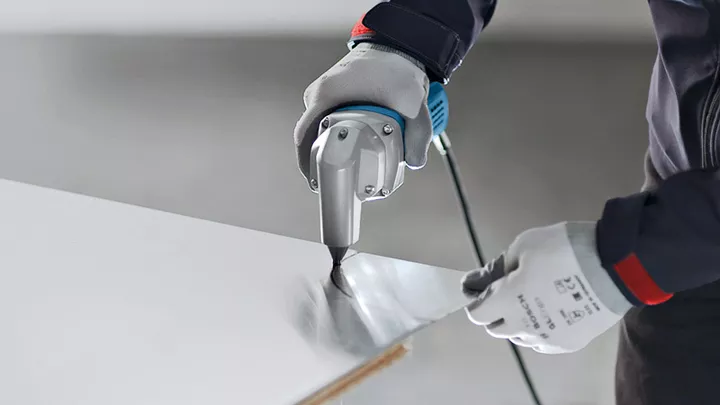

The powerful and handy tool for cutouts of all kinds
- Slim, narrow design for optimum handling
- The powerful and handy tool for cutouts of all kinds
- Working to scribe mark and template easily possible
Functions & key features
with accessory set
0 601 529 400
GNA 75-16 Professional
Your Selection
with accessory set
Order number: 0 601 529 400
Find a local dealerIncluded in this variant
-
PunchOrder number: 2 608 639 027
-
Die plateOrder number: 2 608 639 028
Technical data
Additional data
Cutting capacity in steel (400 N/mm²), max.
1.6 mm
No-load stroke rate
2,600 spm
Voltage
230 V
Material that can be processed
Steel up to 400 N/mm² at 1.6 mm
Cutting track width
5 mm
Pre-drilling for interior cut-outs
21 mm
Smallest radius
40 mm
Stroke rate under load
2,100 spm
Weight
1.8 kg
Cutting capacity in steel (600 N/mm²), max.
1 mm
Cutting capacity in steel (800 N/mm²), max.
0.7 mm
Cutting capacity in aluminium (200 N/mm²), max.
2 mm
