Technical data
| Additional data | |
|---|---|
| Rated input power | 850 W |
| Weight | 2.6 kg |
| Rated speed | 800 / 2,060 rpm |
| Rated torque | 5.2 / 2.0 Nm |
| Chuck capacity, min./max. | 1.5 – 13 mm |
| Max. torque | 36.0 / 15.5 Nm |
| No-load speed, 1st gear | 0 – 1,000 rpm |
| No-load speed, 2nd gear | 3,000 rpm |
| Power output | 430 W |
| Drill spindle connecting thread | 1/2" – 20 UNF |
| Impact rate at no-load speed | 0 – 17,000 / 51,000 bpm |
| Drilling range | |
|---|---|
| Drilling dia. in stone | 20 / 15 mm |
| Drilling diameter in masonry | 20 / 15 mm |
| Drilling diameter in concrete | 18 / 13 mm |
| Drilling diameter in wood | 40 / 25 mm |
| Drilling diameter in steel | 13 / 8 mm |
| Total vibration values (Drilling in metal) | |
|---|---|
| Vibration emission value ah | 3 m/s² |
| Uncertainty K | 1.5 m/s² |
| Total vibration values (Impact drilling in concrete) | |
|---|---|
| Vibration emission value ah | 15 m/s² |
| Uncertainty K | 2 m/s² |
| Total vibration values (Screwdriving) | |
|---|---|
| Vibration emission value ah | 2.5 m/s² |
| Uncertainty K | 1.5 m/s² |
Advantages
The fastest and most versatile tool in its class
- Powerful 2-speed impact drill (850 W) for the fastest work progress
- Sturdy metal gear housing for a long lifetime
- Antirotation mechanical overload clutch for a high level of work safety
Functions
What’s Included in this Package

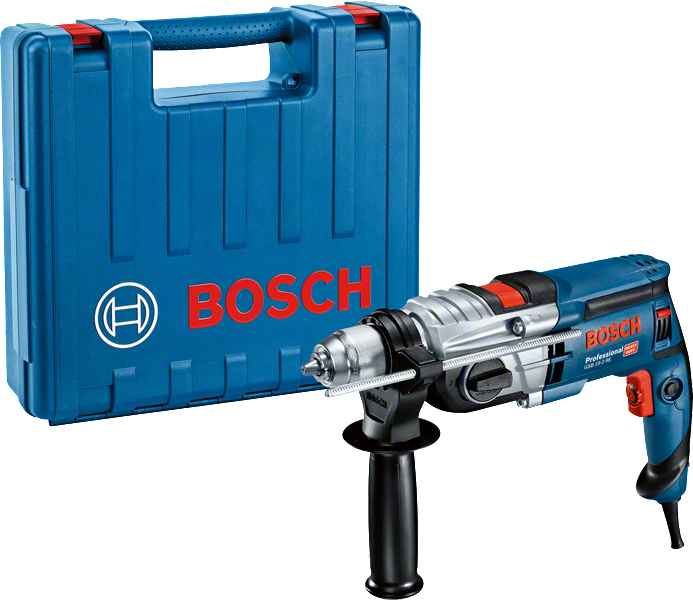

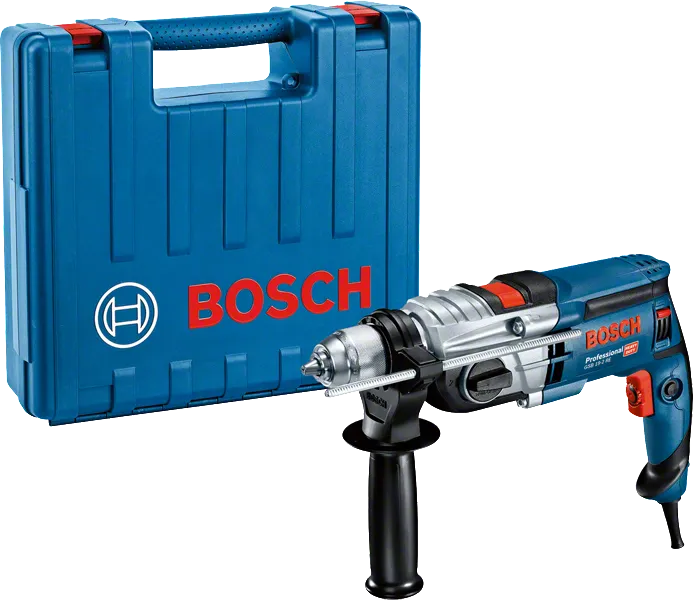

in carrying case with auxiliary handle, Accessory
Order number:
0 601 17B 570
- Auxiliary handle 2 605 025 190
- Carrying case 2 605 438 524
- Depth stop 210 mm 1 613 001 010
- Keyless chuck 13 mm 2 608 572 149
- Voltage 240 V
