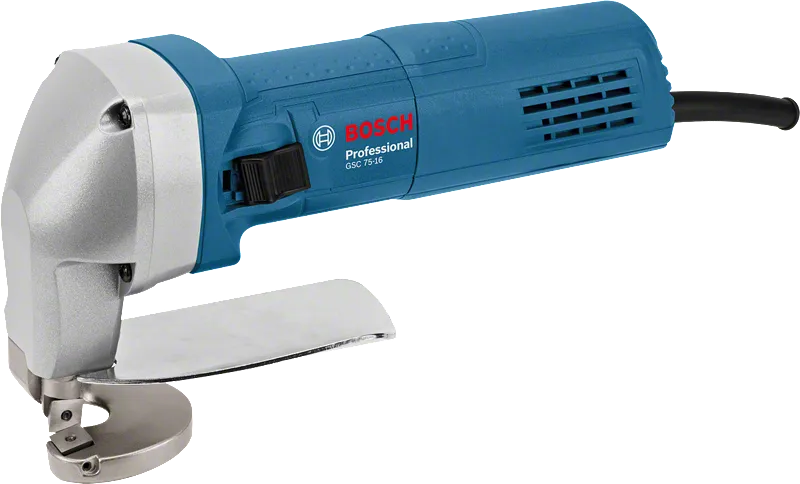

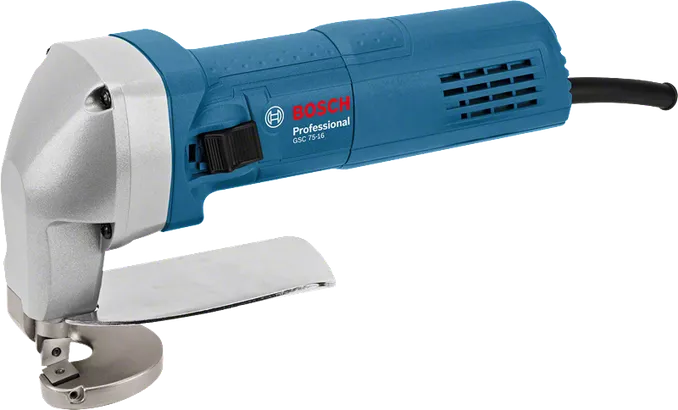

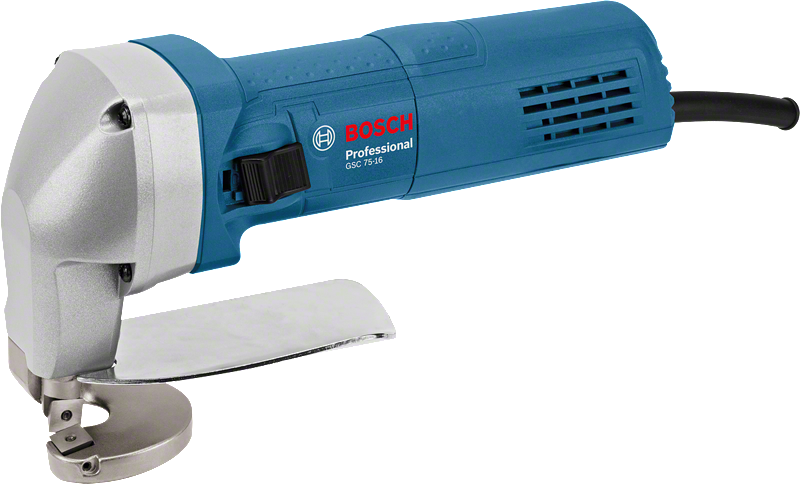

GSC 75-16 Professional
Shear
Powerful and handy for fast and comfortable cutting
- Optimal tool guidance with a small grip circumference
- High cutting speed with low exertion of force
- Excellent manoeuvrability in curves
Functions & key features
with hex key
0 601 500 500
GSC 75-16 Professional
Your Selection
with hex key
Order number: 0 601 500 500
Find a local dealerIncluded in this variant
-
Hex key WAF 3 (spare part number 1 907 950 004)
-
1 x upper and lower blade for metal shearOrder number: 2 608 635 243
Technical data
Additional data
Cutting capacity in steel (400 N/mm²), max.
1.6 mm
No-load stroke rate
5,200 spm
Voltage
230 V
Material that can be processed
Steel up to 400 N/mm² at 1.6 mm
Smallest radius
35 mm
Stroke rate under load
4,000 spm
Weight
1.7 kg
Cutting capacity in steel (600 N/mm²), max.
1.2 mm
Cutting capacity in steel (800 N/mm²), max.
0.7 mm
Cutting capacity in aluminium (200 N/mm²), max.
2.2 mm
* You can find more information about the deviations in the following link:
