For mitre saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 4 options
Number of teeth 5 options
Width of cut (b1) mm 4 options
Choose a pack size 1 Pcs
Ground and sharpened fine carbide teeth for strength, durability and precision
Expansion slots reduce heat for a longer lifetime

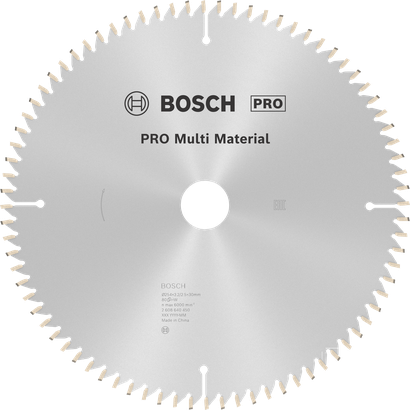

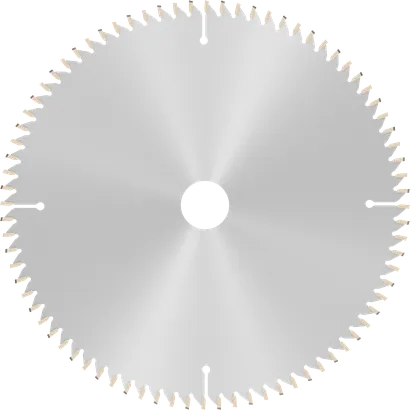

Installing window frames often means you need to cut various materials. You want a circular saw blade that cuts aluminium and other metals as well as plastics, wooden chipboards, and MDF. Try the PRO Multi Material Circular Saw Blade for mitre saws: it will help you get the job done.
Available product options: 13
|
Part number
|
Outer diameter inch
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Pack quantity
|
Price
|
|
|---|---|---|---|---|---|---|---|---|
| 2 608 640 446 | 8 1/2 | 216 | 30 | 2.5/1.8 | 1 Pcs | Find a local dealer | ||
| 2 608 640 451 | - | 254 | 30 | 3.2/2.5 | 1 Pcs | Find a local dealer | ||
| 2 608 640 452 | - | 305 | 30 | 3.2/2.5 | 1 Pcs | Find a local dealer | ||
| 2 608 640 453 | - | 305 | 30 | 3.2/2.5 | 1 Pcs | Find a local dealer | ||
| 2 608 642 202 | 10 | 254 | 30 | 2.7/2 | 1 Pcs | Find a local dealer | ||
| 2 608 642 208 | 12 | 305 | 30 | 2.7/2 | 1 Pcs | Find a local dealer | ||
| 2 608 642 209 | 12 | 305 | 30 | 2.7/2 | 1 Pcs | Find a local dealer | ||
| 2 608 642 210 | 12 | 305 | 30 | 2.7/2 | 1 Pcs | Find a local dealer | ||
| 2 608 642 213 | 14 | 355 | 30 | 3/2.4 | 1 Pcs | Find a local dealer | ||
| 2 608 901 585 | - | 254 | 30 | 2.7/2 | 1 Pcs | Find a local dealer | ||
| 2 608 901 588 | - | 305 | 30 | 2.7/2 | 1 Pcs | Find a local dealer | ||
| 2 608 901 589 | - | 305 | 30 | 2.7/2 | 1 Pcs | Find a local dealer | ||
| 2 608 901 593 | - | 355 | 30 | 3/2.4 | 1 Pcs | Find a local dealer |
out of products
| Part number 2608640446 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | 8 1/2 |
| Outer diameter mm | 216 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.5/1.8 |
| Number of teeth | 60 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 7000 |
| Cutting result | Coarse cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Part number 2608640451 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | - |
| Outer diameter mm | 254 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.2/2.5 |
| Number of teeth | 96 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 6000 |
| Cutting result | Fine Cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Part number 2608640452 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | - |
| Outer diameter mm | 305 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.2/2.5 |
| Number of teeth | 80 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 5000 |
| Cutting result | Fine Cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Part number 2608640453 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | - |
| Outer diameter mm | 305 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.2/2.5 |
| Number of teeth | 96 |
| Tooth shape | HLTCG |
| Max. rotation speed (RPM) | 5000 |
| Cutting result | Fine Cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Part number 2608642202 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | 10 |
| Outer diameter mm | 254 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.7/2 |
| Number of teeth | 100 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 6000 |
| Cutting result | Fine Cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Bore with reduction ring mm | 25 |
| Bore with reduction ring inch | 1 |
| Pin hole/Pitch circle diameter | no |
| Part number 2608642208 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | 12 |
| Outer diameter mm | 305 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.7/2 |
| Number of teeth | 80 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 5000 |
| Cutting result | Fine Cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Bore with reduction ring mm | 20 / 25 |
| Bore with reduction ring inch | 1 |
| Pin hole/Pitch circle diameter | no |
| Part number 2608642209 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | 12 |
| Outer diameter mm | 305 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.7/2 |
| Number of teeth | 100 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 5000 |
| Cutting result | Fine Cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Bore with reduction ring mm | 20 / 25 |
| Bore with reduction ring inch | 1 |
| Pin hole/Pitch circle diameter | no |
| Part number 2608642210 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | 12 |
| Outer diameter mm | 305 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.7/2 |
| Number of teeth | 120 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 5000 |
| Cutting result | Fine Cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 15 |
| Bore with reduction ring mm | 20 / 25 |
| Bore with reduction ring inch | 1 |
| Pin hole/Pitch circle diameter | no |
| Part number 2608642213 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | 14 |
| Outer diameter mm | 355 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3/2.4 |
| Number of teeth | 100 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 4500 |
| Cutting result | Fine Cut |
| Hook angle ° α | -5 |
| Relief angle ° β | 18 |
| Bore with reduction ring mm | 20 / 25 |
| Bore with reduction ring inch | 1 |
| Pin hole/Pitch circle diameter | no |
| Part number 2608901585 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, folded carton, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | - |
| Outer diameter mm | 254 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.7/2 |
| Number of teeth | 100 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 6000 |
| Part number 2608901588 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, folded carton, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | - |
| Outer diameter mm | 305 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.7/2 |
| Number of teeth | 120 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 5000 |
| Part number 2608901589 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, folded carton, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | - |
| Outer diameter mm | 305 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.7/2 |
| Number of teeth | 100 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 5000 |
| Part number 2608901593 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, folded carton, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter inch | - |
| Outer diameter mm | 355 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3/2.4 |
| Number of teeth | 100 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 4500 |
