Impact drills

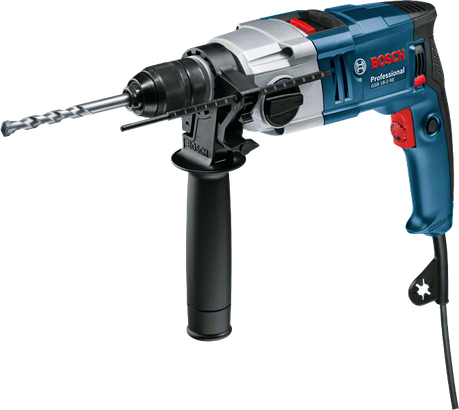

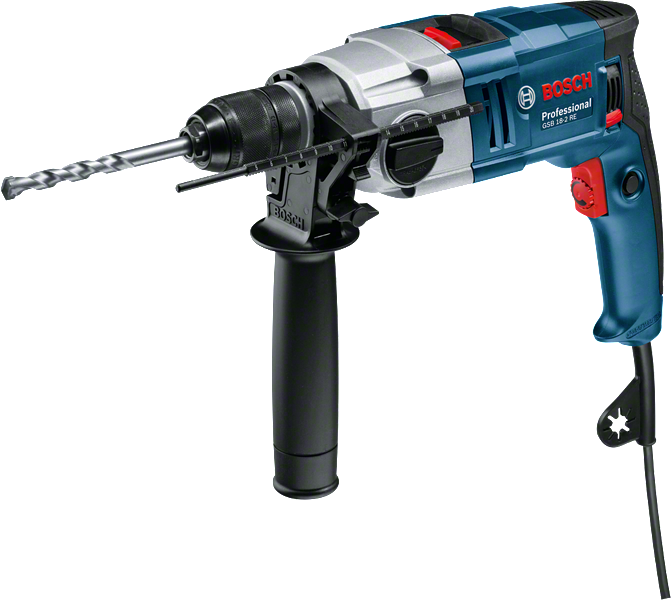

GSB 18-2 RE Professional

Impact Drill

The fastest and most versatile tool in its class

Powerful 2-speed impact drill (800 W) for the fastest work progress
Sturdy metal gear housing for a long lifetime
Anti-rotation mechanical overload clutch for a high level of work safety

Functions & key features

Your Selection

in carrying case with depth stop, Accessory

Change variant

Check availability on location

Find a local dealer

Your Selected Variant

in carrying case with depth stop, Accessory 0 601 1A2 1P0

Find a local dealer

Select a variant

Your Selection

in carrying case with depth stop, Accessory

Order number: 0 601 1A2 1P0

Find a local dealer

Included in all variants

Voltage 240 V
Keyed chuck 13 mm (spare part number 1 617 S00 W5H)
Auxiliary handle (spare part number 1 617 S00 VV1)
Carrying case

Order number: 2 605 438 524
Depth stop 210 mm

Order number: 2 603 001 019

Your selection

Your Selection

in carrying case with depth stop, Accessory

Order number: 0 601 1A2 190

Find a local dealer

Included in all variants

Voltage 240 V
Keyed chuck 13 mm (spare part number 1 617 S00 W5H)
Auxiliary handle (spare part number 1 617 S00 VV1)
Carrying case

Order number: 2 605 438 524
Depth stop 210 mm

Order number: 2 603 001 019

Select Variant

Technical data

Additional data
Rated input power	800 W
Drill chuck, version	Keyed chuck
Bit holder	1/2"-20 UNF
No-load speed, 1st gear	0 – 1,100 rpm
No-load speed, 2nd gear	3,000 rpm
Power output	420 W
Weight	2.6 kg
Impact rate at no-load speed	0 – 17,600 / 48,000 bpm
Rated speed	740 / 1,930 rpm
Rated torque	4.8 / 1.8 Nm
Drill spindle connecting thread	1/2"-20 UNF
Chuck capacity, min./max.	1.5 – 13 mm
Max. torque	24.0 / 14.0 Nm

Drilling range
Drilling diameter in wood	35 / 22 mm
Drilling diameter in concrete	16 / 12 mm
Drilling diameter in steel	13 / 6 mm
Drilling dia. in stone	18 / 14 mm
Drilling diameter in masonry	18 / 14 mm

Total vibration values (Drilling in metal)
Vibration emission value ah	3 m/s²
Uncertainty K	1.5 m/s²

Total vibration values (Impact drilling in concrete)
Vibration emission value ah	17.5 m/s²
Uncertainty K	1.7 m/s²

Total vibration values (Screwdriving)
Vibration emission value ah	2.5 m/s²
Uncertainty K	1.5 m/s²

Total vibration values (Thread-cutting)
Vibration emission value ah	2.5 m/s²
Uncertainty K	1.5 m/s²

Drilling in metal
Vibration emission value ah	3 m/s²
Uncertainty K	1.5 m/s²

Impact drilling in concrete
Vibration emission value ah	17.5 m/s²
Uncertainty K	1.7 m/s²

Screwdriving
Vibration emission value ah	2.5 m/s²
Uncertainty K	1.5 m/s²

Thread-cutting
Vibration emission value ah	2.5 m/s²
Uncertainty K	1.5 m/s²
