Metal Drill Bits

Long HSS Twist Drill Bit Ground

For rotary drills/drivers

Long HSS Twist Drill Bit Ground is for drilling deep holes through metal with maximum precision

  • The extended length makes this long bit capable of drilling deeply
  • 135-degree self-centring split-point tip combines active cutting and perfect centring without wandering
  • Cylindrical shank compatible with three-jaw drill chucks.

Materials

Steel
Cast iron
Choose your specification

Diameter (D) mm 20 options

Working length (L1) mm 16 options

Total length (L2) mm 16 options

Choose a pack size 2 options

Variants overview (35)
Find a local dealer

Long HSS Twist Drill Bit Ground
For rotary drills/drivers

Fits tools of most brands

imageAlt
imageAlt
imageAlt

Cylindrical shank compatible with three-jaw drill chucks.

Drilling Deep Holes with Maximum Precision

Long HSS Twist Drill Bit Ground is for drilling deep holes through metal with maximum precision

  • 135-degree self-centring split-point tip combines active cutting and perfect centring without wandering
  • Precision-ground bit made of HSS enables fast results. No need to pre-punch or pilot drill up to 10-mm diameter
  • Manufactured to DIN 340, drill bit Type N (flute angle), 135 deg, diameter tolerance h 8
View more

Variant Overview

Available product variations: 35

Part number القطر (D) مم طول قطاع العمل (L1) مم الطول الإجمالي (L2) مم Pack quantity Price
2 608 596 809 2.00 56 85 5 قطع Find a local dealer
2 608 596 810 2.50 62 95 5 قطع Find a local dealer

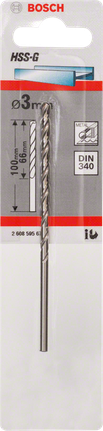

2 608 595 676 3.00 66 100 1 قطع Find a local dealer
2 608 596 812 3.00 66 100 5 قطع Find a local dealer

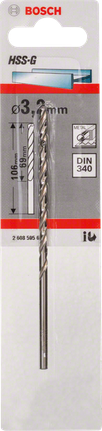

2 608 595 677 3.20 69 106 1 قطع Find a local dealer
2 608 596 813 3.20 69 106 5 قطع Find a local dealer
2 608 595 678 3.50 73 112 1 قطع Find a local dealer
2 608 596 814 3.50 73 112 5 قطع Find a local dealer

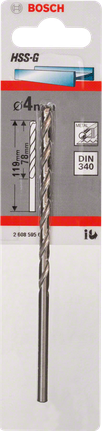

2 608 595 679 4.00 78 119 1 قطع Find a local dealer
2 608 596 816 4.00 78 119 5 قطع Find a local dealer

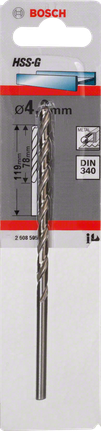

2 608 595 680 4.20 78 119 1 قطع Find a local dealer
2 608 596 817 4.20 78 119 5 قطع Find a local dealer
2 608 595 681 4.50 82 126 1 قطع Find a local dealer
2 608 596 818 4.50 82 126 5 قطع Find a local dealer
2 608 595 682 4.80 87 132 1 قطع Find a local dealer
2 608 596 819 4.80 87 132 5 قطع Find a local dealer
2 608 595 683 5.00 87 132 1 قطع Find a local dealer
2 608 596 820 5.00 87 132 5 قطع Find a local dealer
2 608 595 684 5.50 91 139 1 قطع Find a local dealer
2 608 596 821 5.50 91 139 5 قطع Find a local dealer
2 608 595 685 6.00 91 139 1 قطع Find a local dealer
2 608 596 822 6.00 91 139 5 قطع Find a local dealer
2 608 595 686 6.50 97 148 1 قطع Find a local dealer
2 608 596 824 6.50 97 148 5 قطع Find a local dealer
2 608 595 687 7.00 102 156 1 قطع Find a local dealer
2 608 596 825 7.00 102 156 5 قطع Find a local dealer
2 608 595 688 8.00 109 165 1 قطع Find a local dealer
2 608 596 827 8.00 109 165 5 قطع Find a local dealer
2 608 595 689 9.00 115 175 1 قطع Find a local dealer
2 608 595 690 10.00 121 184 1 قطع Find a local dealer
2 608 596 832 10.00 121 184 5 قطع Find a local dealer
2 608 595 691 11.00 128 195 1 قطع Find a local dealer
2 608 595 692 12.00 134 205 1 قطع Find a local dealer
2 608 596 834 12.00 134 205 5 قطع Find a local dealer
2 608 595 693 13.00 134 205 1 قطع Find a local dealer

out of products
