Expert for Aluminium Circular Saw Blade
For corded table saws
Perfect Cuts in Aluminium
- Perfect Cuts in Aluminium
- Extra Hard MicroteQ teeth from very fine carbide grains (Bosch in-house produced) maximise lifetime and performance
- Performance strengthened by ProteQtion coating that prevents corrosion and reduces friction
- Anti-vibration slots for particularly smooth cutting, considerably less noise and significantly reduced vibration
- HLTCG (High-Low Triple Chip Ground) teeth make the blade robust for cutting in aluminium
- Bore works with or without reduction rings to fit different sizes
Materials
Select options
Outer diameter mm
Select one option from the listed items below
Number of teeth
Select one option from the listed items below
Width of cut (b1) mm
Select one option from the listed items below
Choose a pack size
Select one option from the listed items below
Select options
Outer diameter mm 2 options
Number of teeth 2 options
Width of cut (b1) mm 2.6
Choose a pack size 1 Pcs
Expert for Aluminium Circular Saw Blade
Perfect Cuts in Aluminium
Perfect Cuts in Aluminium
- Performance strengthened by ProteQtion coating that prevents corrosion and reduces friction
- Anti-vibration slots for particularly smooth cutting, considerably less noise and significantly reduced vibration
- HLTCG (High-Low Triple Chip Ground) teeth make the blade robust for cutting in aluminium
View more
Product Options
Available product options: 2
Expand
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Number of teeth
|
Pack quantity
|
Availability
|
|---|---|---|---|---|---|---|---|
| 2 608 644 117 | 190 | Star | 2.6/1.8 | 58 | 1 Pcs | Find a local dealer | |
| 2 608 644 118 | 225 | 30 | 2.6/1.8 | 68 | 1 Pcs | Find a local dealer |
out of products

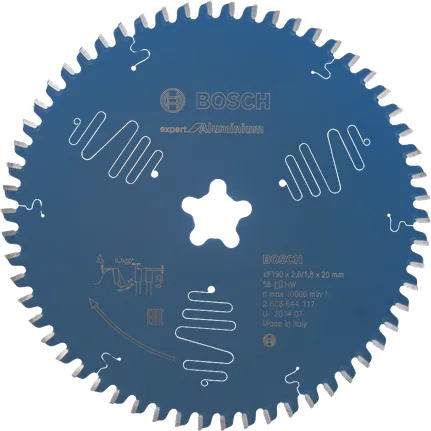

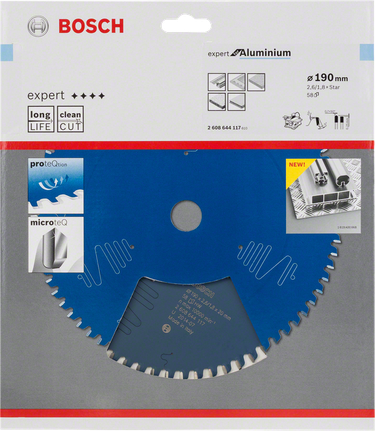

Circular saw blade Expert for Aluminium
Part number 2608644117
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
190
Bore size mm
Star
Width of cut (b1) mm / Base bl. thickness (b2) mm
2.6/1.8
Number of teeth
58
Tooth shape
HLTCG
Max. rotation speed (RPM)
10000
Cutting result
Fine Cut
Hook angle ° α
-5
Relief angle ° β
15

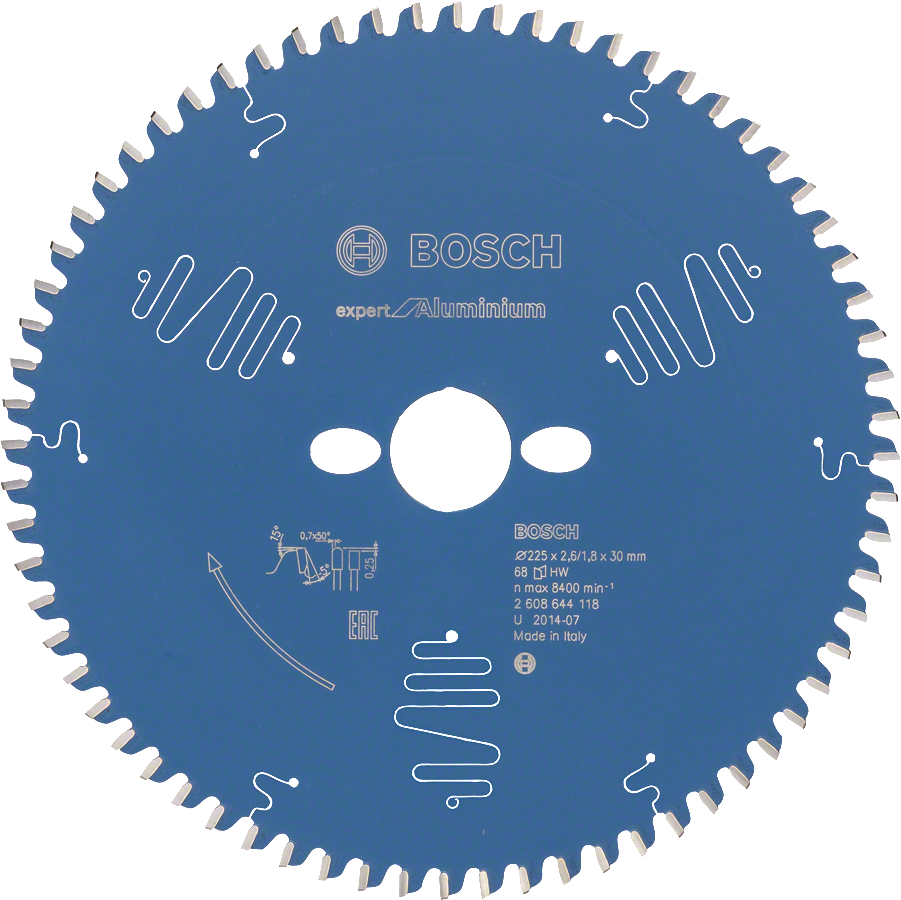

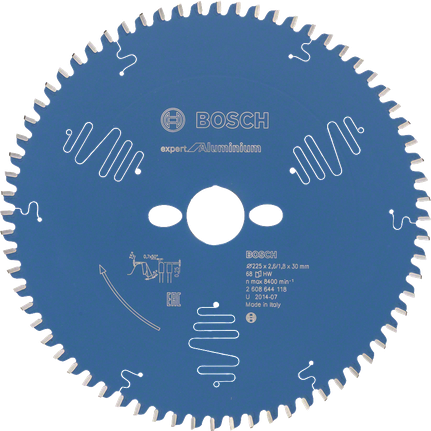

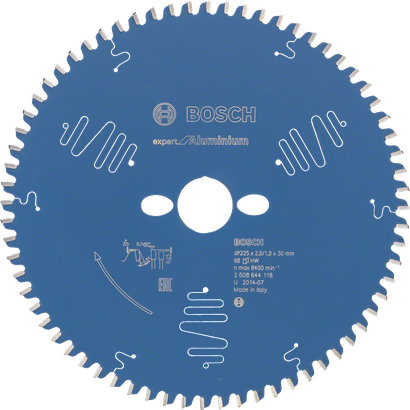

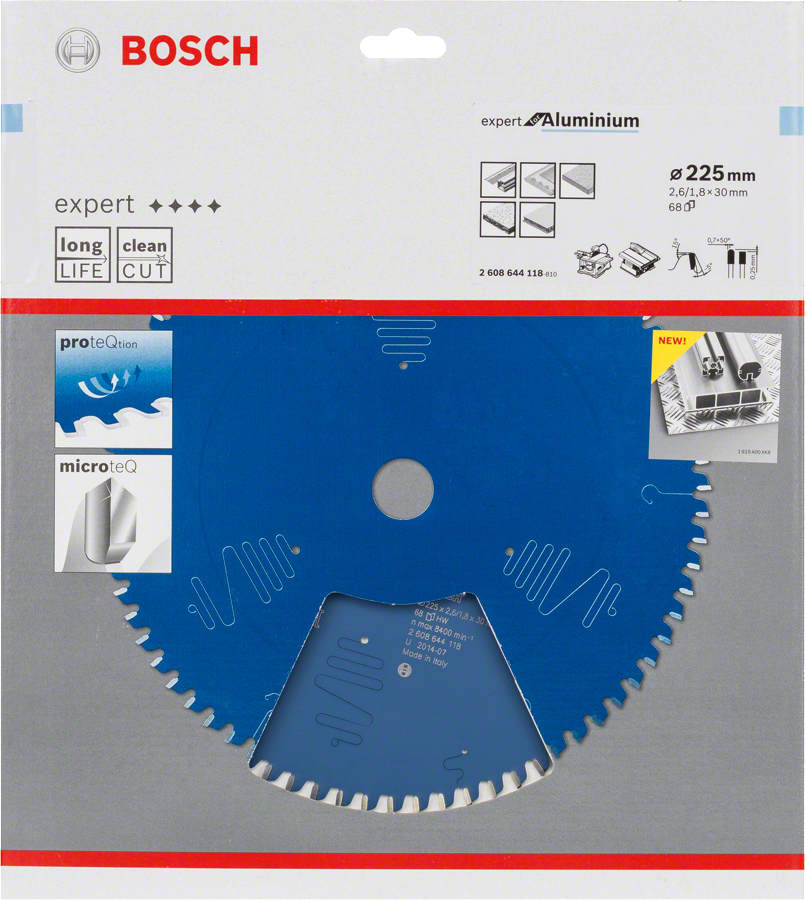

Circular saw blade Expert for Aluminium
Part number 2608644118
Packaging type
Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity
1 Pcs
Details
Outer diameter mm
225
Bore size mm
30
Width of cut (b1) mm / Base bl. thickness (b2) mm
2.6/1.8
Number of teeth
68
Tooth shape
HLTCG
Max. rotation speed (RPM)
8400
Cutting result
Fine Cut
Hook angle ° α
-5
Relief angle ° β
15
Pin hole/Pitch circle diameter
2/7/42 / 2/9.5/46.5 / 2/9/46 / 2/10/60
